Eeprom Programming Equipment

Codex Lite Eeprom Programming Kit

Codex Lite is the replacement of the very popular Omega Eeprom and Orange 5 Programming Kit.

This programmer and PC software enables users to read the eeprom file from the ECU or immobiliser system and save it to the PC program.

The Zed-Bull or AD900Pro eeprom software then uses this file and will read the security pincode and prepare a transponder ready to start the vehicle.

Professionals can also use this eeprom software to edit eeprom files as necessary.

The Codex Lite kit comes with a comprehensive range of eeprom adapters to fit all styles of eeproms used in Automotive applications. In addition, the kit comes with many adapters that will enable eeproms to be read in-circuit, therefore reducing the need to desolder from the boards.

The Codex Lite system connects to your PC via USB, with the software able to be loaded to multiple computers.

Kit Includes :

TMS 370 Adapter
Motorola HC912—9S12 Adapter
Programmer
EEPROM 93CXX, 24CXX, 25XXX, M35080
Motorola MC68HC11P2+MC68HC11PH8-PLCC84
Motorola MC68HC08AS-PLCC52
Motorola MC68HC11KA2/4+MC68HC11KS-PLCC68
Motorola MC68HC(9)08-QFP64
Motorola MC68HC11F1-PLCC68
Motorola MC68HC05H12-PLCC52
Motorola MC68HC11K-PLCC84
Motorola MC68HC11A8/E1/E9/E20+MC68HC11EA9-PLCC52
Motorola MC68HC11KA2/4+MC68HC11PA8-QFP64
Motorola MC68HC11K-QFP80
Programmer to hook, or solder cable. In circuit reading.
Motorola MC68HC11A8/E1/E9/E20-QFP64
Motorola MC68HC05B4/B6/B8/B16/B32 + MC68HC705B16/B32-PLCC52
Motorola MC68HC(7)05E6-SOIC28
Motorola MC68HC05B4/B6/B8/B16/B32 + MC68HC(7)05X16/X32-QFP64
Motorola MC68HC(9)12B32-MC68HC(9)12D60(A)-QFP80
Motorola MC68HC11F1-QFP80
Motorola MC68HC11L6-PLCC68
8 Pin SOIC Clip & Cable

Codex manual

Universal Eeprom Kit

Often the process of creating a transponder from the dump file of an eeprom requires the eeprom to be overwritten with different information. You should NEVER overwrite a customer's eeprom until you have a copy of the original, and are able to put the car back to standard.

Correct Procedure

Read the vehicle eeprom and set to one side (in case a problem occurs)
Select the same type of eeprom from your universal kit
Create a new eeprom with your new transponder information
Check the new eeprom works with the vehicle
Return the original eeprom to your universal box for use on the next vehicle

Contents

Anti-static case
SIOC & DIP applications
35 eeproms
4 X 93C86
2 X 93C66
4 X 93C46
2 X 93C56
2 X 93LC66
3 X 95160
3 X 95080
3 X 95040
4 X 24C08
4 X 24C04
2 X 24C02
1 X ATMLH108
1 X ATMLU738

De-Soldering Kit for
IC Removal

This hot air station enables Eeproms to be removed from circuit boards and then resoldered.

An essential tool.

The pack comes complete with:

Hot Air Gun
Soldering Iron
Extraction System
A Range of Essential Accessories

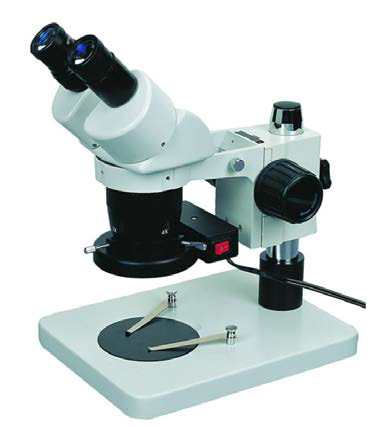

Stereo Microscope

The HM-2RL is an economically priced stereo microscope. The objective turret contains two pairs of objectives and the magnification is changed by rotating the turret.

The system is supplied with a high intensity LED ringlight that provides homogenous shadow free illumination.

A necessity for any Auto locksmith carrying out repair, rework or component replacement on micro-electronic devices.

Please also see the Zed-Prog Eeprom Reader

Soldering Accessories

Magnifying Bench Light
