For Professional Diagnostics & Complex Measurements
More and more workshops are using the KTS series from
Bosch to make diagnosis of complex vehicle systems

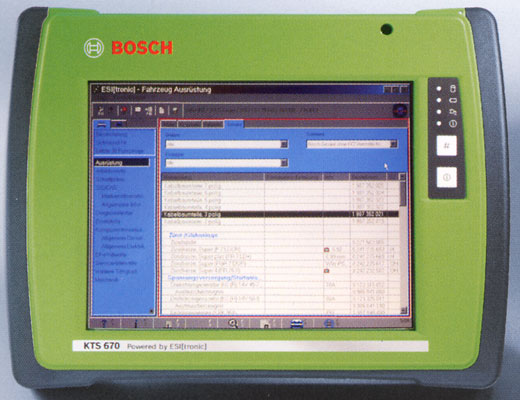

efficient. The mobile and multimedia-capable KTS 670
diagnostics tester meets the highest demands for depth
of testing and ease of operation. It provides practical
functions for every diagnostics case and offers a full set
of equipment for complex measurements and displays
the results clearly.
To order, please contact our sales desk on 01823 328531
Maximum functionality for practical diagnostics
•
The KTS 670 masters all current diagnosis protocols:
•
ISO systems of European vehicles
•
SAE systems for American and Japanese vehicles
•
OBD-CAN protocols for testing state-of-the-art CAN bus systems in new vehicles
•
High speed, middle speed, low speed and single-wire CAN
•
Software-controlled, integrated OBD-exchange adapter (Ubox 2) means that even CAN protocols outside the OBD standard can be diagnosed
•
The system automatically detects the control unit, reads out actual values, fault memory and control unit specific data
Network and multimedia-capable
•
The KTS 670 is network-capable (LAN integrated and WLAN can be upgraded via commercial-type PC card)
•
AWN capability
•
Built-in loudspeaker and headset connection
•
State-of-the-art connectivity options are provided (e.g. DVD drive, video output, PS/2 keyboard)
Full range of equipment for complicated measurements
•
The KTS 670 comes with a convenient 2-channel oscilloscope. Advantage: the technician can view and evaluate, for example, both lambda sensors on one screen
•
The tester comes with a 2-channel multimeter for performing voltage, resistance and current measurements
•
Diagnostics oscilloscope: in ECU diagnostics, parallel to each test step, the signals of the diagnostics cables such as K and L line, CAN and J 1850 can be tested using the diagnostics oscilloscope
•
Range of functions same as KTS 570
Oscilloscope
For a detailed look at the benefit of the oscilloscope, click here.
Workshop-compatible equipment for everyday use
•
Effective protection against impact and water splashes
•

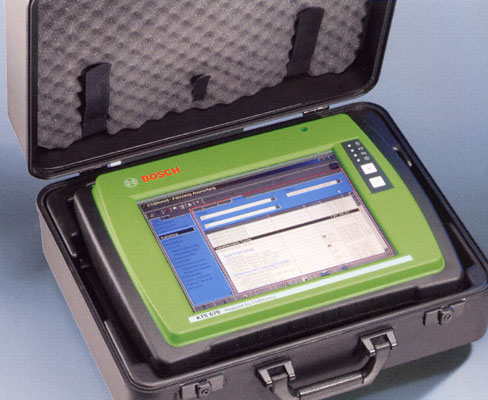

High mobility by means of practical carrying handle
•
Supplied with rechargeable batteries, recharged through, mains power transformer and via the diagnostic socket.
Greater mobility in the workshop and on the vehicle
•
Together with ESI[tronic], the KTS 670 is the professional diagnostic system for vehicles in your workshop and during road tests
•
Screen with ideal resolution for a brilliant display, even where light conditions are poor (high brightness and large angle of view, and a touchscreen)
•
Switch on and off and call up a virtual keyboard via a touch-sensitive key
Reliable application throughout
•
Intelligent and with a secure future due to OBD-exchange adapte
•
Software-controlled by ESI[tronic]
• Simple connection to the vehicle
•
Clear communication via multiplexer and cable adapter recognition: K and L line, SAE and CAN can be connected to all terminals on the OBD connector
•
New: OBD-exchange adapter integrated in the unit
•
Simulation mode can be adjusted individually
•
Continuity tester for locating faults
•
Diode measurement for testing in components
•
Voltage measurement with enhanced measurement functions
•
Current measurement with additional adaptation option of FSA current clamps
•
Universal application for passenger cars and commercial vehicles by means of universal OBD connector, for 14 V and 28 V vehicle electrical systems
Convincing advantages for the workshop
•
New adapter concept “Easy Connect” is supported by the KTS670
•
Automatic recognition of the control unit and reading of error messages
•
All newer passenger car and commercial vehicle models can be tested – even with CAN protocols outside of the OBD CAN standard
•
Guided test and repair instructions from the workshop software ESI[tronic]
Technical Data
PC board :
Operating system Windows XP
1 GB main memory
40 GB hard drive capacity
Display :
12.1” TFT colour display with touchscreen, industrial standard, resulting in outstanding brilliance and wide angle view; resolution SVGA 800 x 600 dpi
Equipment :
Multimedia, built-in speaker and headset connection, installed LAN network card (10/100 Mbit), PCMCIA standard connection enables WLAN connection
ISO 9141-2, K/L lines, flashing code SAE-J1850 VPW (GM, etc.)
corresponds to SAE-J1850 PWM (Ford) ISO 11 519-4 CAN ISO 11898 ISO 15765-4 (OBD)
Highspeed, Middlespeed, Lowspeed and Singlewire CAN
2-channel multimeter :
Accuracy 1% of measured value Voltage, minimum resolution: 0.1 mV, maximum measurement range: 200 V Current, minimum resolution: 0.1 mA, maximum measurement range: 1000 A (special accessories) Resistance, minimum resolution: 100 mOhm, maximum measurement range: 1 mOhm
2-channel oscilloscope :
With 1-channel operation: 10 mega-samples /sec
Connections for :
Multimeter: channel 1: socket yellow (+), blue (-), channel 2: red (+) and black (ground), 2 x USB 2.0, LAN connection, port jacks for contacts for stationary charger, PS/2 for pointing device or keyboard, VGA for external monitor, PCMCIA 2 x type 2 or 1 x type 3, micro-in, line-out, headset
