Bosch KTS670 / KTS570 Oscilloscope |
Curves say more than
diagnostics signals
New diagnostics oscilloscope in the
KTS 670 and KTS 570
Within ECU diagnosis, parallel to each test step, the
signals of the diagnostics cables – such as K and Lline,
SAE and CAN – can be diagnosed via the 2-channel
diagnostics oscilloscope.
| • |
Analysis of the signals on the diagnostics cables |
| • |
Adaptation via the OBD diagnostics cable |
| • |
In this application, the two channels are identical and
potential-bound |
Improved 2-channel measurement oscilloscope
As long as communication with the ECU is functioning
properly, direct analysis of the components with the
oscilloscope aids diagnosis. Adjustment of the trigger
period is improved.
Oscilloscope Specification
| Input resistance : |
1 MΩ |
| Channel 1 and 2 : |
Potential-bound |
| Sample rate : |
10 mega-samples with 1-channel display
5 mega-samples with 2-channel display |
| Trigger : |
Different sources |
| Memory : |
50 signal curves with 2 channels |
Samples
Click the images for an enlarged view.

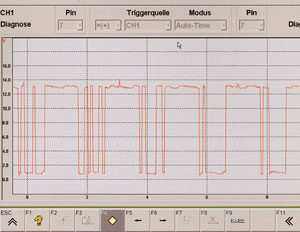

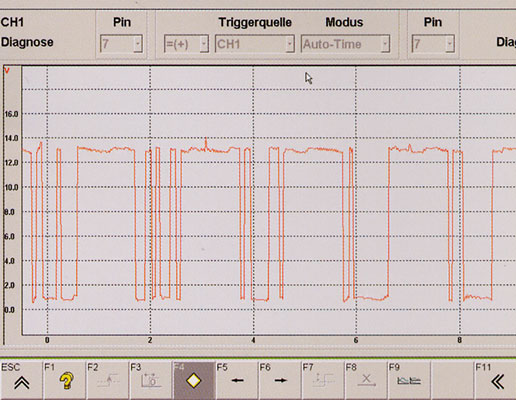

Better error evaluation with the diagnostics oscilloscope

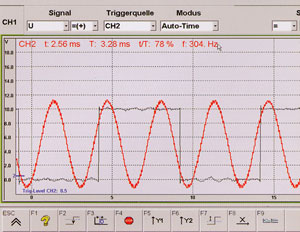

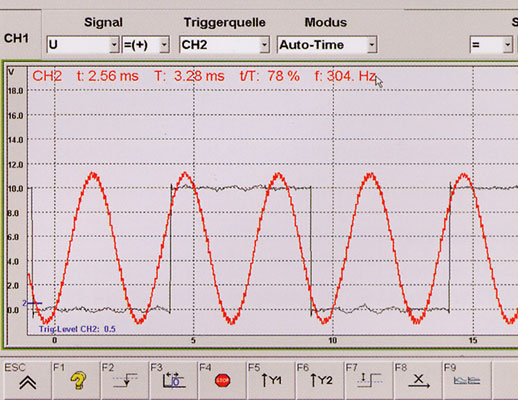

2-channel oscilloscope for optimum troubleshooting

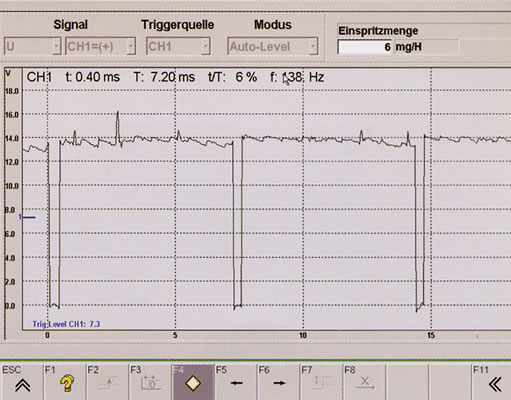

Component signal and actual value at a glance
|
