Zed-Bull Transponder Machine

The Most Advanced Transponder Equipment Available

* Transponder Identification *

* Transponder Cloning *

* Transponder Production *

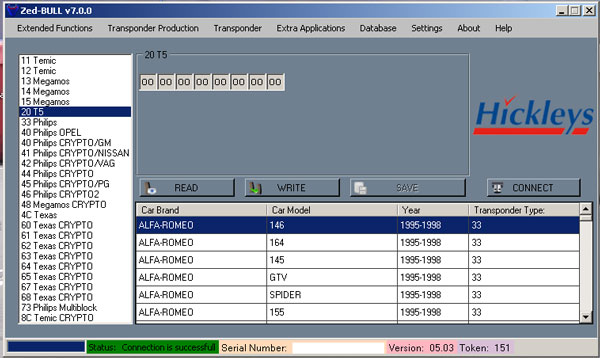

* PC Software & Database *

* Produces Crypto * Transponders from Low Cost Blank Transponders

Features

•	Identification of ALL Transponders, including 8C
•	Shows Lock Status
•	Clone or Copy Fixed 11, 12, 13, 33, 73, T5, 4C to EH2 or TPX1
•	Clone or Copy Crypto 40(some), 41, 42, 44 &45
•	Clone or Copy Crypto 4D to EH2 or TPX2
•	Transponder Production from low cost blanks Produces Blank 40, 41, 42, 44, 45, 46, 73, 61, 62, 65
•	Transponder Test Function
•	Reads Pincode from 33 Renault keys and 45 Peugeot Keys

Optional Features

EEPROM Applications

•	Enables pincodes to be read from immobiliser or ECU by IC or Microprocessor removal
•	Programs transponders ready to start vehicle
•	Detailed immobilser pictures, pin pointing IC to be removed
•	Ideal for the professional Auto Locksmith
•	Please note, EEPROM reading & desoldering equipment also required.

VAG Pincode Reading

•	Reads pincodes direct from the OBD 16 pin socket on: VW, Audi, Seat & Skoda Click here for the full VAG Pincode Reading Application List

Kit Contents

•	Zed-Bull Programmer
•	Security Log-in Card
•	PC USB Cable
•	Power Adapter
•	12V Cigar Lighter Adapter
•	Operating Manual
•	Transponder Box

Specification
Width	285 mm
Height	285 mm
Depth	105 mm
Weight	0.6 kg
Power Consumption	250V 50/60Hz AC
Adapter Type	9-12V DC
Frequencies Covered	125-134Khz
Communication	USB & Serial Port
Temperature Range	-5°c to 40 °c

Comparison of Features

To see how the Zed-Bull compares to other transponder devices on the market, please see the comparison of features here.

Brochure Download

To download the full 8 page brochure for the Zed-Bull Transponder Machine, including the full comparison charts, please click the link below

 Zed-Bull Brochure

Pricing

Zed-Bull Package

•	Transponder Identification
•	Transponder Cloning
•	Transponder Production
•	PC Software
•	Power & USB Leads
•	Instruction Manual
Only - £1295.00

EEPROM Software Database

•	55 Manufacturers
•	Detailed Immobiliser Pictures & Instructions
•	Enables Pincodes to be Read from Immobiliser IC eeprom
•	Programs Transponders Direct to IC
Only - £450.00
	Coming Soon
	EEPROM Programmer & Software to Suit Zedbull Software
	De-Soldering Kit for IC Removal

VAG Pincode Reading Kit

•	Reads Large List of VW, Audi, Seat & Skoda Pincodes
•	Kit Contains Module & OBD Lead
Only - £595.00

Blank Transponders

PCF7931		Blank ID33 Transponders for 11, 12, 13, 33, 73, T5
Only - £2.45		QTY :

PCF7935		Blank Transponders for 40, 41, 42, 44, 45
Only - £3.75		QTY :

PCF7936		Blank Transponders for 46
Only - £3.50		QTY :

Pre-Coded 41		Special Transponder for Zed-Bull for cloning ID41 transponders
Only - £8.50		QTY :

Pre-Coded 44		Special Transponder for Zed-Bull for cloning ID44 transponders
Only - £8.50		QTY :

Pre-Coded 45		Special Transponder for Zed-Bull for cloning ID45 transponders
Only - £8.50		QTY :

Crypto 60		Blank transponder for 61, 62 and 65 (AKTP10)
Only - £3.24		QTY :

Z4C		Special Glass Transponder for cloning 4C Texas Fixed Code Transponders (For Zed-Bull Only)
Only - £6.00		QTY :

Do you own An AD90?

If you own an AD90, we are offering a fantastic part exchange program for your old unit. For more details, click here.
