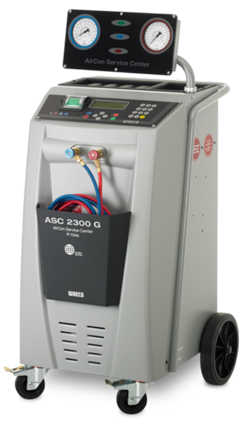

Waeco ASC2300G R134A Air Con Station

Extended Warranty Waeco ASC2300G R134A Air Con Station
Only £3575.00 + VAT
P/No. : asc2300g
QTY :

Waeco ASC2300G R134A Air Con Station

Fully automatic service unit for R134a A/C systems with extra-large, 21 kg charging cylinder for servicing a/c on cars and trucks.

Humidity-free storage and feeding system for fresh oil and UV additive, data printer and dust cover included as standard. Prepared for retrofitting of a gas analyser.

  • Fully automatic A/C service – saves time and effort in the workshop
  • Humidity-free storage and feeding system for fresh oil and UV additive
  • Extra-large 21 kg charging cylinder capacity – suitable for A/C service on cars and trucks
  • USB interface for convenient software update or export of service data
  • Integrated refrigerant charging and recovery amount management
  • Database with personalized charging amount for 100 different vehicles
  • Includes pre-installed software for A/C flushing

Designed for fully automatic A/C service on cars and trucks, the WAECO ASC 2300 G minimizes operator effort and throughput time. Prior to system start the operator can read the oil level from the display. Afterwards, the service unit automatically performs all required processes: refrigerant recovery and recycling, residual pressure measurement, used oil drainage, evacuation, leak check, fresh oil and UV additive charging, refrigerant charging with charging amount compensation of the service hoses.

For added safety, the ASC 2300 G can be upgraded with an optional gas analyzer which meets the SAE standard.

Downloads

Brochure

Technical Specification

General

SKU number 9103301887
For Refrigerant R134a
Input voltage (AC) 220-240 V
Input frequency 50/60 Hz

Recovery / Recycling

Purity of recovered refrigerant (SAE J 2099) Yes
Refrigerant recovery rate 30.00 kg/h
Vacuum pump capacity 5 cars/h
Performance of the hermetic compressor 0.32 kW
Dry filter capacity 150.00 kg
Refrigerant recycling rate Min. 95 %
Can be used as diagnosis tool No

Charging 21.00Kg
Processes

Refrigerant analysis External / Optional
Recovery/recycling Automatic
Purging of non-condensable gases Automatic
Purging of used oil Automatic
Evacuation Automatic
Vacuum check Automatic
Nitrogen leak check No
Injection of leak detection additive Automatic
Injection of oil into the A/C system Automatic
Refrigerant charging Automatic

Control Panel

High/low pressure indicated by Manometer
Vacuum indicated by Display
Total process control indicated by Display
Option to set the evacuation time Yes
Protocol print-out possible Yes
