Waeco ASC3300G R134A Air Con Station

Extended Warranty Waeco ASC3300G R134A Air Con Station
Only £5545.00 + VAT
P/No. : asc3300g
QTY :

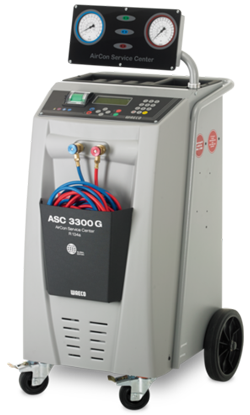

Waeco ASC3300G R134A Air Con Station

High-volume, fully automatic A/C service unit – specially designed for buses, trains, helicopters and custom applications. Humidity-free storage and feeding system for fresh oil and UV additive, data printer and dust cover included as standard.

  • Fully automatic A/C service – saves time in the workshop and prevents costly downtimes
  • Comes with high-capacity vacuum pump and additional fluid pump – designed for large vehicles
  • Heated charging cylinder for high-speed charging – heat-up also possible during the charging process
  • Optional heat belt for faster recycling saves up to 80 % work time during A/C service
  • Heavy-duty design with 8-bearing weighing platform – no calibration needed
  • Humidity-free storage and feeding system for fresh oil and UV additive
  • Approved by Deutsche Bahn, EvoBus, OMNIplus, Valeo

Save valuable time when servicing the air conditioning on large vehicles such as buses and trains. Since downtime is extremely costly for operators, speed and reliability are vital. Key service tasks such as refrigerant recovery, evacuation and refrigerant recharging need to be performed within a tight timeframe.

The WAECO ASC 3300 G perfectly meets these requirements. Featuring a 192 l vacuum pump and an extra fluid pump, the fully automatic service unit guarantees fast and efficient refrigerant recharging. It can be upgraded with a heat belt to save a further 80 % work time.

Downloads

Brochure

Technical Specification

General

SKU number 9103301892
For Refrigerant R134a
Input voltage (AC) 220-240 V
Input frequency 50/60 Hz

Recovery / Recycling

Purity of recovered refrigerant (SAE J 2099) Yes
Refrigerant recovery rate 30.00 kg/h
Vacuum pump capacity 192l/min
Performance of the hermetic compressor 0.32 kW
Dry filter capacity 150.00 kg
Refrigerant recycling rate Min. 95 %
Can be used as diagnosis tool No

Charging 26.00Kg
Processes

Refrigerant analysis External / Optional
Recovery/recycling Automatic
Purging of non-condensable gases Automatic
Purging of used oil Automatic
Evacuation Automatic
Vacuum check Automatic
Nitrogen leak check No
Injection of leak detection additive Automatic
Injection of oil into the A/C system Automatic
Refrigerant charging Automatic

Control Panel

High/low pressure indicated by Manometer
Vacuum indicated by Display
Total process control indicated by Display
Option to set the evacuation time Yes
Protocol print-out possible Yes
