Texa Axone 4 Mini Car & Light Commercial Package

Texa Axone 4 Mini Car Package

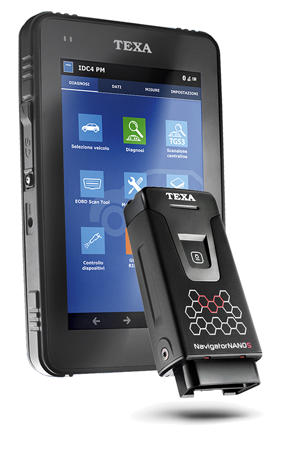

Texa Axone 4 Mini Car & Light Commercial Package

The Car Mini specialist package comes with the Navigator Nano interface which in turn communicates to the Axone 4 Mini via Bluetooth.

The Axone 4 Mini has a 7" touch screen, robust and proven history which when used with the Texa IDC5 software to give a modern feel and easily navigated software platform.

Package Contents

  • Axone 4 Mini Car Including IDC5 PM Car software
  • Navigator Nano S
  • Storage case
  • 1st Year's Annual Car Texpack
Only £1995.00 + VAT
P/No. : texaukd2420
QTY :
Lease From £10.82 Per Week
Click Here for Details

Texa Navigator Nano STexa Navigator Nano S

Navigator Nano S is the most advanced wireless device for cars and light commercial vehicles fitted with OBD sockets. The advanced miniaturisation techniques used have allowed TEXA to reduce the tool size and weight by more than 85%, compared with a traditional solution, whilst leaving depth of the diagnosis potential unchanged.

The Navigator Nano S belongs to a new generation of devices characterised by three key elements:

  • Reduced dimensions: increased practicality due to reduced size and ergonomic form, the Navigator nano plugs directly into the 16 pin diagnosis socket
  • Wireless: providing Bluetooth communication to the Handheld or PC display with power from the diagnostic socket, the technician can work freely around the vehicle
  • Self-diagnosis for cars and light commercials: the TEXA IDC5 operating software provides diagnosis software and information for a comprehensive range of vehicles and systems

The Navigator nano has been developed according to the TEXA philosophy of two-unit diagnosis, to provide practical and versatile solutions, and can be used with a range of TEXA display units including AXONE 4 & AXONE MINI. These characteristics allow the technician to gain the maximum benefit from their diagnostic tools, reducing the time required to complete the repair process.

The Navigator nano operates in conjunction with IDC4 software, the TEXA operating platform that combines diagnosis potential with a database of supporting information. The technician in fact has a whole range of additional information at his disposal, such as wiring diagrams, technical data sheets, component sheets and bulletins, specifying the correct procedures to assist in repair the most common failures.

If the workshop has an internet connection, it can access the "Solved problems" search functions powered by Google and the TGS2 vehicle system scan.

Technical Specification

Processor CORTEX M3 STM32F103 72MHz
Memory External SRAM: 8 MBit organised in 512 K x 16 bit
External NAND flash memory: 2 Gbit on 8 bit bus
Internal Battery Lithium polymer, single cell, 3.7 V 250 mA/h
Vehicle Electrics 12 VDC vehicle systems
External Power Supply 8 ÷ 16 V
Wired Connection Virtual RS232 via USB 2.0 device
Wireless Connection Bluetooth Class1
Electronic Switching 2 way, 13 independent positions
Diagnostics Connector OBD
Environmental
Operating temperature 0 ÷ 50 °C
Storage temperature -20 ÷ 60 °C
Operating relative humidity 10% ÷ 80% non-condensing
Dimensions 51x23x100 mm
Weight 72 g
Protocols Supported Blink codes, K, L (with 60mA current protection) ISO 9141-2, ISO 14230, CAN ISO 11898-2, CAN ISO 11898-3, SAE J1850 PWM and VPW
Standards Directive: 1999/5/EC
Safety: EN 60950-1
Electromagnetic Compatibility: EN 301 489-1, EN 301 489-17
Radio systems: EN 300 328-2

Texa Nano S PC Pack Car & Light Commercial

The Nano PC Package enables customers to use their existing PC or laptop instead of the Axone Mini or Axone Nemo to control the IDC5 software.

Package Contents

  • Navigator Nano S
  • IDC5 plus car software for PC
  • OBD extension cable
  • Storage case
Only £1980.00 + VAT
P/No. : texaukd2410
QTY :
Lease From £10.74 Per Week
Click Here for Details
