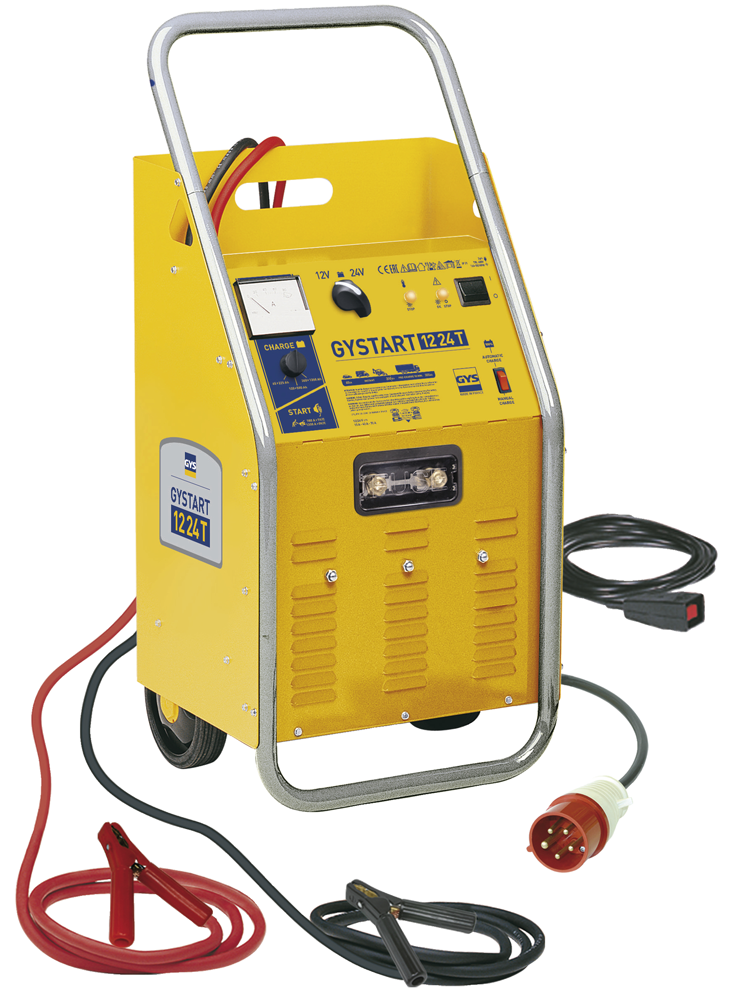

GYSStart 1224T Battery Charger

GYSStart 1224T Battery Charger

The Gystart 1224T is a three-phase machine that permits to abtain a filtered current near the linear current.

Charger

Automatic loading : in “ Electronic control” position, this device loads without supervision and it assures a better protection of the batteries and of the on-board electronic of the vehicle. It can be connected permanently thanks to a regulation by indication of loading. Diagnostic indicator : loading / battery loaded.

Manual loading : loading with supervision and manual stop by the user. It permits a reloading without voltage limitation in order to restore discharged and sulphated batteries or to make rapid

Starter

In «Electronic control» position, it protects the vehicle against overvoltage thanks to an automatic monitoring system which controls the excess voltage output during the start. With remote control switch.

• Mains supply protection
• Protection against short circuit, reversal polarity and over voltage
• Copper winding
• Cables 35 mm², 2,50 m. Brass clips
