Zenith Z5 Automotive Diagnostic Scan Tool

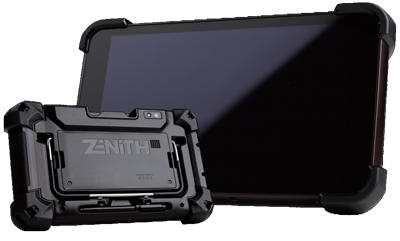

Zenith Z5 - Automotive Diagnostic Scan Tool
The Zenith Z5 is the latest premium diagnostic tool from EZDS, the manufactures of the Gscan.
Widely renowned in the industry as the go-to scan tool for Asian vehicles, the Gscan range have embedded themselves as the a must have tool in any workshop.
Now, with the addition of very strong coverage on European vehicles as well as a reliable rugged tablet interface, the Zenith Z5 offers truly outstanding value for money and coverage
Diagnostics Features
Simple, Yet Intuitive Layout
Zenith Z5 offers simple iconic main menu for easier and quick access to desired functions. With 3 available display mode, user can customize the theme and button locations.
Service Function
Time is money. Z5 offers shortcuts to the most frequently used functions in the workshops to save time for technicians to navigate through the original menu system.
Data Log & Feedback System
In case of communication or function error, user can log the bi-directional data transmission between the tool and vehicle control systems. This log can be sent to the engineers through the log transfer function. The given data log files will be analyzed, feedback will be provided, and a patch file update is provided within 24hours during workdays when necessary.
Pre & Post Diagnostic Report
Z5 offers easy creation of diagnostic report with Pre-scan and Post-scan result. Not only you can save the reports as PDF file in the internal memory, also with the help of its robust network connectivity, you can print the report directly with a Bluetooth printer or send them to desired E-mail address.
Make Auto Selection
Zenith Z5 acts as a J2534 Pass-thru device for multiple carlines with CAN-Bus, KWP2000, and ISO9141 protocols, supporting J2534 programming and diagnostics. (Exceptions may apply)
Quick System Search
‘System Search’ option automatically scans all the vehicle systems, reports fault codes, and provides access to advanced diagnostic functions in each detected systems.
J2534 Pass-thru
Zenith Z5 acts as a J2534 Pass-thru device for multiple carlines with CAN-Bus, KWP2000, and ISO9141 protocols, supporting J2534 programming and diagnostics. (Exceptions may apply)
Fast & Responsive Graphing Mode
Z5 offers fast yet intuitive graphing mode which instantly self-adjusts maximum and minimum scale; enabling the users to more accurately observe and compare live data.
Full Text Description
No more acronyms and cutting of significant texts. Z5 offers the long-text DTC descriptions in full screen, so you get all the information you need.
Smart Update
Z5 offers quick and easy software update with its strong network connectivity. Previous or the latest software versions for each carline can be downloaded directly from the server, per user preference.
Technical Specification
| Category | Specifications | ||
|---|---|---|---|
| CPU | Octa Core Processor 2.0 GHz | ||
| Operating System | Android 9 | ||
| System Memory | 3G / Internal 32G | ||
| External Memory | Micro SD Card | ||
| LCD | 8.0 inch FHD (1920 x 1200) | ||
| Input Devices | Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -) | ||
| Camera | 8 megapixel auto-focus with LED ash | ||
| Sound | Loud Speaker 1 microphone; 3.5 pi standard audio jack | ||
| Rechargeable Battery | Li-ion 3.8V 3200 mAh | ||
| Operating Voltage | DC 9 ~ 30V | ||
| Sensors | Ambient Light, Proximity, Gyroscope, Accelerometer | ||
| Dimension | 225 x 136 x 33 mm | ||
| External Port | USB 2.0 1ea, USB 3.0 2 ea | ||
| Network | RJ45 Ethernet, Wifi 802.11 a/b/g/n, Bluetooth 4.2 | ||
AC/DC Adapter
| Category | Specifications | ||
|---|---|---|---|
| Input Power | 100 ~ 240V AC | ||
| Frequency | 50 / 60 Hz | ||
| Input Current | 1.5 A | ||
| Output Voltage | 12V DC | ||
| Output Current | 3.2 A | ||
Kit Contents
- Zenith Z5
- OBD2 Cable
- Mains Charger
- USB Connection Lead
- Hand Strap
- 12 Months Software Updates
