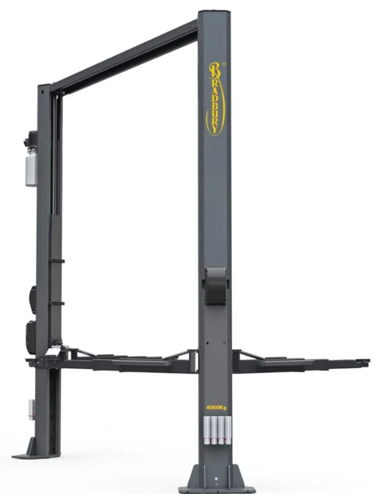

Bradbury H241G 2 Post Vehicle Lift
Bradbury H241G 2 Post Vehicle Lift
The Bradbury H241G series is a good quality, 4-tonne, electro-hydraulic lift with an overhead gantry, leaving the floor completely clear – ideal for moving transmission jacks or oil drainers under the suspended vehicle.
Available as an option is a high gantry extension kit (H2411/3HGEXTENSION), making the lift suitable for taller vehicles in addition to cars and vans up to MWB.
Available in both 1 Phase or 3 Phase, this is a great choice for most workshops!
- 4 tonne lifting capacity
- 93mm minimum height
- 2005mm maximum lifting height
- Baseless with overhead gantry
- Electro-hydraulic operation
- 2415 - 2665mm drive through width
- 50 seconds lifting and lowering time
- 600mm/1250mm arm length min-max
- 3kW motor size
- 3 phase or 1 phase
£4495.00 + VAT
P/No. : brah241g
Technical Specification
| Lifting Capacity | 4000kg |
| Lifting/Lowering Time | 50 seconds |
| Minimum Height | 93mm |
| Maximum Height | 2005mm |
| Front Minimum/Maximum Arm Lengths | 600mm / 1250mm |
| Rear Minimum/Maximum Arm Lengths | 600mm / 1250mm |
| Motor Size | 3kW |
| Drive Through Width | 2415mm - 2665mm |
| Operation | Electro-hydraulic |
Downloads
