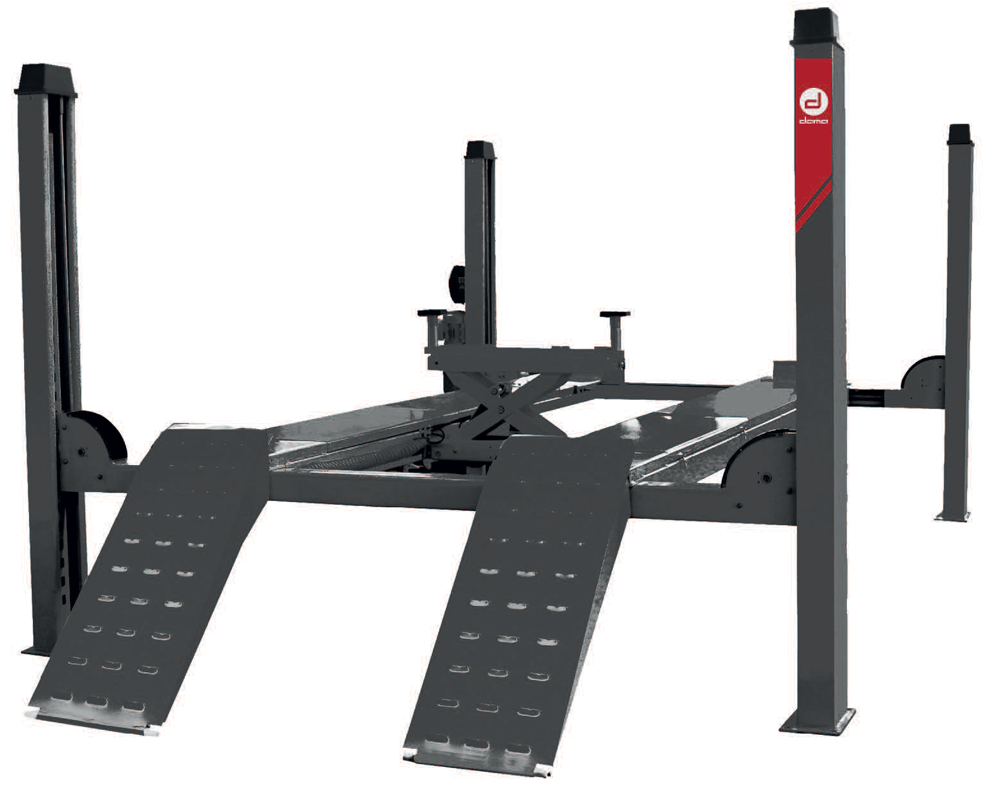

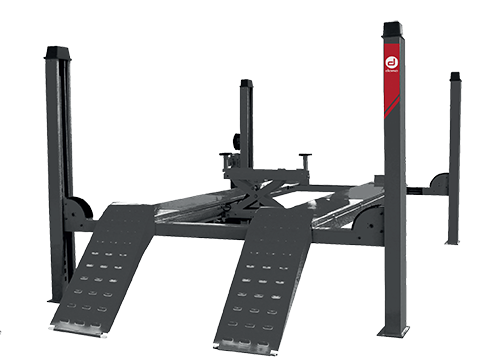

Dama HDM5000 4 Post Lift
Dama HDM5000 4 Post Lift
The Dama HDM5000 is the latest in a series of high quality 4 post lifts made available by Dama rl in Spain. This 5 tonne capacity, long platform 4 post lift is ideal for service work on everything from a car through to a long van or small truck. In addition the built in rear slip plates and removable front recess covers makes it perfect for wheel alignment. Cars, EV’s, loaded Vans and trucks can easily be approaching 5t and choosing the right capacity now and for the future is important. The HDM5000 boost some outstanding features including 5t capacity, 5230mm platform length, 2900mm between the posts, adjustable platform width, electronic decent, air locking and available in 230v & 400v, and as usual all backed by our parts & labour 2 year warranty.
Features
- Service and wheel alignment 4 post lift
- Built in lockable rear slip plates
- Removable front recesses with variable turnplates positioning (turnplates optional)
- 5 tonne capacity
- 5230mm long platforms
- Generous 2900mm between the posts ideal for wheel alignment
- Air locking for precise levelling and rigidity
- Electro-hydraulic operation
- Electronic decent system
- Safety locking system
- Available in 230v single phase and 400v 3 phase
- 2 year warranty.
- Optional Air and manual operated jacking beams available in 2t, 2.6t, 2.8t and 3t
Technical Specification
| Maximum Weight | 5000Kg |
| Maximum Height | 1900mm |
| Lifting Time | 120 seconds |
| Total Width | 3204mm |
| Total Height | 2370mm |
| Motor Power | 2.2Kw 400V / 3Ph |
| Weight | 1350Kg |
| Warranty | 24 Months |

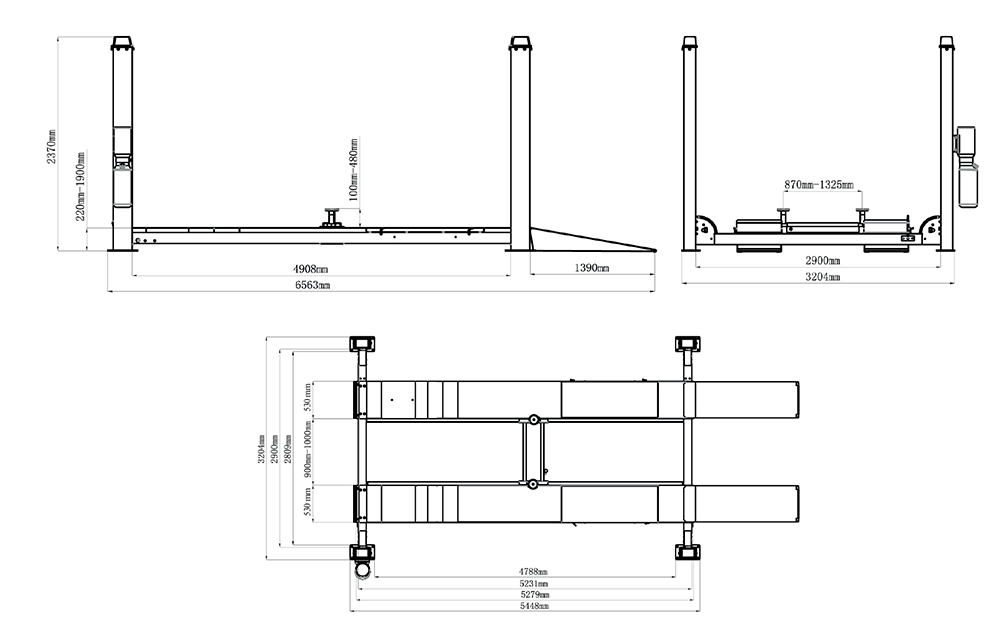

Drawings
Downloads
