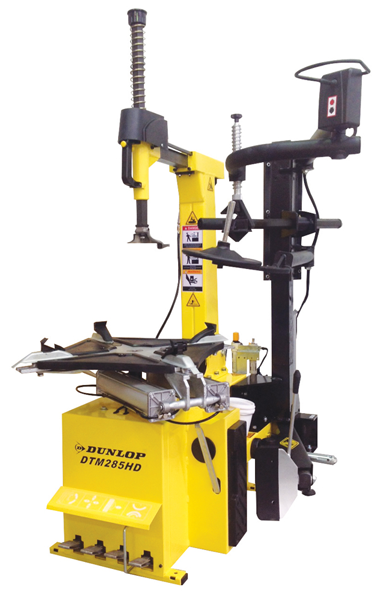

Dunlop DTM285HD Tyre Machine

Dunlop DTM285HD Leverless Tyre Machine with ART390 3rd Arm Assist

Dunlop DTM285HD Tyre Machine with ART390 3rd Arm Assist

Top of the range Dunlop tyre changer, designed for high usage in a modern day busy tyre shop or garage.

Operation with a uniquely designed, pneumatically operated demount head, assiting in the removal of the tyre with ease. It offers a twin speed, 3 phase turntable operation, enabling more control on the removal and refitting of tyres, and comes complete with an alloy wheel protection cover for the turntable.

The ART390 third arm assist helps with run flat and low profile tyres.

P/No. : dundtm285hd
Currently Unavailable

Technical Specification

Clamping capacity (outside/rim diameter)  12″ – 27″
Clamping capacity (inside diameter)  13″ – 28″
Rim width  3″ – 13″
Maximum wheel diameter  1040mm
RPM  7 RPM / 13 RPM
Operating pressure  8 – 10 BAR
Air required  Yes
Bead breaker force  2,800KG
Electrical supply  380/415 Volt (3 Phase)
Size of demount shaft  41mm
Size of slider arm  55mm


DTM285HD Brochure
