EV Charging Equipment

Delphi Charge Mode 2 Cables
Only £294.00 + VAT
P/No. : delphiplv10005-12b1
QTY :

Delphi Charge Mode 2 Cables

Delphi Technologies mode 2 charging cables fit directly into the charging inlet of a battery electric vehicle/plug-in hybrid vehicle (BEV/PHEV) and the existing electrical infrastructure to provide a safe alternative charging option at home or away.

Proven durable EV charging cables that last

Delphi Technologies Charge Mode 2 Cables are in serial production at multiple major OEMs. Tested according to automotive Standards (LV124), our proven design offers reliability and performance that exceed well beyond compliance. The In-Cable Control- and Protection Device (IC-CPD) allows drivers to safely charge their battery-powered electric vehicle (BEV) or plug-in hybrid electric vehicle (PHEV) without the need for a dedicated circuit or EV charging station.

Our robust design of the in-cable control (ICC) box make it not only drive over resistant* (acc. IEC 62196-1) but able to handle extreme temperatures ranging from -30°C (-22°F) to +50°C (122°F), all the way up to +70°C (158.0°F) in storage. With superior water sealing protection* of immersion in 1 meter, well beyond the 5cm standard* (IP67 High sealing performance (1 meter)), the IC-CPD is durable enough for anything nature throws at it.

And to ensure a service life that lasts just as long as the expected battery life of a vehicle, our IC-CPD is designed to last over 10,000 mating cycles- That adds up to a service life of 9 years if used 3 times a day!

Safe EV charging to protect you and your vehicle

When working on anything electrical, safety is our top priority. That’s why Delphi Technologies Charge Mode 2 Cables are fully compliant with the IEC 62752 standard and protect you and your vehicle from dangerous electrical faults that can cause damage, shock, fire, or worse.

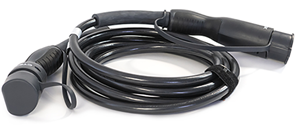

CTEK 40-324 EV Charging Cable

CTEK 40-324 EV Charging Cable

Only £307.00 + VAT
P/No. : ctek40324
QTY :

CTEK Electrical Vehicle (EV) charging cables give you faster charging and guaranteed performance, so your Electric Vehicle is ready to go when you are.

Fast, easy and reliable Electric Vehicle charging. Mode 3, Type 1 to Type 2, up to 32A, 1 Phase, up to 7.4kW, 5m.

CTEK EV charging cables are made from a tough, non-flammable plastic which conforms to V-0 specifications. They’re fitted with durable, heat spreading, synthetic resin plugs so they won’t crack and are completely safe to handle. Each cable comes with a two-year warranty and is CE-SGS approved.

Features

  • Formed from (V-0) non-flammable plastic
  • Protection class IP44
  • CE-SGS approved
  • Two-year warranty

Technical Data

Ambient operating temperature -40 °C to +90 °C
Charging station connector Type 2
Charging current Up to 32 A
Cable area 3 × 6,0 mm² (L1, L2, L3, Mass + N) and 1 x 0,5 mm²
Cable color Black
Number of phases 1 Phase
Vehicle connector Type 1
Charging power Up to 7.4 kW
Cable material V-0 non-flammable plastic
Cable length 5 m
Cable cap Yes
Cable type Straight cable
Cable net weight 3.5kg
Cable storage bag Yes
Cable compliance CE; SGS; IP44
Cable compliance text CTEK charging cables must only be used to charge electric cars (EVs) to Mode 3 charging stations in accordance with the ISO 17409 standard and IEC standard 61851. Never use an extension cord with a charging cable.
Connector compliance IEC 62196-2; IEC 61962-2
Packaging weight 4.0 kg
Packaging size (L x W x H) 350 x 380 x 100 mm
Warranty 2 years
CTEK 40-322 EV Charging Cable

CTEK 40-322 EV Charging Cable

Only £307.00 + VAT
P/No. : ctek40322
QTY :

CTEK Electrical Vehicle (EV) charging cables give you faster charging and guaranteed performance, so your Electric Vehicle is ready to go when you are.

Fast, easy and reliable Electric Vehicle charging. Mode 3, Type 2 to Type 2, up to 32A, 1 Phase, up to 7.4kW, 5m.

CTEK EV charging cables are made from a tough, non-flammable plastic which conforms to V-0 specifications. They’re fitted with durable, heat spreading, synthetic resin plugs so they won’t crack and are completely safe to handle. Each cable comes with a two-year warranty and is CE-SGS approved.

Features

  • Formed from (V-0) non-flammable plastic
  • Protection class IP44
  • CE-SGS approved
  • Two-year warranty

Technical Data

Ambient operating temperature -40 °C to +90 °C
Charging station connector Type 2
Charging current Up to 32 A
Cable area 3 × 6,0 mm² (L1, L2, L3, Mass + N) and 1 x 0,5 mm²
Cable color Black
Number of phases 1 Phase
Vehicle connector Type 2
Charging power Up to 7.4 kW
Cable material V-0 non-flammable plastic
Cable length 5 m
Cable cap Yes
Cable type Straight cable
Cable net weight 3.5kg
Cable storage bag Yes
Cable compliance CE; SGS; IP44
Cable compliance text CTEK charging cables must only be used to charge electric cars (EVs) to Mode 3 charging stations in accordance with the ISO 17409 standard and IEC standard 61851. Never use an extension cord with a charging cable.
Connector compliance IEC 62196-2; IEC 61962-2
Packaging weight 4.0 kg
Packaging size (L x W x H) 350 x 380 x 100 mm
Warranty 2 years

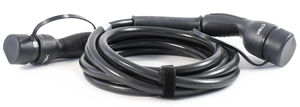

CTEK 40-323 EV Charging Cable

CTEK 40-323 EV Charging Cable

Only £359.49 + VAT
P/No. : ctek40323
QTY :

CTEK Electrical Vehicle (EV) charging cables give you faster charging and guaranteed performance, so your Electric Vehicle is ready to go when you are.

Fast, easy and reliable Electric Vehicle charging. Mode 3, Type 2 to Type 2, 3, up to 32A, 3 Phase, up to 22kW, 5m.

CTEK EV charging cables are made from a tough, non-flammable plastic which conforms to V-0 specifications. They’re fitted with durable, heat spreading, synthetic resin plugs so they won’t crack and are completely safe to handle. Each cable comes with a two-year warranty and is CE-SGS approved.

Features

  • Formed from (V-0) non-flammable plastic
  • Protection class IP44
  • CE-SGS approved
  • Two-year warranty

Technical Data

Ambient operating temperature -40 °C to +90 °C
Charging station connector Type 2
Charging current Up to 32 A
Cable area 5 × 6,0 mm² (L1, L2, L3, Mass + N) and 1 x 0,5 mm²
Cable color Black
Number of phases 3 Phase
Vehicle connector Type 2
Charging power Up to 22 kW
Cable material V-0 non-flammable plastic
Cable length 5 m
Cable cap Yes
Cable type Straight cable
Cable net weight 3.5kg
Cable storage bag Yes
Cable compliance CE; SGS; IP44
Cable compliance text CTEK charging cables must only be used to charge electric cars (EVs) to Mode 3 charging stations in accordance with the ISO 17409 standard and IEC standard 61851. Never use an extension cord with a charging cable.
Connector compliance IEC 62196-2; IEC 61962-2
Packaging weight 4.0 kg
Packaging size (L x W x H) 350 x 380 x 100 mm
Warranty 2 years
