PicoScope 4-Channel EV Kit
PicoScope 4-Channel Electric Vehicle Kit
Based on the market-leading PicoScope 4425A with PicoBNC+® technology, this kit allows technicians to measure complex signals accurately and efficiently. The kit also integrates seamlessly with PicoScope 7 Automotive software, featuring brand-new EV Guided Tests for simplified testing and step-by-step guidance.

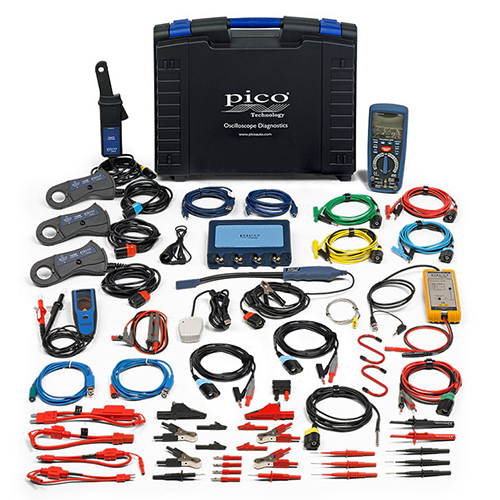

The PQ462 kit comes fully equipped with essential tools, neatly organized in a foam-cut carry case for portability and protection.
What’s included in the Kit?
- PicoScope 4425A with PicoBNC+
- 3 x PicoBNC+ 2000A High-Current Clamps for EV battery and drive system measurements
- 4 x PicoBNC+ Premium Test Leads
- PQ345 PicoBNC+ 1400V Differential Probe Kit for high-voltage testing
- PicoBNC+ x10 Scope Probe
- PicoBNC+ Resistance Lead
- PicoBNC+ COP Probe for ignition system testing
- PicoBNC+ 60A Clamp for current measurement
- Pico Two-Pole Voltage Tester for zero-potential measurements
Key Benefits
- Enables high and low voltage diagnostics on EVs, hybrids, and conventional vehicles
- Provides accurate, safe, and reliable measurements for professionals
- Fully expandable with additional PicoScope accessories to extend testing capabilities
- Compact, organized, and portable carry case ensures tools are protected and easy to transport
- Supported by EV Guided Tests in PicoScope 7 Automotive software for simplified workflows
- The PicoScope 4-Channel EV Kit (PQ196) is the essential choice for modern workshops and EV specialists looking to perform advanced diagnostics, improve efficiency, and maintain safety standards when working on high-voltage electric vehicle systems.
Electric vehicle testing
The importance of Electric Vehicle (EV) is clearly evident as part of the drive towards better use of clean and renewable energy and the reduction of harmful emissions and particulates. EV is now discussed so widely, and the investment in increasing EV deployment is so great, that every workshop has to be aware of the increased need to handle EVs. Pico is working with our partners and customers to ensure that workshops can be as safe, efficient and effective working with EV as they are with Internal Combustion Engines (ICE).
In this section, you can find information about our PicoScope 4425A Electric Vehicle (EV) kit. It is designed to cover all vehicle types and powertrains and to provide workshops with a future-proof system that covers vehicles with high-voltage batteries and motor systems.
This PicoScope 4425A kit provides comprehensive diagnostics capability for all types of EV (BEV, MHEV, PHEV, Fuel-cell), and ICE (Diesel, Gasoline, LPG). In combination with the extensive range of Pico accessories, the 4425A covers engines/motors, sensors, actuators, communications buses, noise vibration & harshness (NVH), and basic measurements in a user-friendly system that includes extensive guidance for the technicians. The PicoScope 4425A EV Diagnostics Kit contains all the test equipment required to ensure safety during work on an EV, and to investigate any faults that are likely to cause safety issues.
