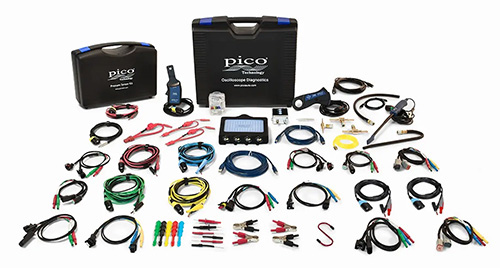

PicoScope Off-Highway Expert Kit
PicoScope Off-Highway Expert Kit
In addition to the accessories found in the Off-Highway Entry kit, the Off-Highway Expert kit includes an extended range of break-out leads, for easy connectivity to a wider range of components and systems.
Also included is a WPS500X pressure transducer and accessories, ideal for measuring engine air intake, exhaust and fuel system pressures. The Off-Highway Expert kit comes in a carry case for ease of storage and transport.
The PicoScope Off-Highway Expert Kit (PICOPQ331) contains:
| PicoScope Off-Highway PS4425A-099 | 1 |
| USB 3 Cable - 1.8m Blue | 1 |
| Telescopic pack: 45x45 length 80-120mm | 2 |
| Battery clip 4mm socket (red) | 2 |
| Battery clip 4mm socket (black) | 2 |
| Flexible back-pinning probe black | 2 |
| Flexible back-pinning probe red | 2 |
| 2-pin breakout lead | 2 |
| Breakout Lead 2-pin ACS | 2 |
| Breakout Lead 2-pin Deutsch DTxx-2 | 2 |
| PicoBNC+ automotive 10:1 scope probe aftermarket | 2 |
| Insulation piercing test clip (pack of 2) | 1 |
| Cable: USB2 4.5m | 1 |
| S-hook | 1 |
| Carry Case: PiBow Standard kit - Jazz 5019 Black | 1 |
| Multimeter style test probe (black) | 1 |
| Multimeter style test probe (red) | 1 |
| Electronics Acupuncture Probes | 1 |
| Breakout lead for ATC style fuses | 1 |
| Extension lead for mini style fuses | 1 |
| Breakout lead 3-pin amp superseal | 1 |
| PicoBNC+ current clamp: 200A/2000A AC/DC 150V | 1 |
| PicoBNC+ resistance test lead | 1 |
| PicoBNC+ Test Lead: 4mm permanent ground 5m blue | 1 |
| PicoBNC+ Test Lead: 4mm permanent ground 5m red | 1 |
| PicoBNC+ Test Lead: 4mm permanent ground 5m green | 1 |
| PicoBNC+ Test Lead: 4mm permanent ground 5m yellow | 1 |
| PicoBNC+ 60A compact current clamp | 1 |
| Foster 2 series quick coupler female to ΒΌ NPT male | 3 |
| Cable: USB A male to mini 5 pin 2m | 1 |
| Cable: insulated BNC to insulated BNC 5m | 1 |
| Manual: WPS500X Pressure Transducer | 1 |
| Carry case: WPS500 compression adaptors Black Tekno | 1 |
| WPS500X low pressure transducer calibrated & labelled | 1 |
| Vacuum hose for WPS500 pressure transducer | 1 |
| Bleed hose for WPS500 pressure transducer | 1 |
| Exhaust adaptor for WPS500 pressure transducer | 1 |
| Universal vacuum adaptor | 1 |
| Extension lead for JCASE fuse | 1 |
| Breakout Lead 3-pin Kostal | 1 |
| Breakout Lead 4-pin Deutsch DTxx-4 | 1 |
| Breakout Lead 2-pin Kostal | 1 |
| Breakout lead 4-pin large Deutsch DTPxx-4 | 1 |
| Vacuum tap for WPS500 (brass) | 1 |
| Fuel hose pressure tap: small (brass) | 1 |
| Fuel hose pressure tap: medium (brass) | 1 |
| PicoBNC+ wide-range linear temperature probe | 1 |
| PicoBNC+ COP probe | 1 |
PicoScope is widely used on passenger cars, but is also suitable for heavy-duty and off-highway maintenance by both manufacturers and service providers.
Vehicles include trucks, tractors, forklifts, boats, combine harvesters, excavators and more. PicoScope only needs a voltage input, and we have a wide range of accessories available to investigate all types of signal.
PicoScope covers all systems, sensors and actuators found in heavy-duty (HD) and off-highway (OH), allowing vehicles and equipment to be maintained at peak performance and reliability.
Access needs do differ, which is why we offer a range of non-intrusive testing options. Current clamps, pressure sensors and probes play a big part here, and we have everything you need for old and new systems alike.
