MaxiSYS MS919 Diagnostic Tester

MaxiSYS MS919 Diagnostic Tester

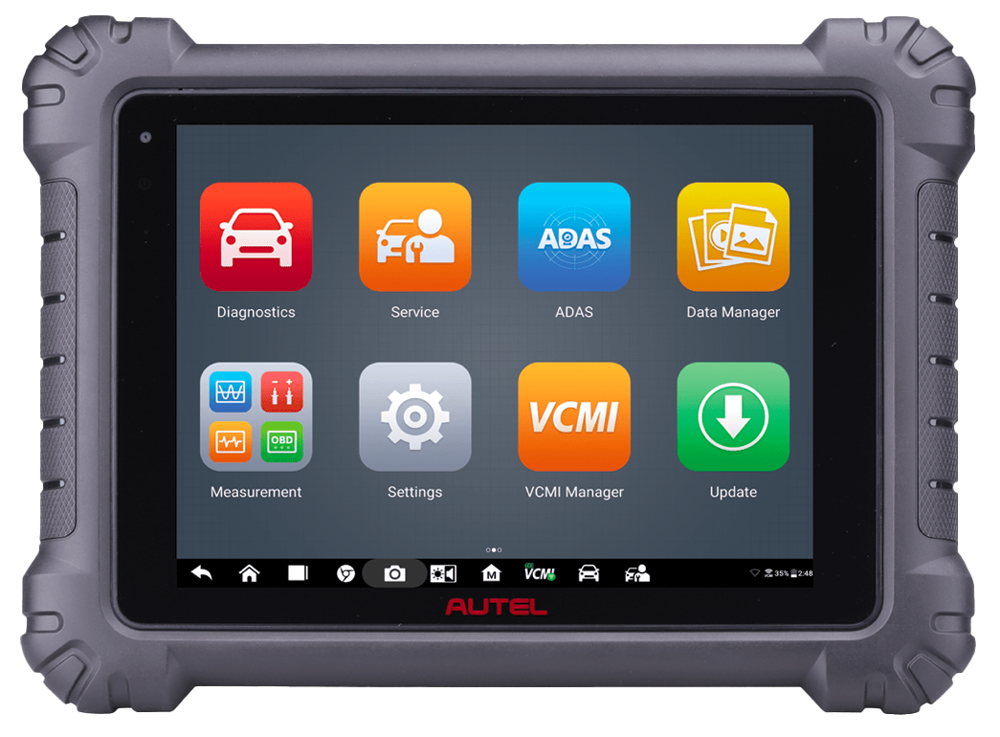

The MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet, fuelled by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), equipped with 128GB of memory.

Notably, it incorporates the MaxiFlash VCMI, a 5-in-1 communication and testing tool that facilitates wireless vehicle communications between the vehicle and the tablet, proficiently supporting the latest DoIP, D-PDU, and Mega CAN vehicle communication protocols. In addition, the VCMI boasts the ability to function as a 4-channel oscilloscope, a waveform generator, a multimeter, and a CanBUS tester.

The MS919 exhibits dynamic topology module mapping for supported vehicles, showcasing its Intelligent Diagnostics feature.

This functionality efficiently guides the technician from diagnosing trouble codes to the repair and testing stages, providing comprehensive repair information accompanied by illustrative aids.

The MS919 also offers a selection of Oscilloscope preset guides and tests, along with an extensive waveform library to enhance diagnostic capabilities.

Moreover, the MS919 is equipped with a rechargeable Lithium battery, ensuring up to 8 hours of continuous usage, which is highly beneficial for automotive professionals.

Key Features

• 2 Year Updates
• Android 7.0
• 2,3GHz + 1,7Ghz Samsung Exnos 8895v Octa-Core
• 128GB internal memory
• 4GB RAM
• 9.7" 2048 x 1536 TFT-LCD Corelle Glass
• Ultra fast power on
• 15,000mAh Lithium-Polymer Battery
• Oil and Water screen resistant
• DoIP and CAN-FD Compliant
• Remote Expert Compliant
• Secure Gateway approved by Vehicle Manufacturers

Specification

• Operating System: Android 7.0
• Processor: Samsung Exynos - 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
• Memory: 4GB RAM & 128GB On-board Memory
• Display: 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
• Connectivity: Wi-Fix2 (802.11 a/b/g/n/ac 2×2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (TWO USB HOST Type A, ONE USB mini device), HDMI 2.0, SD Card (Support up to 256GB)
• Camera Rear: 16 Megapixel, Autofocus with Flashlight
• Camera Front: 5.0 Megapixel
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio Input/Output: Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack
• Power and Battery: 15000mAh 3.8V lithium-polymer battery. Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
• Input Voltage: 12V/3A Adapter
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Storage Temperature: -20 to 60°C (-4 to 140°F)
• Dimensions (WxHxD): 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
• Weight: 1.66kg (3.66lb.)
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

System Topology

With our Autel exclusive System Topology Software, the technician can see a colour coded topology display for all vehicle systems and their status on one page! The display shows the structure of communication between modules, and gives the ability to press on a system module to display any DTC's and access the system. Currently available on BMW, Ford, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda, Toyota Lexus, Jaguar, Land Rover, Mercedes Benz, Hyundai, Kia, Volvo.

Tool Case Includes

• USB Cable
• Main Cable
• Ethernet Cable
• Light Fuse
• Cigarette Lighter
• AC/DC Adapter
• Clipper Cable
• Scope Test Lead x 4
• Multimeter Test Lead x 2
• Attenuator x 2
• Breakout Lead x 4
• Multimeter Probe x 2
• Flexible Back-Pinning Probe x 2
• Back-Pinning Probe x 2
• Back-Pinning Probe Screw x 2
• Back-Pinning Probe
• Replacement Needle x 20
• Small Crocodile Clip x 2
• Large Dolphin Clip x 2

Our additional Oscilloscope Accessory Kit can be purchased separately and includes the further items of 1 x 65Amp Current Clamp, 1 x 650Amp Current Clamp, 1 x Coil On Plug Probe, 2 x HT Extension Leads and 2 x Battery Clips.

Ultra System convergence with the all new VCMI

The MaxiSYS Ultra and MS919 are supplied with the all new MaxiFLASH VCMI as standard. The VCMI is full convergence multi-functional Wi-Fi VCI with built in Oscilloscope, Multimeter, Signal Generator and OBD Bus Check Functions. Furthermore, it is the only Wi-Fi VCMI currently sold that supports D-PDU, RP1210, CANFD. J2534 and DoIP protocols.

Oscilloscope

The 4 Channel Oscilloscope is faster with 20MHz Bandwidth, more accurate with 80MS/s sampling data rate, and a 32M memory buffer that stores more complex signals, zoom and replay.

Our pre-set Guided Test and Waveform Library instructs technician's on use and fault analysis.

We also provide a large number of cloud pre-set cases, including connection diagrams, waveform library, reference waveforms, fault case analysis and one-press waveform settings.

Waveform Generator

The Waveform Generator is used to test a sensor, an actuator, or an ECU without the need to replace them one by one to identify the fault. This is done by simulating signals of various sensors and ECUs, identifying hardware issues.

• Simulates sensor signals to quickly diagnose ECU, sensor, and wiring harness issues;
• Simulates ECU signals to perform active tests to verify functions of certain parts (Electronic fan, solenoid valves etc);
• Simulates actuator signals and verifies the communication status between the actuator and ECU (Electronic fan, solenoid valve, headlight)

Multimeter

The professional Multimeter will measure Voltage, Current, Resistance, Diode, Frequency/Period, Duty Cycle, Connectivity and Pulse Width.

CAN Bus Check

The CAN Bus Check can quickly determine whether the OBD pins are functioning correctly.

J2534, DoIP Bus, CAN-FD Bus, RP1210 and D-PDU

The Autel VCMI supplied with the Ultra and MS919 supports all the very latest communication and application programming interface protocols.

EV Expansion Pack

Take your workshop into the future with the Secure High-Voltage Guided System Testing & Analysis.

The EV Expansion Pack Upgrade Kit comprises the EVDiag Box and dedicated adapters designed for specific electric vehicles, enabling you to conduct in-depth battery pack analysis.The EVDiag Box seamlessly interfaces with the MaxiSys Ultra, MaxiSys MS919, and MaxiSys MS909 tablets. Connection to the MaxiFlash VCI or VCMI is established through the EVDiag Box.

With the EV Expansion Pack at your disposal, qualified Level 4 technicians gain the capability to perform advanced diagnostics on a wide spectrum of European, US, and Asian Full Battery and Hybrid vehicles.

This Upgrade Kit includes essential adapters tailored to specific vehicle models, granting technicians direct access to battery packs for comprehensive diagnostic assessments.
