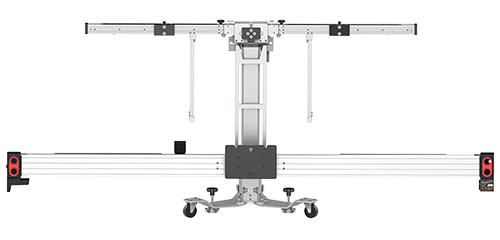

Autel IA600 Camera Pack ADAS
Click Here for Details
Perfect for mobile or use within the workshop
Building on the original Autel calibration frame, the new IA600 now offers computerised camera setup saving time and increasing accuracy along with a fully documented reporting to show Pre / Post Scans, Calibration results and tool setup making it one of the most comprehensive ADAS calibration reports to date.
It's designed for the technician who needs to be able to calibrate all ADAS systems including Lane Departure Warning, Adaptive Cruise Control, Rear Collision Warning, Night Vision, Blind Spot and Radar/Camera collision avoidance systems. The IA600 is sold with a 'full bundle' with includes Camera setup configuration (just like the advanced IA900) plus various patterns and boards packaged together to save the customer money.
There are also an extensive range of extra specialist patterns, boards and simulators to enable the technical to calibrate many static ADAS calibrations.
The Autel ADAS software will also enable the technician to undertake dynamic calibrations, where the car must be put in learn mode, but does not require the use of an ADAS frame. The IA600 is can be used with the MS906sPro, MS906sProTSC, MS909, MS919 and MS Ultra diagnostic tools.
The Autel ADAS tools were tested by Thatcham and successfully completed all test procedures in 2020.
- Portable: Easily foldable frame create freedom to calibrate faster in many locations
- Precise: The new camera set-up and accessories provide a quicker levelling process with vehicle for millimetre Ruler Accuracy
- Adjustable: Fine-tuning nobs to easily
- Smart: Compatible use with levelling lift adjustment.
- Accurate: Regular updates of latest OE-Level diagnostic & calibration software for Correct calibration results.
- Intuitive: Tutorial graphics & step-by-step instructions. Pre-Scan & Post-scan Reports (ADAS module identification, Calibration)
- Expansive: Wider vehicle coverage. Extend camera calibration to AVM and RCW systems with purchase of oversize patterns.

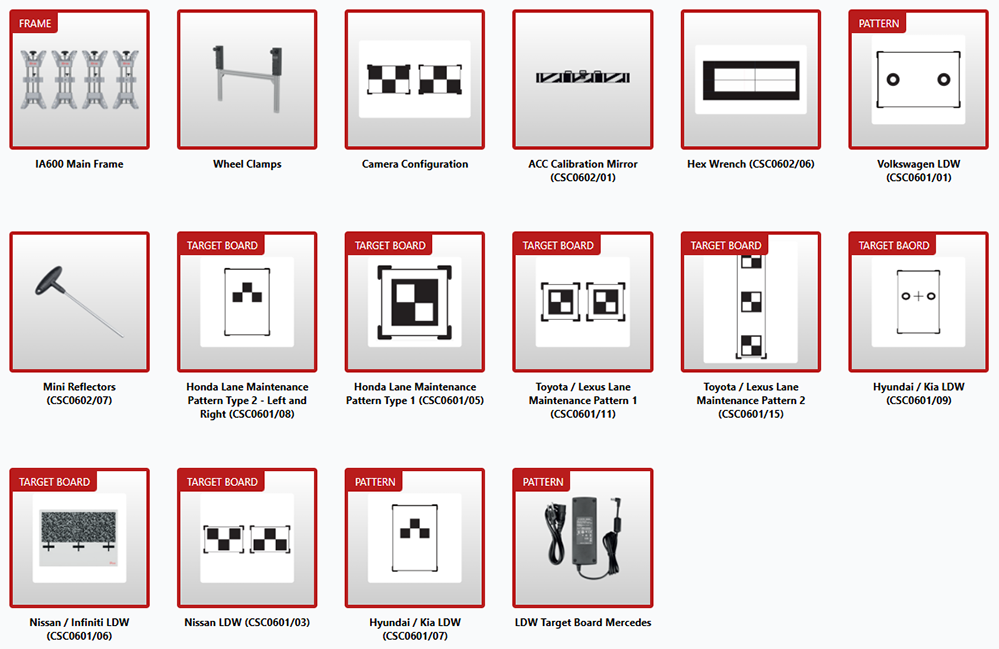

The MaxiSYS IA600 includes;
- ADAS Software
- Modify to IA600 ADAS Frame
- IA800/IA600 Camera Kit + 4 wheel clamps
- LDW Target Board Volkswagen
- LDW Target Board Mercedes
- ACC Calibration Mirror
- Nissan LDW System
- Honda LDW System
- Nissan, Infinity LDW System
- Hyundai/KIA/Jeep/Fiat/PSA LWD Pattern
- Honda LDW System
- Hyundai/KIA LDW Pattern
- Toyota/Lexus LDW System
The MaxiSYS tablet is not included.
Call us now on 01823 328530 for more details
The IA600 Camera Pack
The MaxiSYS IA600 Camera Pack contains a range of ADAS components that will be commonly used in your workshop. PATTERNS SUPPLIED MAY VARY FROM TIME TO TIME. THE LIST ABOVE IS ACCURATE AS AT SEPTEMBER 2023.
| Specification | |
|---|---|
| Calibration Frame Dimensions | (WxDxH): 2510mm (98.82”) x 714mm (28.11”) x 1480-2105 mm (58.27-82.87”) |
| Calibration Frame Weight | 74.5 kg (164.24 lb.), GW: 152kg (335.1 lb.) |
| Pattern Board Size | (LxW) 1360mm (53.54”) x 960mm (37.80”) |
| Crossbar Length | 2510mm (98.82”) |
| Measurement Range of Crossbar's Height | Height min=350mm (13.78”), Height max=950mm (37.40”) |
| Measurement Range of Pattern Board's Height | Height min=1000mm (39.37”), Height max=1600mm (62.99”) |
| Rated Power | 24 V, 3A |
| Laser Rated Power | 3V, 25mA |
| Laser Battery Type | AA 2x1.5V |
| Calibration Frame Working Temp | 0℃ to 50℃ |
| Calibration Frame Storage Temp | -20℃ to 60°C |
| Laser Class Class 2 Certification | CE, FCC, RoHS |
