Beissbarth ADAS Packages

Q.DAS Standard | ADAS Calibration after wheel alignments

Modular solution for ADAS calibration of forward-facing and safety-critical radar, camera, and LIDAR systems. Standard version for workshops with low to medium calibration volumes.

Q.DAS: OEM-compliant ADAS calibration in combination with wheel alignment

Q.DAS is a modular solution for the calibration of forward-facing, safety-relevant radar, camera and LIDAR systems.
Configure your system depending on the volume, budget and available space.

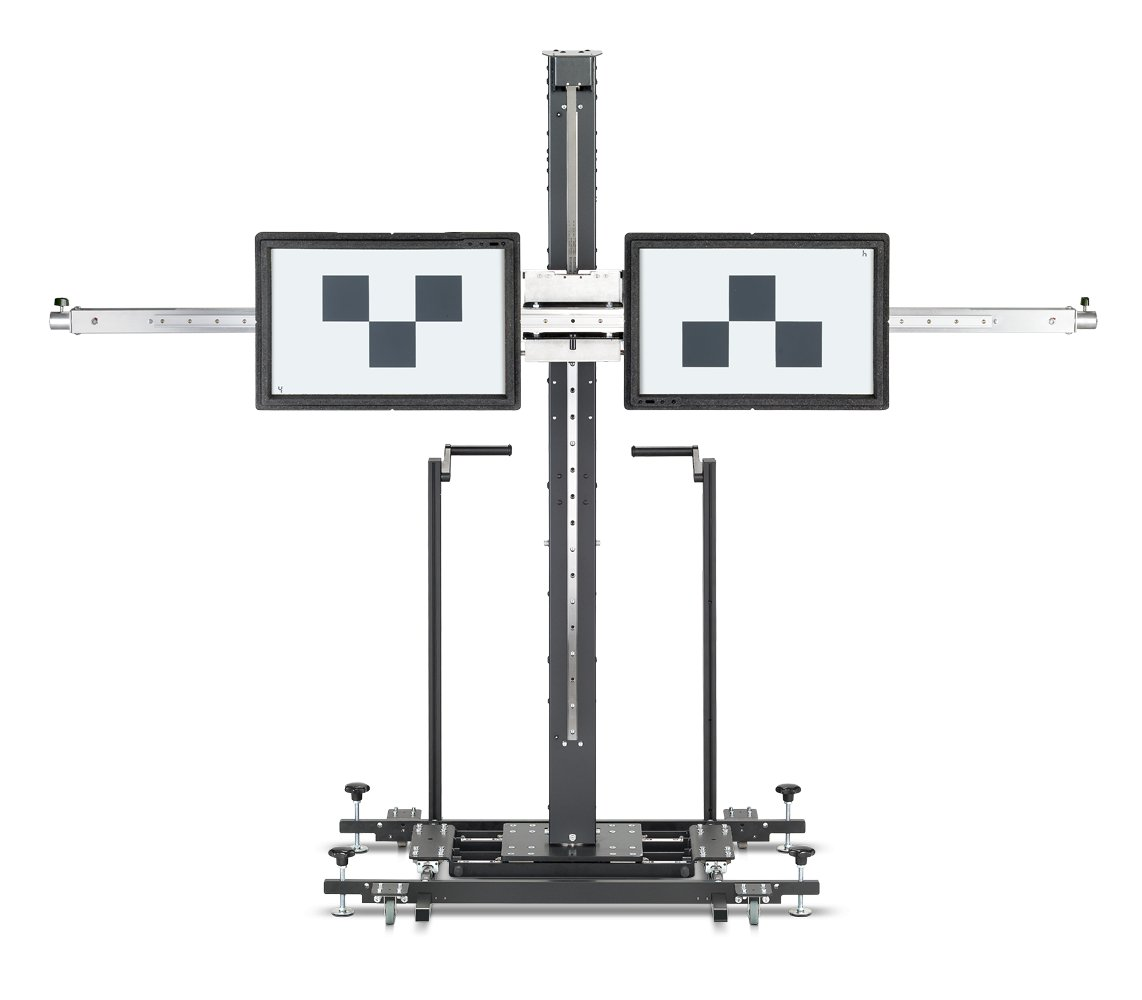

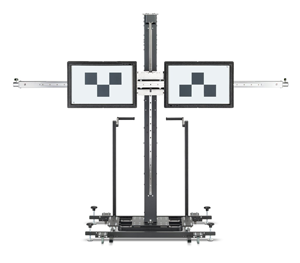

Q.DAS Standard:

Safety-relevant driver assistance systems: Radar and camera
Vehicle class: Cars
Calibration volume in the workshop: low to medium
Height adjustment: Motorized up to 1700 mm
Works with all camera calibration targets: Yes
Supports eTargets: Yes
Distance adjustment without re-leveling: 200 mm
Center offset adjustment without re-leveling: 200 mm

Advantages of the Q.DAS system:

1. Digital instead of analog:

Camera-based positioning via live display
No plump bobs or measuring tapes
Full control over entire calibration
Direct specs instead of manual value transfer*

2. Wheel alignment and ADAS calibration as one process

No retooling
No moving of measuring devices
Permanently ready for use
Guided instructions for setup and positioning
Automatic compensation of different installation heights
Meets highest accuracy requirements of OEMs

3. Modular calibration solution for every workshop

Free choice of calibration targets and radar mirrors
Configuration according to calibration volume, budget and space conditions
No fixed commitment to only one diagnostic tester
Integrated X-Y slider minimizes leveling
Motorized height adjustment

Just a few steps to the right system for ADAS calibration

Scope of deliveries:

1x Modular Q.DAS frame, without targets or radar mirrors
1x Q.mApp software (Android) and license for activation (1 year)
1x Digital Bluetooth laser distance gauge

*Costs apply: Requires active Q.mApp license in combination with Q.Lign wheel aligner

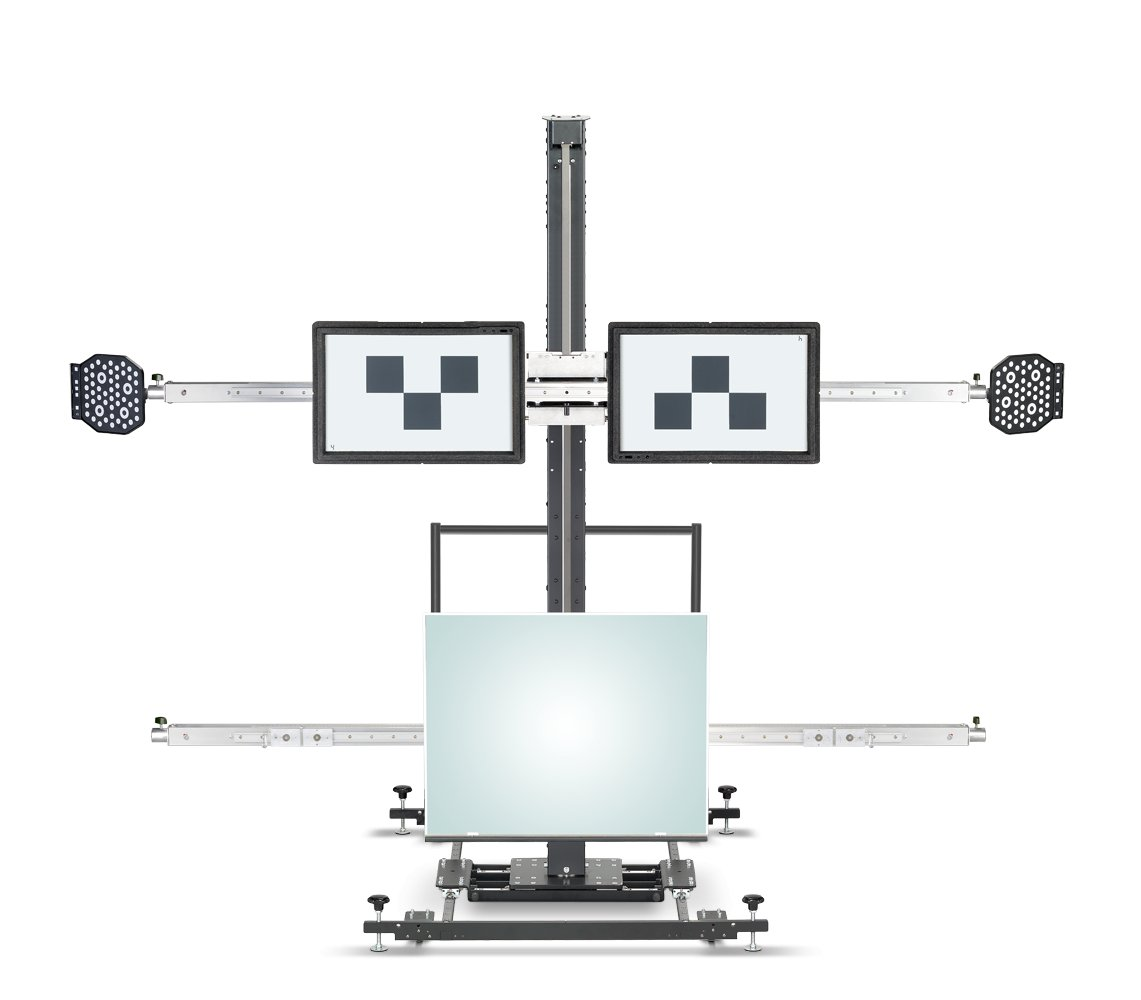

Q.DAS Pro | ADAS Calibration after wheel alignments

Modular solution for ADAS calibration of forward-facing and safety-critical radar, camera, and LIDAR systems. Pro version for workshops with high calibration volumes.
