Dama HDM3NP 3 Level Parking Lift
Dama HDM3NP 3 Level Parking Lift

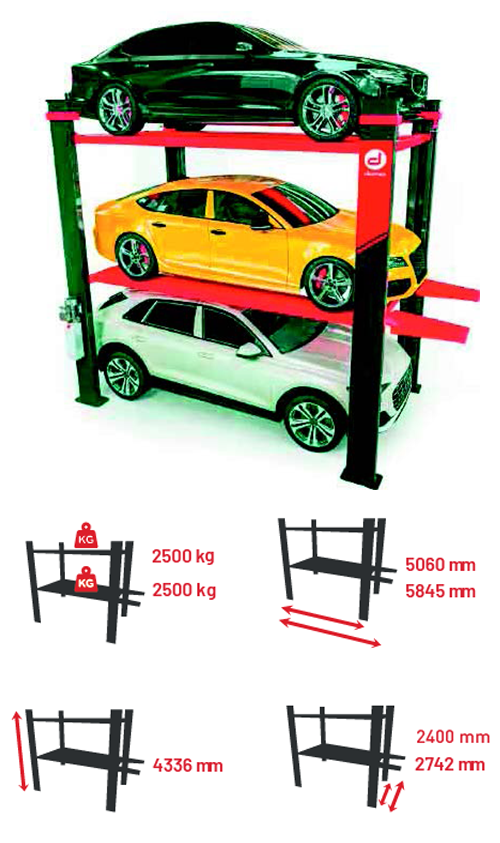

This 3 level parking lift is one of the most popular in the range, based on a 4 post lift the triple stack enables 3 vehicles to be stored in the space of one. The top level has a capacity of 2000kg with the mid 2500kg. The lift stands at 43d0m high, has a platform length of 5m and width between post of 2400mm. At total width of 2742mm multiple lifts to be fitted side by side in a small space.
- 3 Phase
- Top Level Capacity: 2000kg
- Mid Level Capacity: 2500kg
Price includes delivery and installation.
Technical Specification
| Capacity | 2000Kg (top) 2500Kg (mid) |
| Power Source | 400V / 3ph 2.2Kw |
| Warranty | 24 Months |

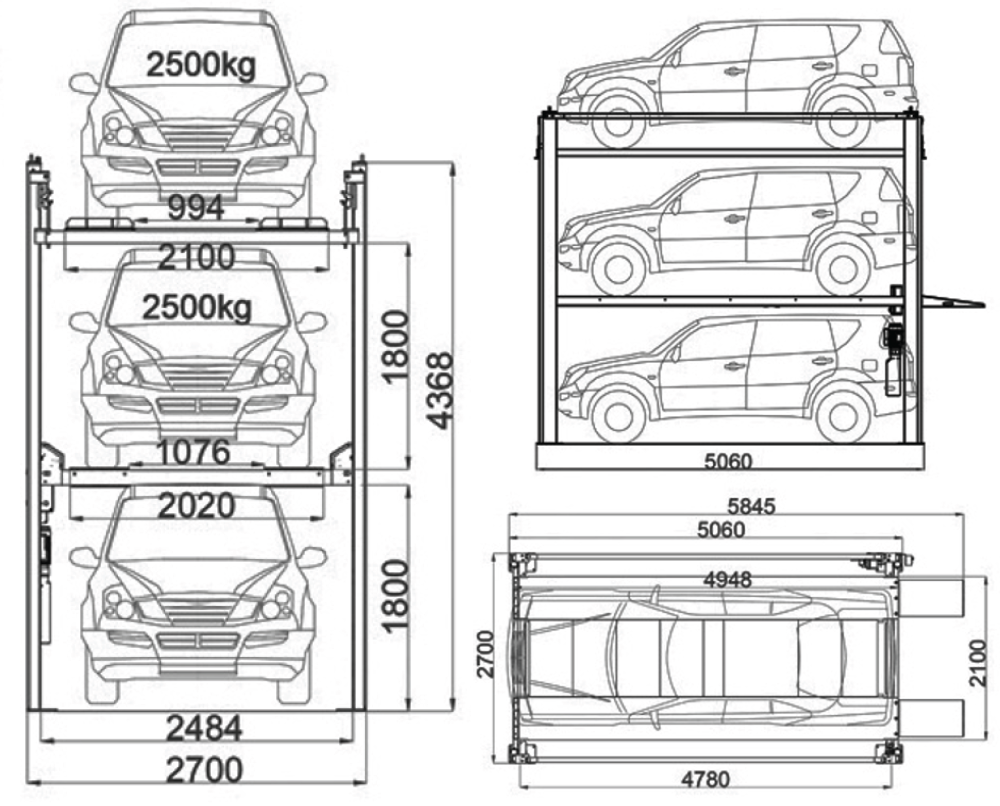

Drawings
Downloads
Call us now on 01823 328530 for more details
