Bosch DCU 120

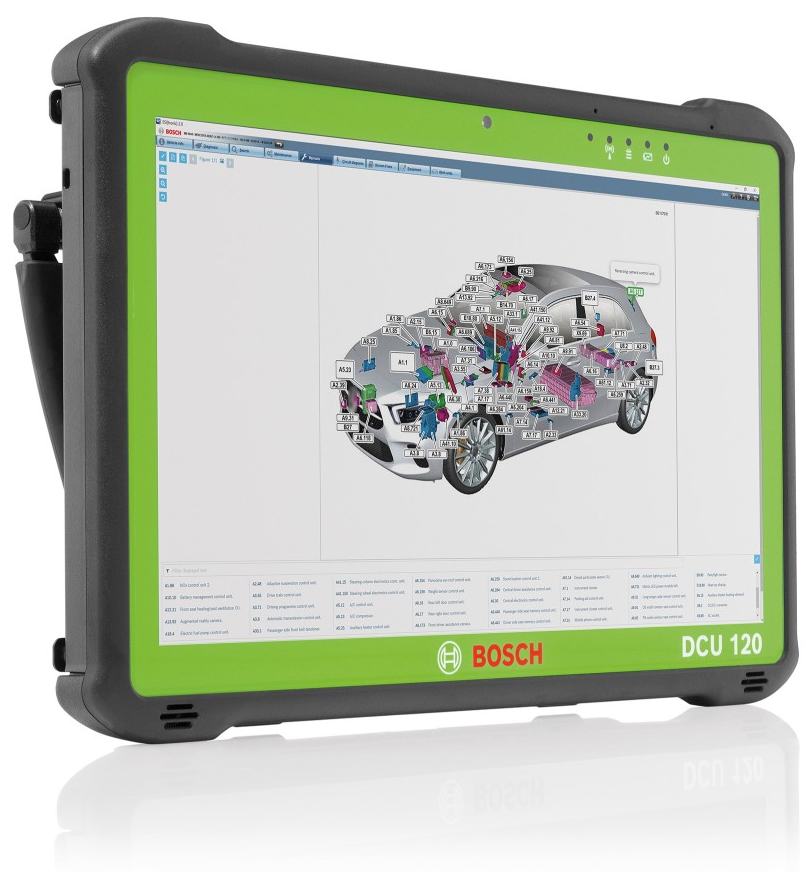

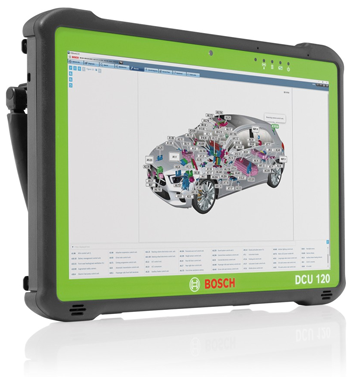

DCU 120 - Robust tablet PC for mobile workshop use
The DCU 120 tablet PC with 11.6-inch display and fast processor is the new mobile companion in the workshop. The tablet PC is prepared for future workshop equipment and systems and the interfaces according to current technology standards offer comprehensive connectivity.
The large capacitive HD touchscreen enables convenient operation of software packages. Together with the KTS Module 560 or 590, the DCU 120 thus forms a modern, fully-fledged diagnostic system for all service and repair work on modern vehicles.
In combination with the KTS Truck, the DCU 120 is also suitable for diagnostics on light commercial vehicles, trucks, trailers and buses.
Features and Benefits
- 11.6 inch display with capacitive touch screen enables convenient operation
- Full HD display provides high quality and good readability
- Powerful microprocessor for safe and hassle-free execution of software for test and diagnostic systems such as driver assistance systems, Connected Repair, vehicle system analysis and emissions analysis
- PassThru functions enable recall of vehicle manufacturer diagnostic data
- Battery life of five hours and rugged design that complies with IP65 rating
- Windows 10 operating system and ESI[tronic] 2.0 Online diagnostic software are pre-installed
- Giga LAN connection as well as Wifi, Bluetooth and USB interfaces according to the latest technical standards.
Technical Data
- Dimensions (WxHxD) : 301 x 202 x 23 mm
- Weight : 1.83 kg
- Storage : Solid-state drive (SSD) with 256 GB
- Processor : Intel Pentium N4200 Apollo Lake 1.10 GHz (Boost: 2.5 GHz)
- Temperature ranges
- Operating temperatures:
- -20 °C to 60 °C (AC mode)
- -10 °C to 50 °C (Battery mode)
- Storage temperature: -30 °C to 70 °C
- Operating temperatures:
- RAM : 8 GB
- Display : 11.6 inch, 300 Nits TFT LCD, 1920 x 1080 Full HD, anti-glare film
- Touchscreen : Capacitive multitouch
- Sealing : IP65
- Operating system : Windows 10 IoT
Scope of Delivery
- DCU 120 with 256 GB solid-state drive (SSD)
- AC adapter
- Battery
- EU power cable
- Folding stand
- Touch pen
- Case
- User manual
