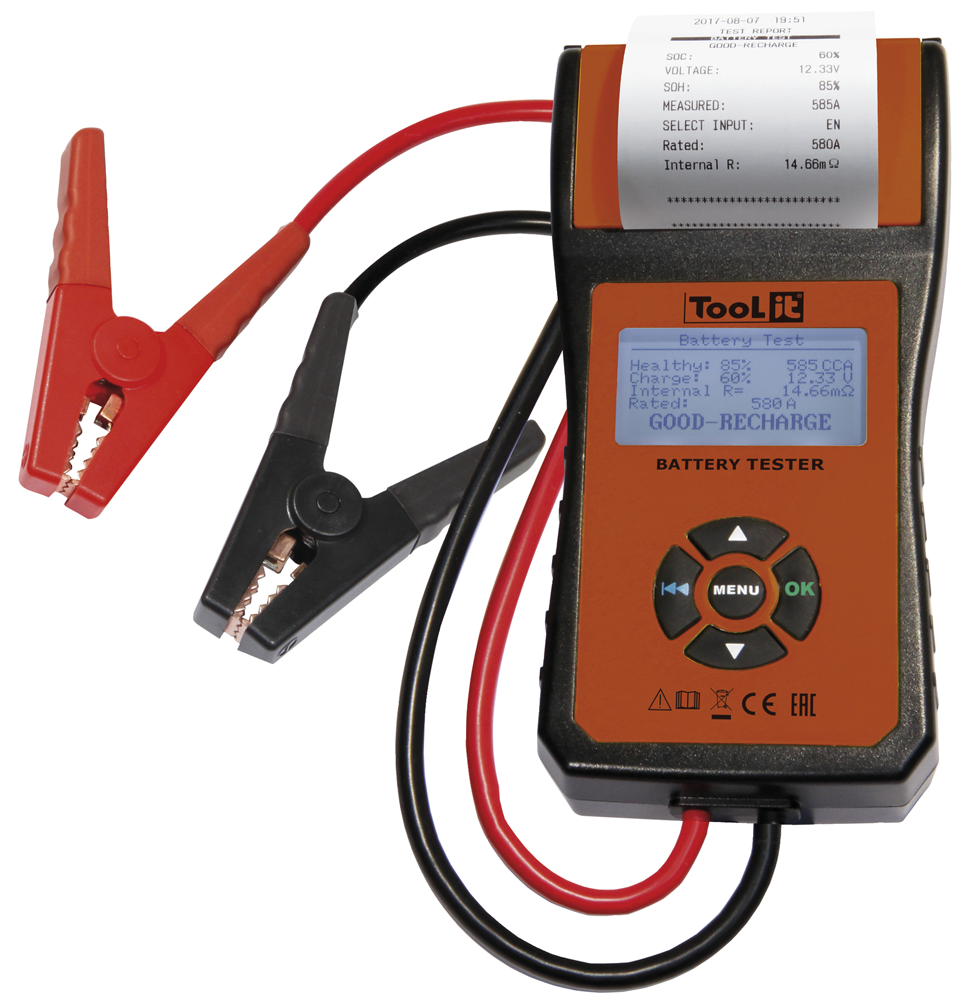

GYS PBT550 Battery Tester

GYS PBT550 Battery Tester

Professional battery tester providing highly-accurate results and with in-built printer.

Features

• Battery 12 V : test of the voltage level and state of charge.
• Starter 12 V : test the start voltage.
• Alternator 12 V : tests the no load voltage and charging voltage as well as current undulation during the charge.
• Special feature to test the internal resistance of the battery.
• Print-out of the results using integrated thermal printer (no ink required).

Instant Analysis

• Battery voltage (6 V to 20 V)
• Available starting power
• Charge state and battery health (%)

Battery Types

Compatible with multiple types of lead-acid battery ranging from 30 to 200 Ah :

• VRLA / GEL / AGM FLAT / AGM SPIRAL sealed batteries
• STANDARD LIQUID batteries
• START / STOP batteries (EFB/AGM)

Operating Range:

• EN : 100 > 2000 CCA
• DIN : 100 > 1400 CCA
• SAE : 100 > 2000 CCA
• JIS : Japanese battery
• IEC : 100 > 1400 CCA (international standard)
• CA/MCA : 100 > 2000 CCA (marine battery)

Highly Accurate

• Automatic compensation for external temperature.
• Advanced dynamic resistance measurement technology minimises battery discharge and displays an accurate result which is unaffected by :
  • the surface charge
  • parasitic load (lights, various indicators, etc)
  • contact defaults (worn out terminals/ lugs, unfastened lugs, etc)

Practical

• Large LCD backlit display
• Multilingual interface
• Protected against polarity reversal
• ABS case (acid resistant)
• Power supply : no internal battery, will power up using the vehicle battery.
