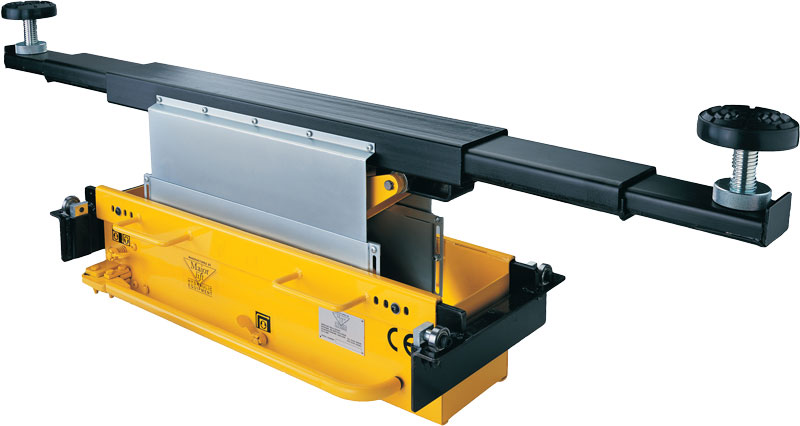

Majorlift Jacking Beams
Majorlift Jacking Beams
A range of top quality, British built jacking beams from 2 tonne to 6 tonne capacity.
Approved for MOT class IV & VII and suitable for all makes of service lifts.
Please call us on 01823 328530 for a quotation
| Rated 2T | Rated 2.8T | Rated 4T | Rated 6T | ||
| Part No. Manual | HPJ2 | HPJ2.8 | HPJ4 | N/A | |
| Part No. Air/Hydraulic | MPJ2 | MPJ2.8 | MPJ4 | MPJ6 | |

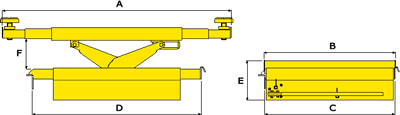

| A | Width when extended | 1605mm | 1605mm | 1605mm | 1300mm |
| B | Width when retracted | 800mm | 815mm | 864mm | 910mm |
| C | Min. width over support arms | 775mm | 790mm | 830mm | 920mm |
| D | Max. width over support arms | 1125mm | 1130mm | 1300mm | 1290mm |
| E | Closed height | 212mm | 242mm | 254mm | 320mm |
| F | Total Lift | 205mm | 205mm | 205mm | 200mm |
| Weight with top beam | 87kgs | 113kgs | 155kgs | 224kgs | |
| MOT Approval for | Class 4 | Class 7 |
Call us now on 01823 328530 for more details
