Ravaglioli 4406.3IMOT4 ATL WL Dual Revenue 4 Post Lift
Ravaglioli 4406.3IMOT4 ATL WL Dual Revenue 4 Post Lift

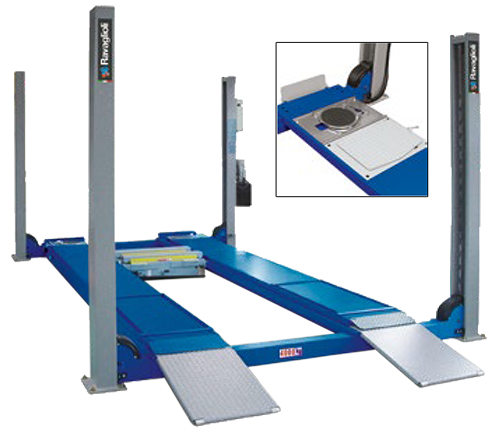

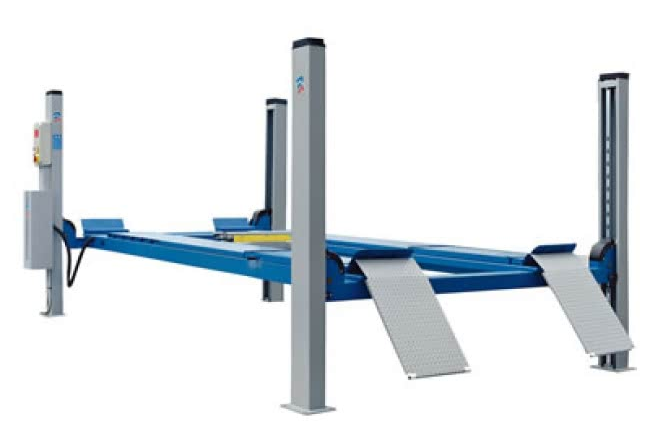

This Ravaglioli 4 tonne lift has been designed with front turning plates and rear slip plates for use as a wheel alignment lift, though the lift still functions as normal if wheel alignment is not required.
This electro-hydraulic dual revenue 4 Post Lift has front roller bearing turn plates, electro hydraulically operated shaker plates, rear slip plates, 5100mm platform length. Inspection lamp.
Technical Specification
| Lifting capacity | 4000kg |
| Minimum height | 210mm |
| Platform length | 5100mm |
| Platform width | 650mm |
| Power Requirements | 3 phase |
| Turnplates | Included |
| Hydraulic Shaker Plates | Included |
| Built in rear slip plates W/A | Included |

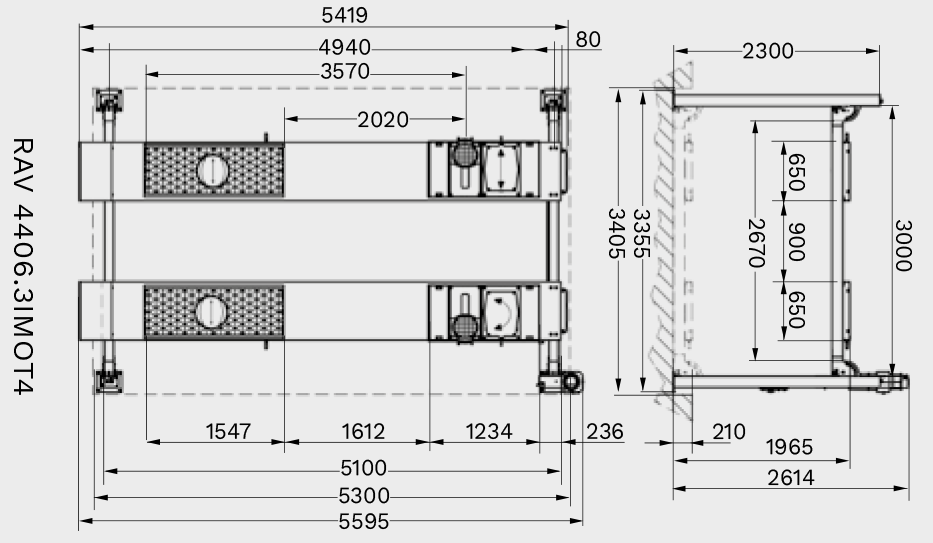

Drawings
