Dama HDM1.0YP Single Post Parking Lift
Dama HDM1.0YP Single Post Parking Lift

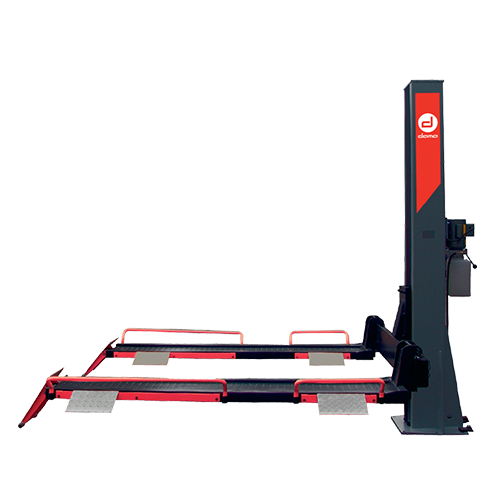

A single post lift with a 1 tonne capacity which is ideal for a range of agricultural equipment or small vehicles to offer storage or repair. Having only one post the lift offers a space saving design, clear floor once raised and an impressive max height of 2065mm enabling vehicles to be parked below and the area to be used as normal. The lift has a flexible arm design to enable a variety to different wheel base configurations to be accommodated.
Price includes delivery and installation.
100 Deals for 100 Days Offer
Free HITO1050 Tool Case and Tools
£4395.00 + VAT
P/No. : hdm10yp
Lease From £23.83 Per Week
Click Here for Details
Click Here for Details
Technical Specification
| Maximum Lifting Weight | 1000Kg |
| Total Height | 2700mm |
| Total Width | 1792-2592mm |
| Total Length | 3300mm |
| Lifting Height | 120mm - 2065mm |
| Power Supply | 220V / 1ph / 50Hz / 2.2KW 30 Amp 400v / 3ph / 50Hz / 2.2KW |
| Lowering Time | 20 seconds |
| Lifting Time | 60 seconds |
| Net Weight | 738Kg |
| Warranty | 24 Months |

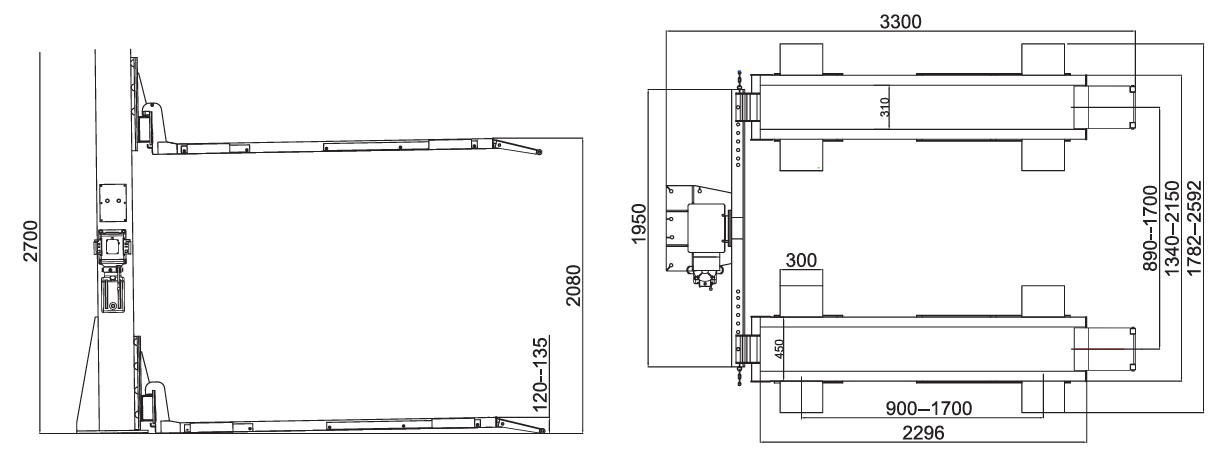

Drawings
Downloads
Call us now on 01823 328530 for more details
