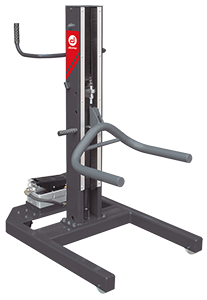

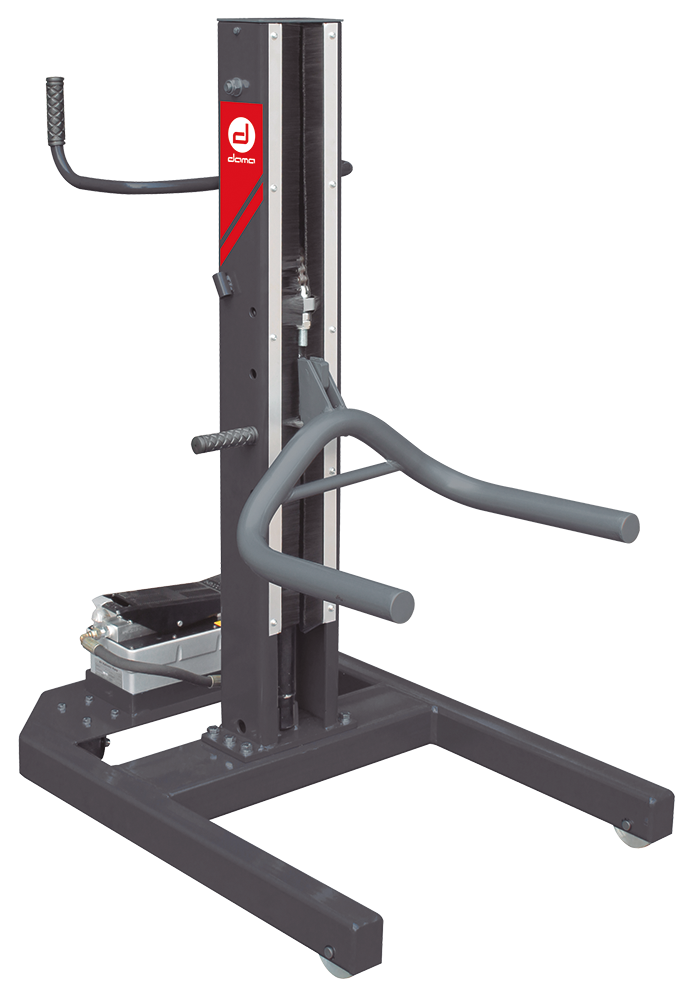

Dama HDM1.36L Mobile Single Wheel Side Lift
![Dama HDM1.36L Mobile Single Wheel Side Lift Dama HDM1.36L Mobile Single Wheel Side Lift](/images/tools/lifting/dama_dm136l/dm136l.png)
Dama HDM1.36L Mobile Single Wheel Side Lift
Single wheel side lift with pneumatic operation.
Simply slide the wheel fork under the desired wheel and activate the lift.
Features
- Capacity - 1360kgs
- Max vehicle weight - 2720kgs
- Lifting range - 102-750mm
- Overall height - 1320mm
- Air pressure range - 4-8bar
- Net Weight - 127.5kgs
- Requires compressed air supply
- Supply only - No installation required
- 24 months warranty
Technical Specification
Maximum Lifting Weight | 1360Kg |
Lifting / Lowering Time | < 30 secs |
Warranty | 24 Months |

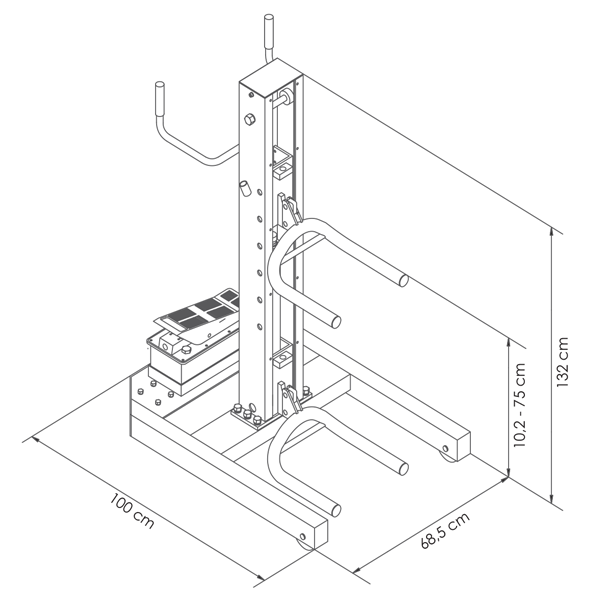

Drawings
Downloads
