Dama HDM13.5P4 4 Post Lift
Dama HDM13.5P4 4 Post Lift
Introducing the Dama 13.5T, heavy duty 4-Post lift, built for strength, safety, and precision. This robust lift is ideal for workshops and garages requiring reliable support for larger vehicles. With a lifting height of 1674mm, an overall height of 2332mm, and a width of 3206mm, it offers generous space and accessibility. The electric-air control operation system and air-released safety locks ensure smooth and secure lifting, while a mechanical self-locking device and cable-breaking protection add essential layers of safety and peace of mind.
Engineered for performance, the lift features ¾” aircraft-grade synchronization cables, skid-proof diamond platforms for added vehicle stability, and high-quality hydraulic cylinders with NOK seals and flow restrictors to maintain consistent lifting speed. The 116-second lift time balances power with control, and for added versatility, optional rolling jacks can be included. This lift runs on a 400V / 3-phase power supply, making it a dependable and essential addition to any professional automotive service environment.
Price includes delivery and installation.
Features
- 4 post service lift
- 13500kgs capacity
- 3 phase
- Electrohydraulic operation
- Max. lifting height: 1674mm
Technical Specification
| Maximum Lifting Weight | 13500Kg |
| Lifting Height | 1674 mm |
| Overall Height | 2332 mm |
| Lifting / Lowering Time | < 116s |
| Power Source | 400V / 3ph / 50Hz) |
| Warranty | 24 Months |

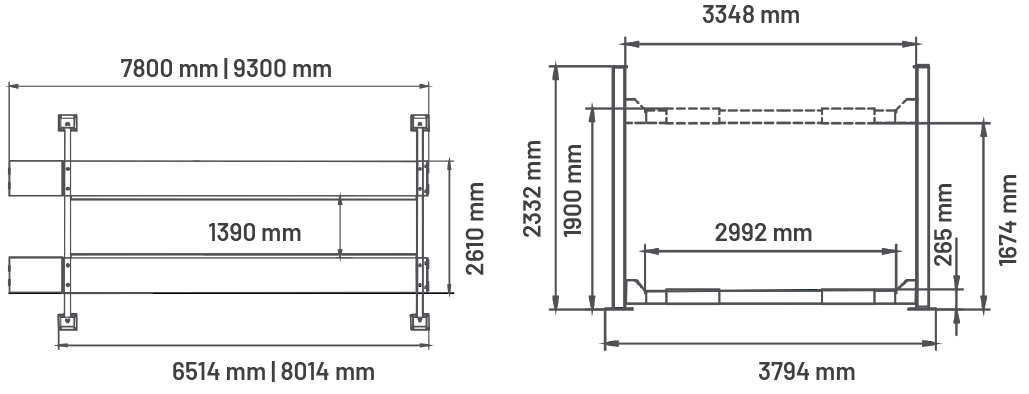

Drawings
Downloads
Call us now on 01823 328530 for more details
