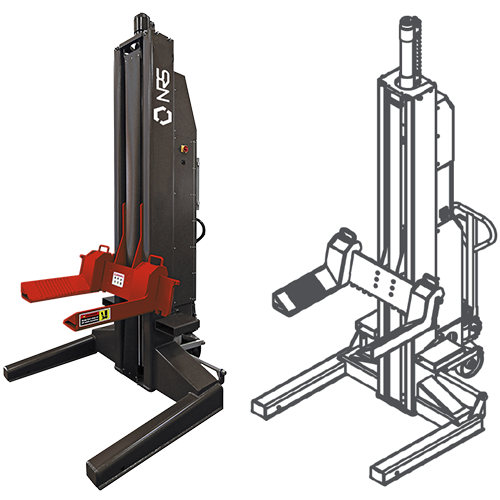

Dama HDM5500MC Mobile Column Lift
Dama HDM5500MC Mobile Column Lift
The HDM5500 has an impressive list of top quality features that go along with the impressive 5000kg lifting capacity (20,000kg for a set of 4) to offer lifting options on a variety of vehicles from Truck, Bus, forklifts, plant and agri equipment.
The Wireless mobile columns can be used individually or in 2, 4, 6, 8 …..12 for greatest variety with each one able to be set as master or slave.
The cable free operation, DC power unit and interference free wireless communication offers outstanding flexibility with no trip hazards. The forks can be adjusted from 166mm to 550mm offering lifting for the widest range of vehicles from forklift to truck and earthmover.
The HDM5500MC are easily manoeuvrable whilst being robust and stable in operation with an impressive lifting height of 1750mm, achieved in just 120s.
Price includes delivery
Technical Specification
| Maximum Lifting Weight | 5000Kg |
| Lifting Height | 0mm - 1750mm |
| Total Height | 3770mm |
| Total Width | 1348mm |
| Lifting Time | <120s |
| Power Supply | 220V / 1ph / 50Hz / 2.2KW 30 Amp |
| Net Weight | 590Kg |
| Warranty | 24 Months |

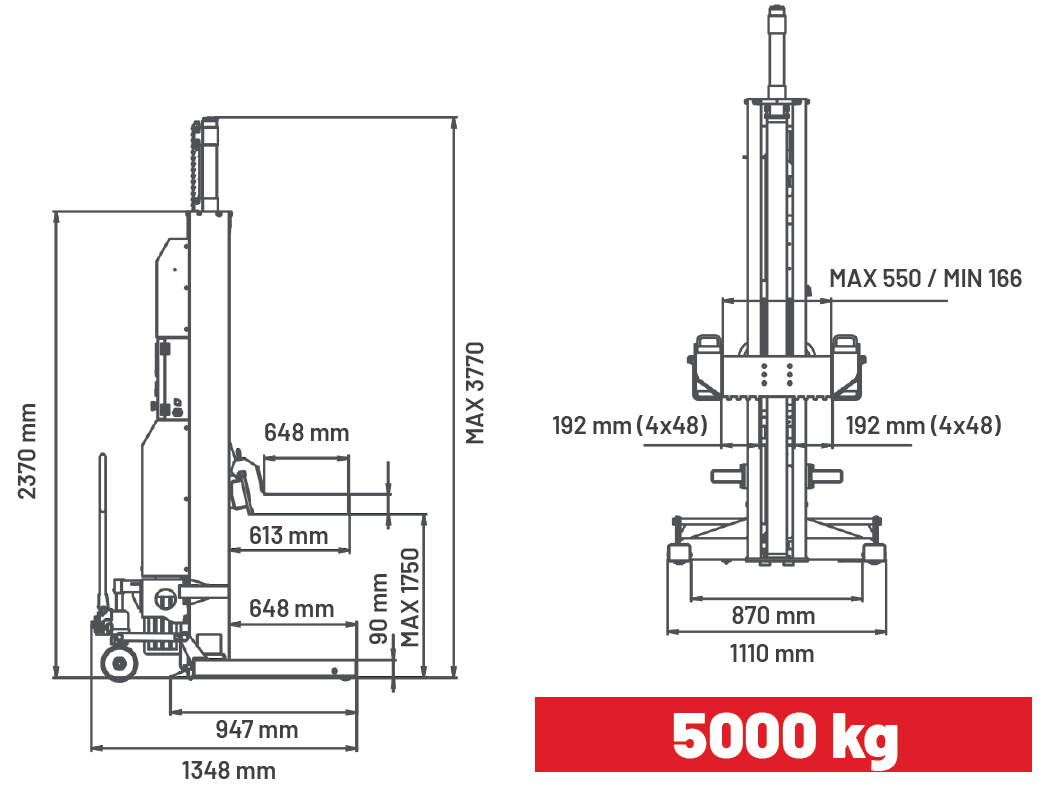

Drawings
Downloads
