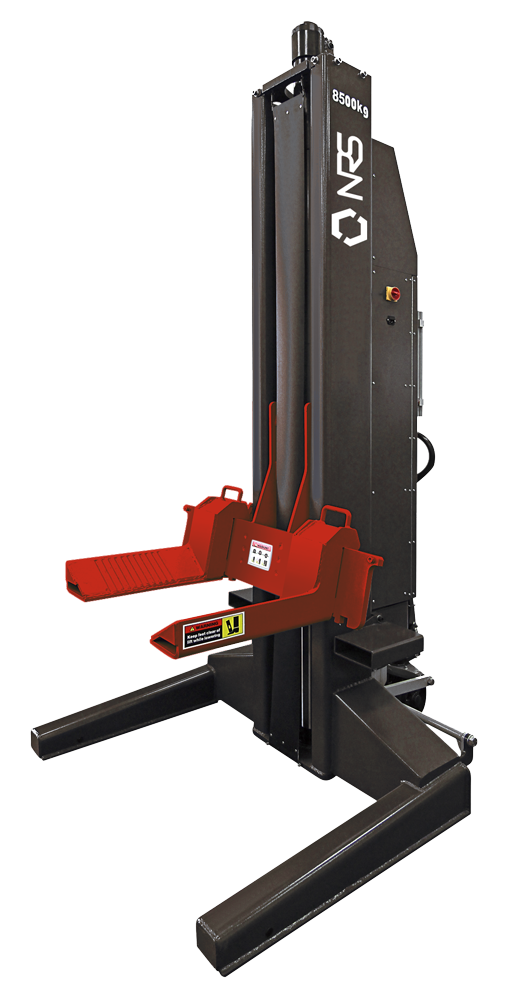

Dama HDM8500 Mobile Column Lift

Dama HDM8500 Mobile Column Lift

Dama HDM8500 Mobile Column Lift

The HDM8500 has an impressive list of top quality features that go along with the impressive 8500kg lifting capacity (34,000kg for a set of 4) to offer lifting options on a variety of vehicles from Truck, Bus, forklifts, plant and agri equipment.

The Wireless mobile columns can be used individually or in 2, 4, 6, 8 …..12 for greatest variety with each one able to be set as master or slave.

The cable free operation, DC power unit and interference free wireless communication offers outstanding flexibility with no trip hazards. The forks can be adjusted from 240mm to 624mm offering lifting for the widest range of vehicles from forklift to truck and earthmover.

The HDM8500 are easily manoeuvrable whilst being robust and stable in operation with an impressive lifting height of 1700mm, achieved in just 120s.

Sold as a set of 4.

Price includes delivery and installation for a set of 4.

£21595.00 + VAT
P/No. : hdm8500
QTY :
Lease From £117.11 Per Week
Click Here for Details

Technical Specification

Maximum Lifting Weight 8500Kg
Lifting Height 0mm - 1700mm
Total Height 3730mm
Total Width 1384mm
Lifting Time <120s
Power Supply 220V / 1ph / 50Hz / 2.2KW 30 Amp
Net Weight 810Kg
Warranty 24 Months

Drawings

Dama HDM2.5Y 1 Post Lift

Downloads

Dama Brochure

Call us now on 01823 328530 for more details
