AutopStenhoj Major 5230 4 Post Lift

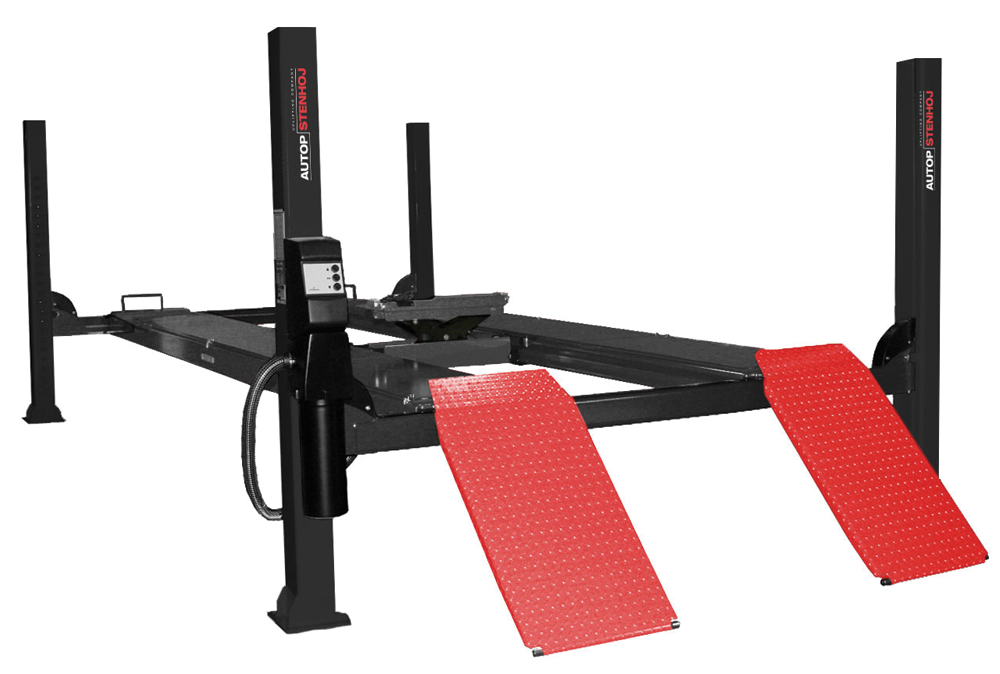

AutopStenhoj Major 5230 5.2 Tonne 4 Post Wheel Alignment Lift
The 009300 / 009320 AUTOPSTENHOJ Major 5230 four post electro-hydraulic vehicle wheel free lift (5.2 tonne) is suitable for car and van workshops.
As with all other Major Lifts, this AUTOPSTENHOJ lift is electro-hydraulically operated and is fitted with an eccentric brake and an obstruction system with alarm.
ALL AUTOPSTENHOJ four post lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
AUTOPSTENHOJ Lifts are manufactured in Denmark
Technical Specification
| Lifting capacity | 5200kg |
| Lifting / lowering time | 32 seconds / 26 seconds |
| Minimum height | 140/170/160/190mm |
| Maximum height | 1860mm |
| Platform length | 4680/5100/5500mm |
| Platform width | 630mm |
| Width between platforms (adjustable) | Yes (725mm – 1210mm) |
| Motor size | 3 kW |
| Power required | 3 Phase – 16a isolator required |
| Operation | Electro-hydraulic |
