AutopStenhoj Major 4030 4 Post Lift

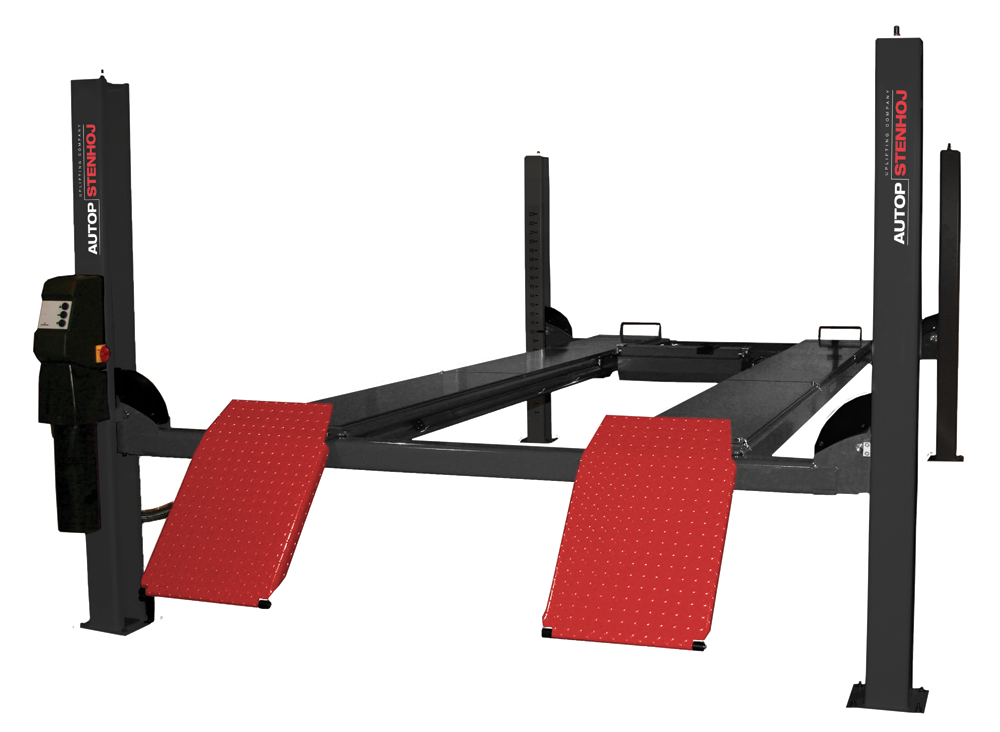

AutopStenhoj Major 4030 4 Tonne 4 Post Wheel Alignment Lift
The AUTOPSTENHOJ Major 4030 Series of Wheel Alignment Four Post Lifts are available in two different models (009180 / 009200) with different platform lengths and with lifting capacities of 4 tonnes. As with all other Major Lifts, these lifts are electro-hydraulically operated and are fitted with an eccentric brake and an obstruction system with alarm.
The platform on the right hand side of the lift is also adjustable for extra wide/narrow vehicles.
WL Models come with front recesses for turn plates and rear slip plates – ideal for wheel alignment
ALL AUTOPSTENHOJ four post lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
AUTOPSTENHOJ Lifts are manufactured in Denmark
Technical Specification
| Lifting capacity | 4000kg |
| Lifting/ lowering time | 24 seconds / 26 seconds |
| Minimum height S / WL | 140mm / 160mm |
| Maximum height | 1810mm |
| Platform length 4030 – 47S/WL / 4030 – 51S/WL | 4680mm / 5100mm |
| Platform width | 550mm |
| Gap between platforms | Adjustable – 805mm – 1285mm |
| Motor size | 3 kW |
| Power Requirements | 3 phase – 16a Isolator Required |
| Operation | Electro-hydraulic |
Call us now on 01823 328530 for more details
