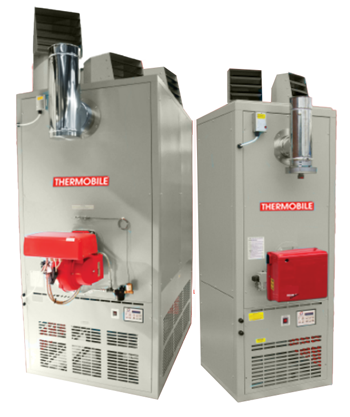

Thermobile PSO Oil Fired Cabinets
Thermobile PSO Oil Fired Cabinets
Connects to a bulk fuel tank
The PSO range of heaters from Thermobile provide efficient and cost effective heating solutions for a wide variety of industrial, commercial and retail buildings.
- Oil fired heaters can be specified at time of ordering for operation on either Class D light distillate fuel oil - 35 second gas oil, kerosene - 28 second oil (Model dependent) and bio fuel oil B10 (10% maximum).
- Combustion air inlet as standard
- Thermostat, time control, oil filter and fire valve
- Main fan filters available
Efficiency and ErP Compliance
From 1st January 2018 all warm air heaters used to provide comfort for the occupants of a heated space are required to meet minimum standards of ‘seasonal’ efficiency as determined by the Ecodesign regulation (EU) 2015/1188, Directive 2009/125/EC - Lot 21 Tier 1. Compliance to the standard is mandatory.
The calculation for seasonal efficiency takes into account air flow, temperature rise across the heat exchanger, electrical power consumption as well as the usual thermal efficiencies.
PSO heaters placed on the market after 1st January 2018 comply with the requirements of the standard.
Installers and customers will note that in pursuit of increased efficiency when ErP legislation is implemented PSO heaters will no longer be available in on/off configuration other than for non-personnel heating applications. For most space heating applications high/low heat output will be standard with modulation as an option.
Installer Benefits
- Factory fitted and pre-wired controls
- Plain side panel option to provide siting flexibility
- Primary flue tee fitted as standard
- Stainless steel combustion chamber as standard
- Increased static pressure options (Model restrictions apply)
Peace Of Mind
- More than sixty years experience in warm air
- Two year parts and one year labour guarantee
- Ten-year time related heat exchanger warranty
- Full technical support
Technical Details
| PSO 30 | PSO 45 | PSO 60 | PSO 90 | PSO 120 | ||
|---|---|---|---|---|---|---|
| Capacity Btu/hr (1) | Max | 102,000 | 153,600 | 205,352 | 307,000 | 409,000 |
| Heat Output | Kw | 30 | 45 | 60 | 90 | 120 |
| Fuel Consumption L/h (1) | Min | 3.16 | 4.83 | 6.38 | 9.70 | 12.95 |
| Air Flow | m3/s | 0.58 | 0.86 | 1.15 | 1.73 | 2.30 |
| Flue Connection | mm | 125 | 125 | 150 | 150 | 150 |
Pricing
The following prices exclude installation and flue.
PSO 30
PSO 45
PSO 60
PSO 90
PSO 120
Call us now on 01823 328530 for more details
