Ford VCMM Kit

Ford VCMM Kit

Ford VCMM Kit
£4995.00 + VAT
P/No. : vcmm

Ford Vehicle Communication & Measurement Module (VCMM) diagnostic kit

The Vehicle Communication & Measurement Module (VCMM) combines all of the functionality of the VMM, VCM II, and a vibration analyser in an industry leading one-box solution.

The combining of this functionality will provide dealers with industry leading diagnostic capability at a significantly lower cost of ownership.

Key Features:

  • Vehicle Communication (VCM II capability)
  • Customer Flight Recorder capable
  • 4-Channel Oscilloscope
  • 4-Channel Digital Multi-meter
  • 5th-Channel direct monitoring of the DLC connector
  • Vibration Analysis
  • Signal Generator

NOTE: The VCMM will run on any Windows 7 or higher operating system that has 8GB of RAM or higher which also has a valid IDS software license subscription. IDS software licenses are sold separately from the VCMM

Technical Specification

4/5 Channel Oscilloscope

  • Improved user interface from VMM
  • Four independent differential Input Channels enables independent monitoring of signal types such as monitoring voltage while concurrently measuring voltage drop across the circuit.
  • A Fifth High Speed Channel that can directly monitor CAN signals at the DLC connector
  • Capture/Record capability to assist in capturing intermittent issues
  • Advanced Triggering capability
  • Pre-Configured setup configuration for common signals and procedures
  • New “Time/Angle” time based settings (CKP/CMP timing diagnostics)

Vibration Analysis

  • Improved user interface with reduced configuration and setup time
  • Color display
  • Record capacity

The Digital Multi-Meter

  • Monitor up to four independent readings at the same time
  • Capture/Record history
  • Graphing capability for up to two channels
  • Voltage, Current, Resistance, Pulse Width, Duty Cycle, Frequency and Period

Signal Generator

  • User configurable settings for signal waveform types: sine, square, triangle, pulse generator, DC voltage and arbitrary.
  • Verify integrity of module input wiring and the module hardware
  • Improved interface and greater adjustability of voltage and frequency

System Requirements

The VCMM will run on any Windows 7 or higher operating system that has 8GB of RAM or higher.

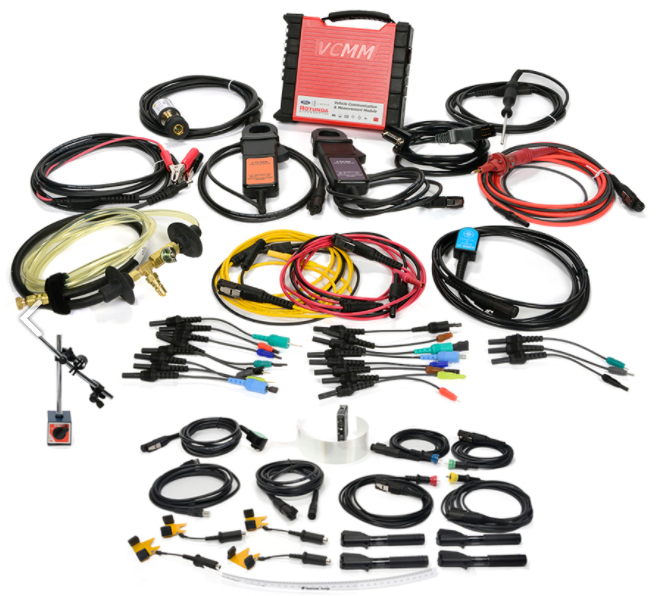

Package Contents

  • VCMM Testing cables, probes, AMP clamps, fluid fitting, hoses
  • Signal generator
  • Digital multi meter
  • Power supply
  • Kit bag

Package Deal

VCMM Kit Package combines a high specification, semi-rugged, Panasonic CF-54 laptop, with a large, bright 14 inch LCD screen with new VCMM kit and software pre loaded onto the laptop and 1 months licence included

£5995.00 + VAT
P/No. : vcmmpack

Product Support

We are able to offer a Guaranteed Genuine Equipment Product Support Service for the above product.

1 HOUR Support

£80.00 + VAT
P/No. : oetestersuphour
Currently Unavailable

Sign-on Fee

Alternatively if you already have a genuine interface and want our high quality product support, after paying the sign-on fee you can benefit from the same high quality product support.

£262.50 + VAT
P/No. : oetesterson
