Dama HDM450 4 Post Lift
Dama HDM450 4 Post Lift

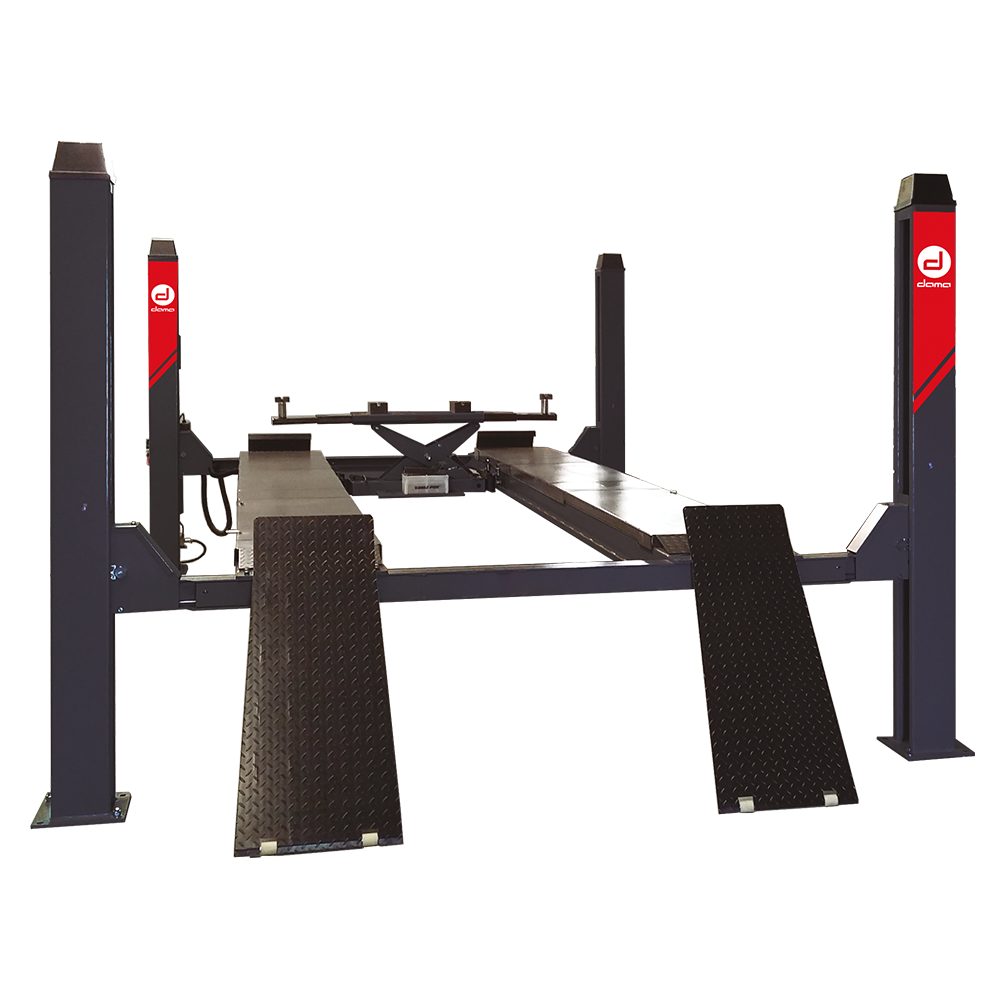

This 4.5t 4 post lift is both a service lift and a wheel alignment lift, having built-in rear slip plates and is recessed for front turnplates, plus has an automatic pneumatic locking system. This lift offers a wheel alignment option at an outstanding price.
Because the rear slip plates are lockable and the lift comes with covers for the turnplate recesses the lift is quickly converted to a standard flat platform service lift ideal for a variety of vehicles and tasks.
With a 5220mm platform length and 2860mm between the posts the lift is also large enough to take longer Vans, 4x4’s and motorhomes. The lift has a 4.5t lifting capacity and lifting time of 60 seconds.
Price includes delivery and installation. Price EXCLUDES jacking beam.
Features
- Service and wheel alignment
- Rear lockable slip plates
- Turnplate recesses with covers4 column electrohydraulic lift
- 1 hydraulic cylinder and 2 steel cables
- Synchronisation using steel cable
- Solenoid valve for lowering
- Release of penumatic / manual safety lock
- Pneumatic jacking beam available
- Anti toe trap function
- Single Phase & 3 Phase
- Safety rope switches
Technical Specification
| Maximum Lifting Weight | 4500Kg |
| Lift Total Length | 5500mm (6250mm with runup ramps) |
| Platform Length | 5220mm |
| Overall Width | 3360mm |
| Distance Between Posts | 2860mm |
| Variable Turnplate Position | 827mm |
| Rear Slip Plate Length | 1400mm |
| Lifting Time | 60 seconds |
| Lowering Time | 18 - 40 seconds |
| Power Supply | 400V / 3ph / 50Hz 4.33A / 2.2Kw 230V / 1ph / 50Hz 11.8A / 2.2Kw |
| Warranty | 24 Months |

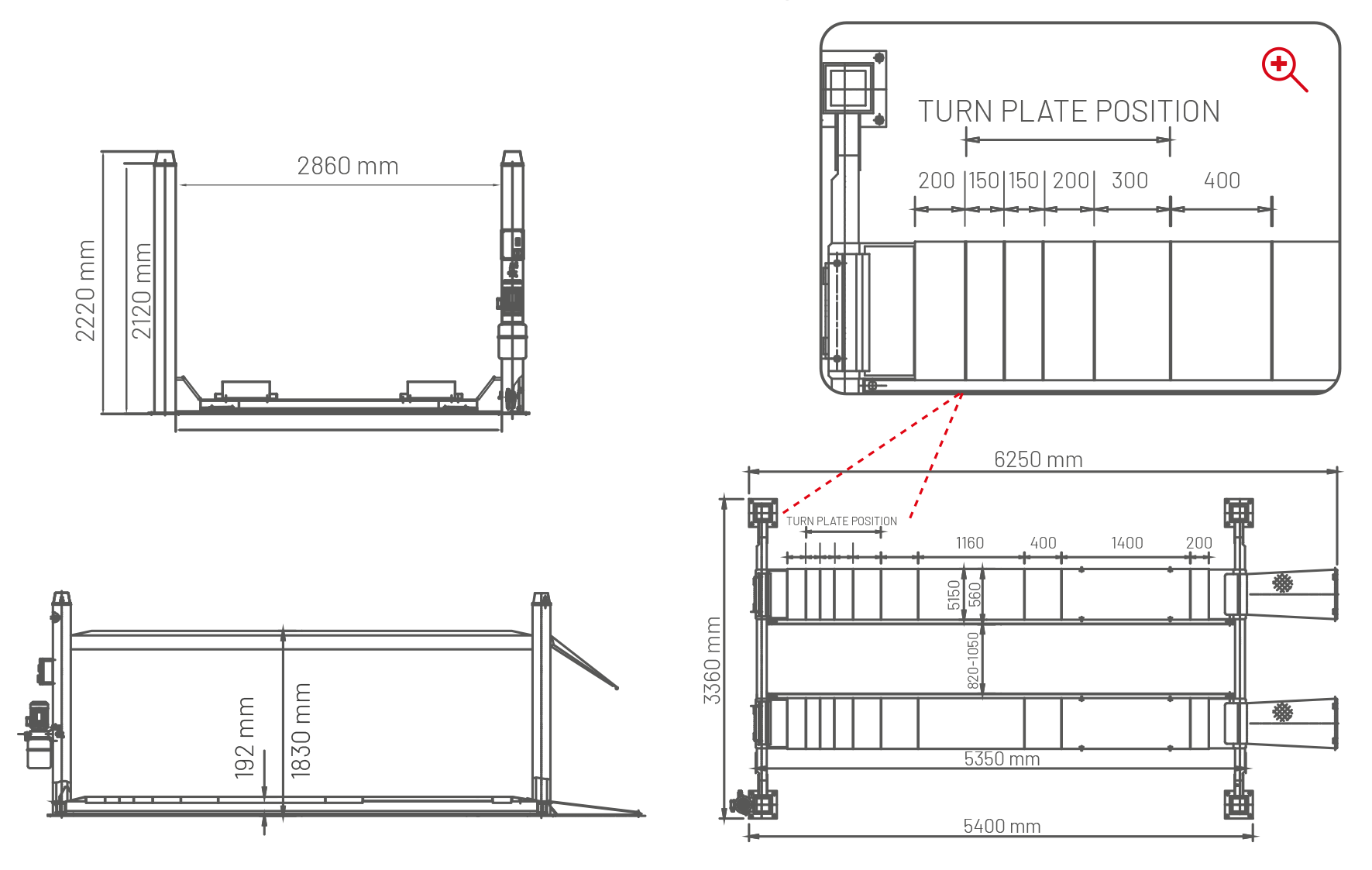

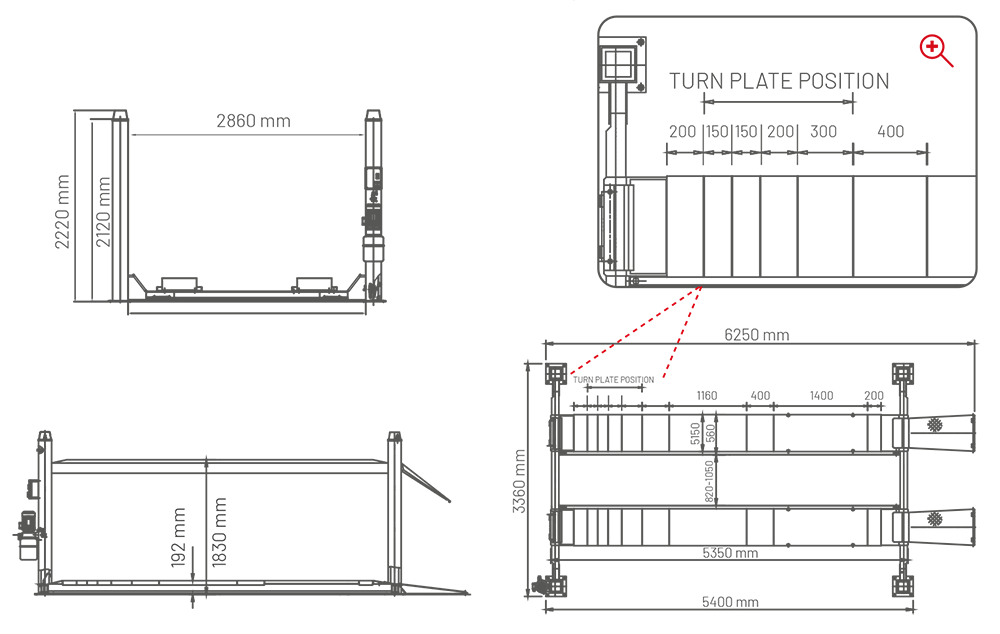

Drawings
Downloads
