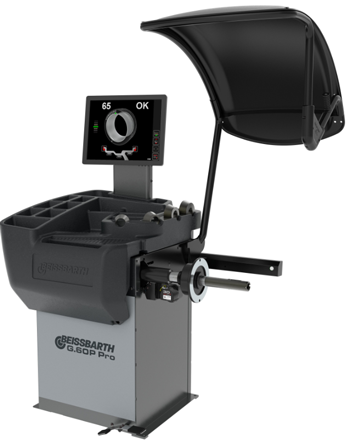

Beissbarth G.60P Pro Wheel Balancer
Diagnostic wheel balancer for professionals
- Pneumatic clamping system
- Automatic wheel recognition
- 19" touchscreen
- 3D laser scanner + outer line laser
- Wheel guard with sonar for steel and aluminum wheels
- Auto stop function
- One-Plane Balancing
- Runout sonar
- Hubmatching
Diagnosis wheel balancer for passenger cars, designed by professionals for professionals, with fully automatic wheel detection
Measurement and balancing:
- Balancing in 4.7 seconds
- Stops wheel automatically in exact correction position
- LED for increased visibility when placing weights
- Internal laser point for precise weight positioning
- External line laser for clip-on weights
- Split program for hiding weights behind spokes
3D Laser Scanner
- Contactless measurement of distance, rim width, and rim diameter
- Optimized for black and glossy rims
- No data arm or measuring gauge, everything fully automatic
Wheel Data Detection
- Fully automatic wheel data detection
- Automatic selection of clip-on and adhesive weights program
- Highest measurement accuracy of ±0.5g
- Balancing program starts automatically when closing the wheel guard
Auto Adaptive Mode
- Dynamic tolerance adjustment based on weight and size
- Minimizes remaining imbalance in smaller and lighter wheels
- Eliminates smallest vibrations noticeable by the driver
- Especially suitable for electric cars with light wheels
Wheel guard with integrated sonar
- Automatic recognition of rim width in steel and aluminium rims
- Without manual input with measuring gauge
- Closing of wheel guard automatically starts balancing program
19" touchscreen monitor
- Graphical step-by-step illustrations
- Simplifies correct balancing with guided processes
- Touchscreen usbale with gloves on
Secure pneumatic clamping
- Pneumatic clamping with 250kg clamping force
- Ensures consistent clamping for all four wheel
- Wheel weights up to 75kg
- Optional with wheel lift
One Plane Balancing
- Eliminates dynamic imbalance with only one weight instead of two
- Fewer correction positions on the rim
- Less consumption of weights
Pro Version with diagnostic function
- Automatic height deviation measurement with every balancing operation (4.7 seconds)
- Hubmatch: eliminates vibrations by rotating the tire on the wheel
- Eliminates even the slightest vibrations without the need for an expensive roller
Scope of Delivery
- 4 cones Ø45-111mm
- Quick lock sleeve SE2
- Clamping nut
- Distance piece
- Rubber ring
- 60g counterweight
- Weight pliers
- Measuring gauge
Technical Data
| Max. wheel diameter | 44" | 1117mm |
|---|---|
| Weight | 130 kg |
| Shaft diameter | 40 mm |
| Measuring speed | 100 rpm |
| Measuring time | 4,7 s |
| Display | 19" Industrial Touchscreen |
| Max. rim width | 20 " |
| Rim diameter max. | 30 " |
| Wheel weight max. | 75 kg |
| Length | 1300 mm |
| Height | 1770 mm |
| Power supply | 230 V | 50 - 60 Hz | 1 ph |
| Width | 1300 mm |
| Motor power | 0,15 kW |
| Rim diameter min. | 10 " |
| Number of cones | 4 |
| Balancing accuracy +/- | 0,5 g |
| Packaging length | 1480 mm |
| Packaging width | 1130 mm |
| Packaging height | 1165 mm |
| Country of Origin, customs | IT |
| Min. rim width | 1,5 " |
| Air flow | 7 - 10 bar |
| Wheel data recording | fully automatic |
| Stackable | 2 Piece(s) |
| Units per 20ft container | 13 Piece(s) |
| Units per 40ft container | 30 Piece(s) |
