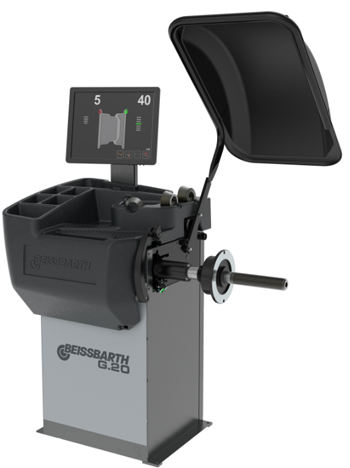

Beissbarth G.20 Wheel Balancer

Beissbarth G.20 Wheel Balancer

Entry-level wheel balancer

  • Mechanical clamping
  • Automatic data arm
  • 17" touchscreen
  • Inside line laser
  • Wheel guard with virtual sonar for steel rims

Precise balancing in tight spaces: Compact car wheel balancer

Measurement and balancing:

  • Balancing in 4.7 seconds
  • Automatic stop of the wheel 15° before correction position
  • LED for better visibility when placing weights
  • Internal line laser for precise positioning of weights
  • Split program for hiding weights behind different spokes

Wheel data recognition:

  • Automatic data arm for measuring distance and diameter and weight placement
  • Automatic selection ofclip-on and adhesive weight program
  • Highest measurement accuracy ±0.5g

Auto Adaptive Mode:

  • Dynamic tolerance adjustment based on weight and size
  • Minimizes remaining imbalance in smaller and lighter wheels
  • Eliminates smallest vibrations noticeable by the driver
  • Especially suitable for electric cars with light wheels

Wheel guard with virtual sonar:

  • Automatic recognition of rim width in steel rims
  • Without manual input with measuring gauge or sonar
  • Closing of wheel guard automatically starts balancing program

17" touchscreen monitor:

  • Graphical step-by-step illustrations
  • Simplifies correct balancing with guided processes
  • Touchscreen usbale with gloves on

Quick clamping:

  • Mechanical clamping with quick-lock nut
  • Stable 40mm shaft
  • Wheel weights up to 75kg
  • Optional with wheel lift

Scope of delivery:

  • 3 cones Ø45-111mm
  • Quick-lock nut GL40
  • Clamping sleeve
  • Spacer
  • Rubber ring
  • 60g counterweight
  • Weight pliers
  • Measuring gauge

Technical Data

Max. wheel diameter 36" | 914mm "
Weight 110 kg
Shaft diameter 40 mm
Measuring speed 100 rpm
Measuring time 4,7 s
Display 17" Industrial Touchscreen
Max. rim width 20 "
Rim diameter max. 30 "
Wheel weight max. 75 kg
Length 1100 mm
Height 1550 mm
Power supply 230 V | 50 - 60 Hz | 1 ph
Width 960 mm
Motor power 0,15 kW
Rim diameter min. 10 "
Number of cones 3
Balancing accuracy +/- 0,5 g
Packaging length 1100 mm
Packaging width 700 mm
Packaging height 1165 mm
Country of Origin, customs IT
Min. rim width 1,5 "
Wheel data recording semi-automatic
Stackable 2 Piece(s)
Units per 20ft container 30 Piece(s)
Units per 40ft container 66 Piece(s)
