Draper Expert 40A 230V Plasma Cutter Kit

Draper Expert 40A 230V Plasma Cutter Kit
£310.58 + VAT
P/No. : dra78636

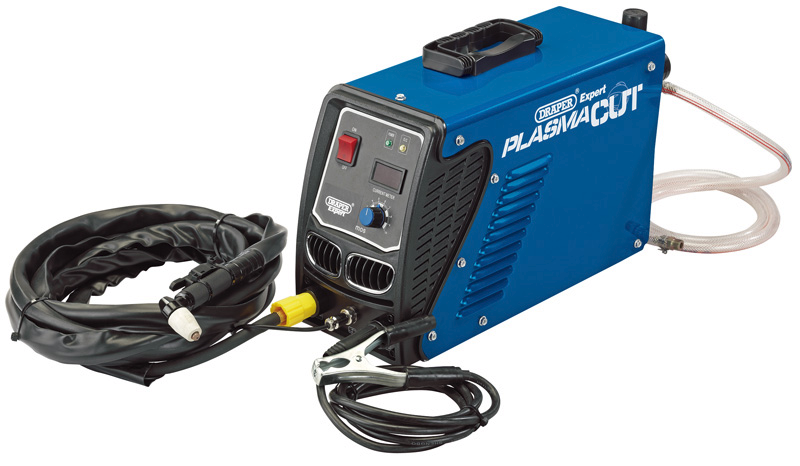

Draper Expert 40A 230V Plasma Cutter Kit

The Draper Expert Plasma cutter offers exceptional performance at an economical price. The 230V, 40amp cutting current enables all conductive materials to be cut up to 12mm. Ideal for bodyshops, site maintenance and engineering sectors, this popular cutter requires a 32amp input current and minimum 9CFM compressed air supply.

The Draper Expert Plasma cutter comes as a complete kit with the torch and all other necessary accessories.


  • Expert Quality
  • Microprocessor controlled inverter technology
  • Suitable for cutting any electrically conductive material
  • Input current 32A
  • Thermal overload protection
  • Supplied with plasma torch, earth lead and clamp, air regulator, air hose, chipping hammer with brush and face mask
  • Requires an air compressor delivering a minimum of 8.8 cfm

Technical Specification

  • Rated max. supply current 4kW
  • Cutting current range 20-40A
  • Input current 32A
  • Cutting range 12mm (mild steel.)
  • Amperage at 60% duty 40A
  • Dimensions 460 x 270 x 345mm
  • Air Required 8.8 cfm
  • Weight 10kg
