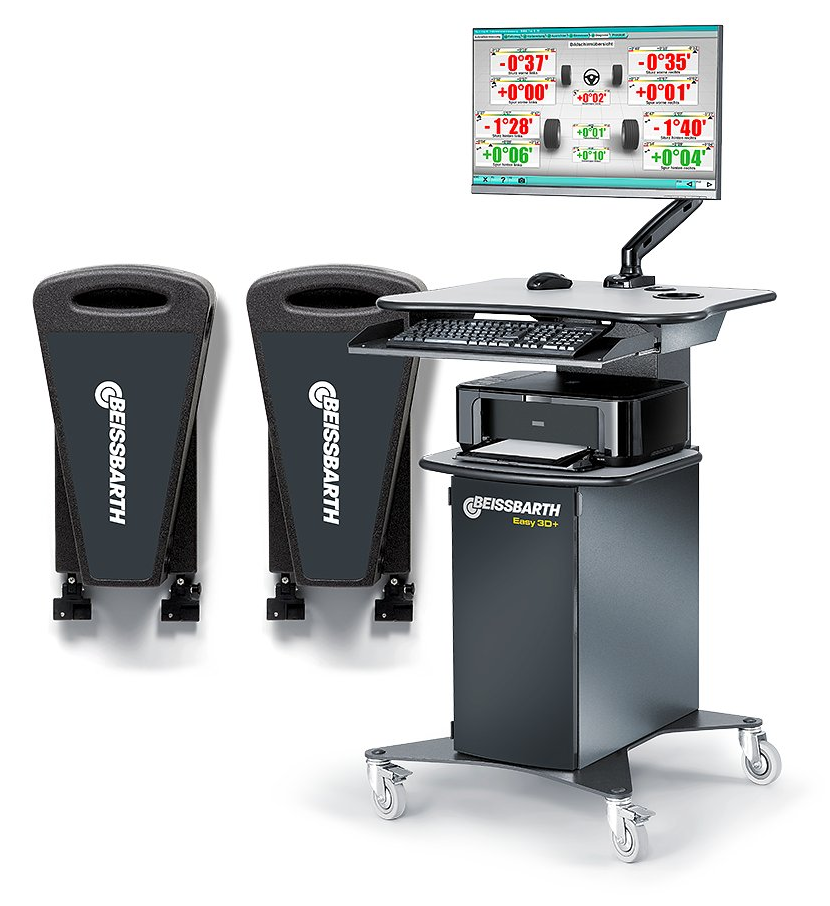

Beissbarth 3D+ Wheel Alignment

Beissbarth 3D+ Wheel Alignment

Wheel Alignment with 3D technology

  • High speed, high precision and easy to use
  • WLAN version
  • With cabinet, HighPerformance PC, 27" monitor and printer
  • Incl. lift adapter, turntable, wheel clamps and OEM magnetic clamp

NEW: Now with SmartTest - Quick alignment check with printout in under 90 seconds

  • Highly automated routine
  • Automatic target recognition
  • Automated printout of protocol and reset for next vehicle check

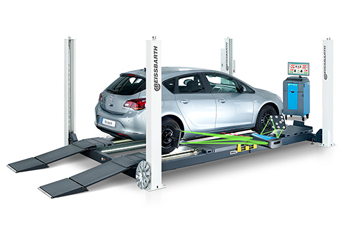

Perfectly integrated in ADAS calibration and head light testing:

  • The space in front of the lift can be used for the ADAS calibration jig and head light tester
  • Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle
  • No need for extra cameras, cables, or clamps required for DAS calibration

Best in class: +/- 2 minute accuracy:

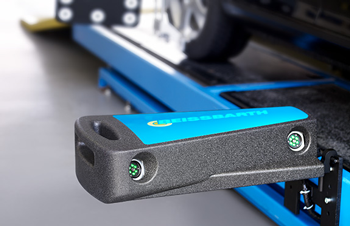

  • Sensor heads can be easily detached from the lift when not in use to clear up space

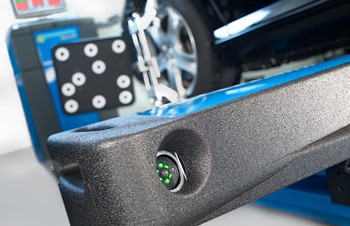

  • Beissbarth DualView camera system for ultimate control, especially of complex chassis
  • No fixed position for targets on the vehicle eliminates room for error
  • Plug & play: no calibration required for installation or for exchanging Targets
  • Extensive Beissbarth vehicle database including alignment helps directly from the OEMs
  • High quality wheel clamps with torque control for safe mounting on the rim
  • Quality Made in Germany
  • Also available as Kit version; ideal for existing alignment bays

Scope of delivery:

  • Sensor head with DualView camera technology
  • +Software with SmartTest and ADAS calibration option
  • WLAN/Bluetooth communication box
  • Target boards
  • Vehicle specs database
  • Cabinet
  • HighPerformance PC
  • 27" Monitor
  • Printer
  • Multi-Fit wheel camp 13" - 22" with standard and Softline claws
  • OEM magnetic clamp
  • Lift Adapter
  • Turntable
  • Remote control
  • Brake pedal depressor and steering wheel holder

Technical Data

Operating temperature 5 - 40 °C
Measuring system - 3D
Storage temperature -20 - 60 °C
Relative humidity, use (40 °C) 10 - 90 %
Height cabinet 1520 mm
Width cabinet 880 mm
Depth cabinet 770 mm
Weight cabinet 110 kg
Height sensor head 120 mm
Width sensor head 320 mm
Depth sensor head 630 mm
Weight sensor head 9,3 kg
Height WLAN box 627 mm
Width WLAN box 250 mm
Depth WLAN box 131 mm
Weight WLAN box 7,4 kg
Degree of protection WLAN box IP 54
