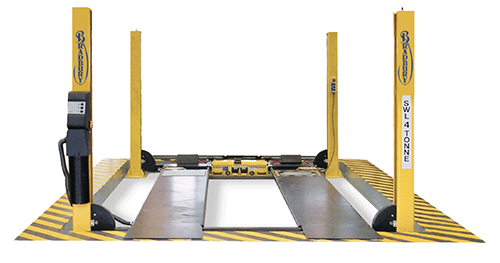

Bradbury H4403ATL SL 4 Post MOT Lift
Bradbury H4403ATL SL 4 Post MOT Lift
The Bradbury H4403ATL SL Approved 4 Post ATL Lift is suitable for one man MOT testing of class IV vehicles. This is the bigger version of the SR model with a wider drive through width and wider platforms. As standard, the lift features a powerful pneumatically operated play detector which is operated with a robust wireless handset and heavy duty turntables recessed into the platforms.
Features
- Safe & Reliable Hydraulic Operation
- Complete with recessed radius plates and air operated play detector
- Low profile platform
- Anti tilt system
- Emergency stop button
- Automatic parking system
- Eccentric brake system
- DVSA Approved for IV Testing
- Magnetic wireless handset standard
- 3 tonne lateral and rotational play detector standard
Technical Specification
| Maximum Lifting Weight | 4000Kg |
| Lifting Time | 24-26 secs |
| Platform length | 4360mm |
| Overall length | 4540mm |
| Overall width | 3030mm |
| Drive through width | 2600mm |
| Each platform width | 630mm |
| Distance between platforms | 855mm |
| Minimum/maximum lifting height | 140/1810mm |
| Air Supply | 8 Bar |
| Electrical Supply – 3 Phase | Motor 380 – 415V, 3kW |
| Motor Size | 3kW |
| Warranty | 24 Months |

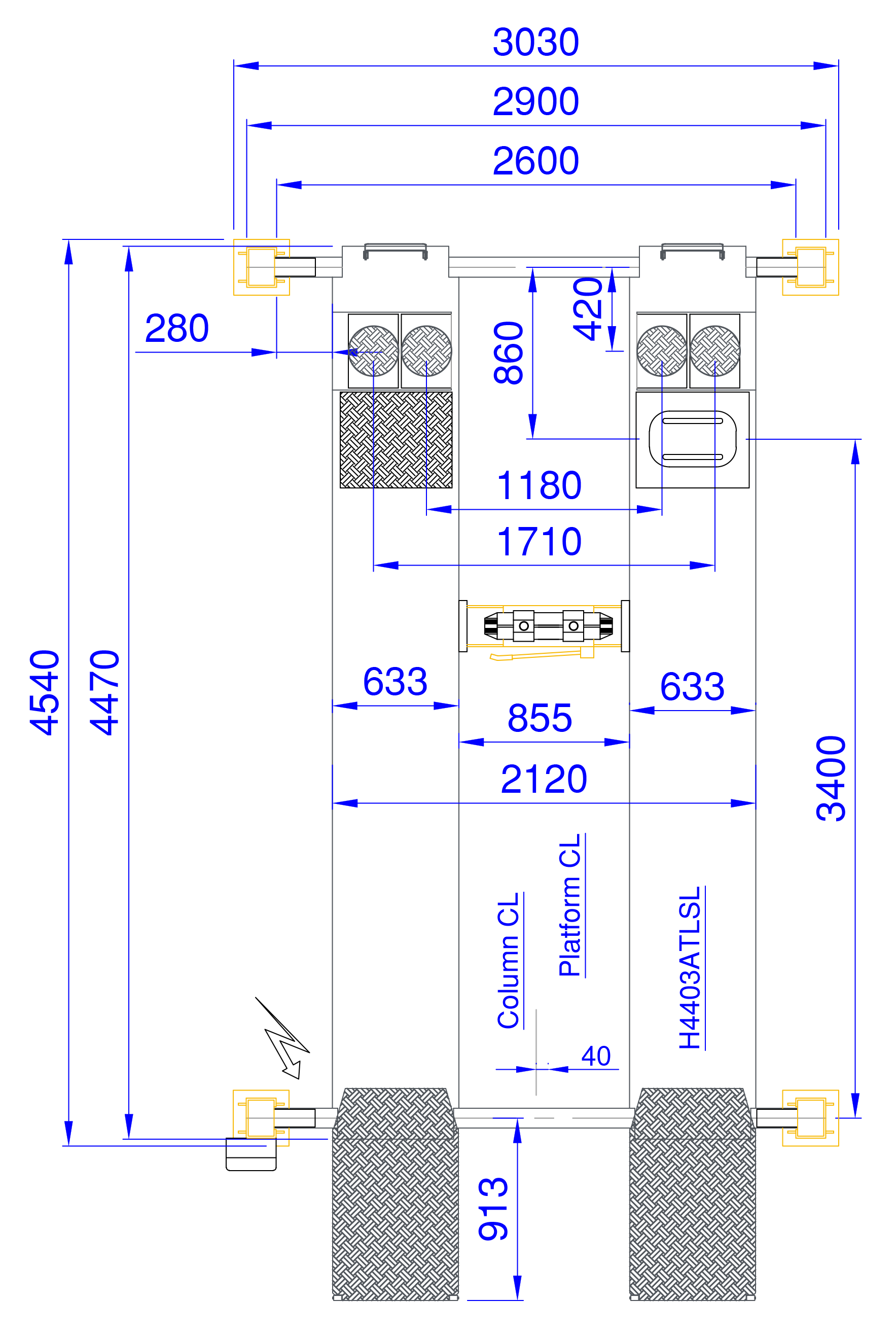

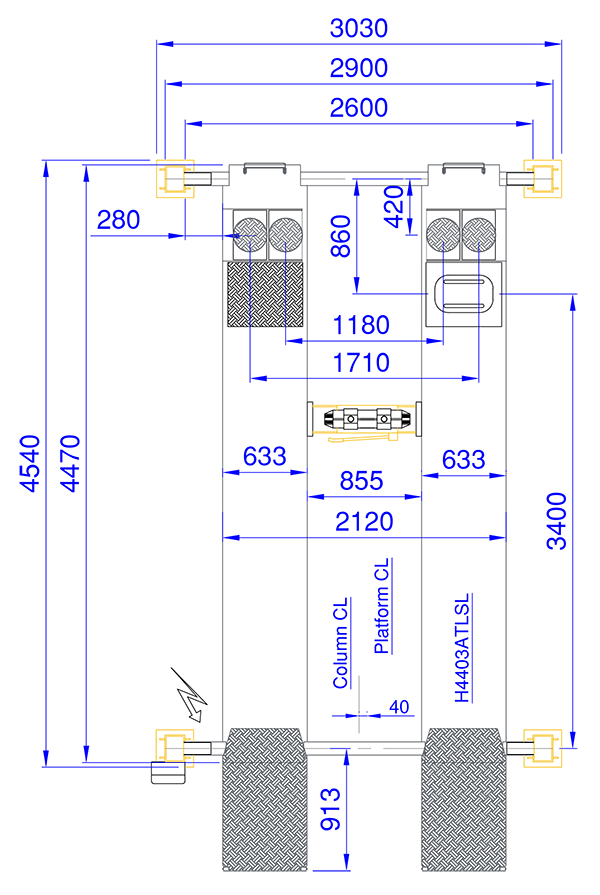

Drawing
