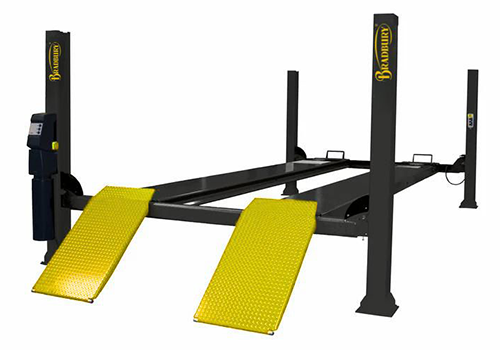

Bradbury H4483ATL LWB 4 Post MOT Lift
Bradbury H4483ATL LWB 4 Post MOT Lift
The Bradbury H4483ATL LWB Approved 4 Post ATL Lifts are suitable for one man MOT testing of class IV, VII & VL vehicles and have been specifically designed to accommodate workshops with less space. As standard, these lifts feature a powerful pneumatically operated play detector which are operated with a robust wireless handset and heavy duty turntables recessed into the platforms.
Features
- Safe & Reliable Hydraulic Operation
- Complete with recessed radius plates and air operated play detector
- Low profile platform
- Anti tilt system
- Emergency stop button
- Automatic parking system
- Eccentric brake system
- DVSA Approved for IV, VII and VL Testing
- Magnetic wireless handset standard
- 3 tonne lateral and rotational play detector standard
Technical Specification
| Maximum Lifting Weight | 4800Kg |
| Lifting Time | 24-26 secs |
| Platform length | 5710mm |
| Overall length | 5780mm |
| Overall width | 3430mm |
| Drive through width | 3000mm |
| Each platform width | 630mm |
| Distance between platforms | 915mm |
| Minimum/maximum lifting height | 140/1800mm |
| Air Supply | 8 Bar |
| Electrical Supply – 3 Phase | Motor 380 – 415V, 3kW |
| Motor Size | 3kW |
| Warranty | 24 Months |

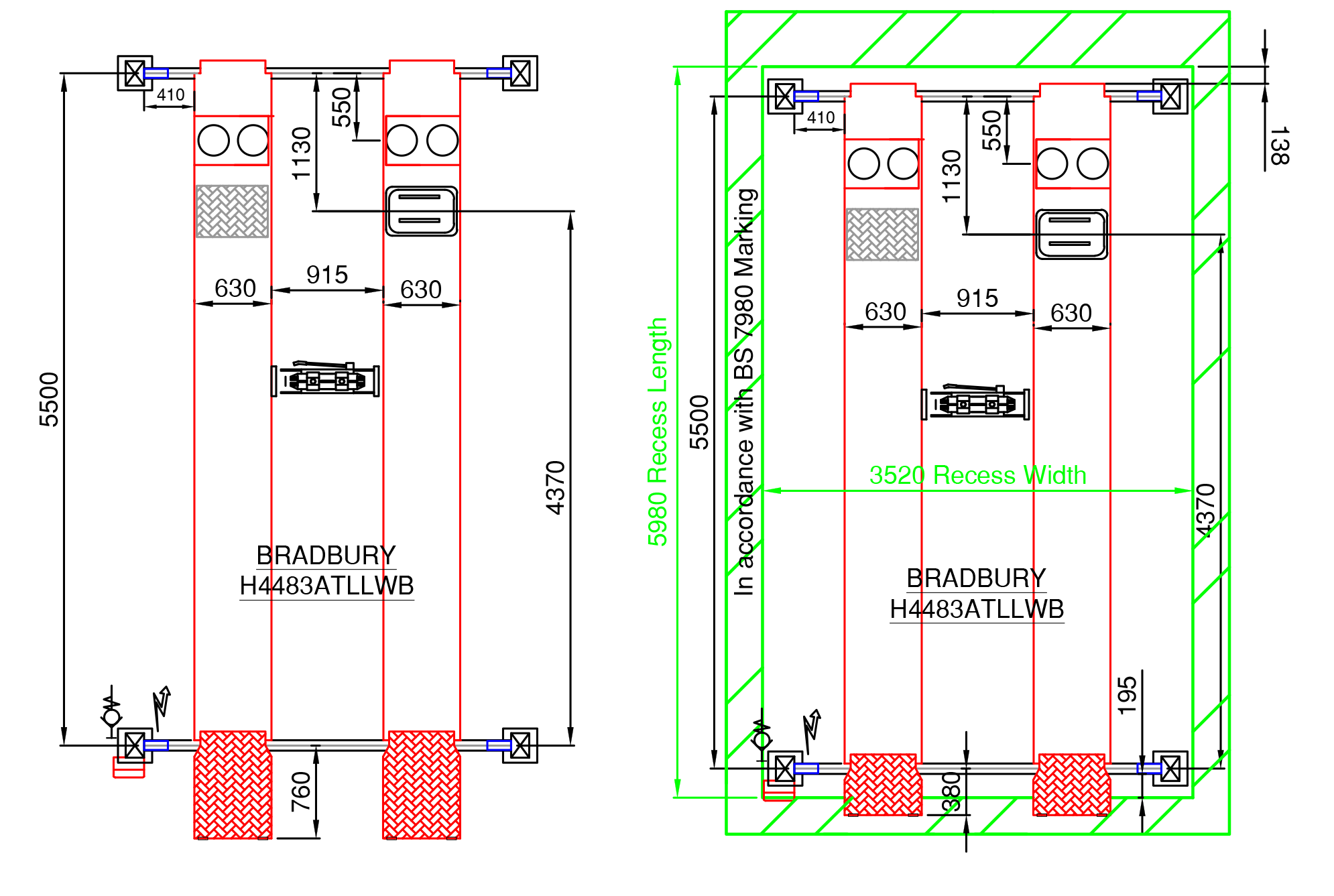

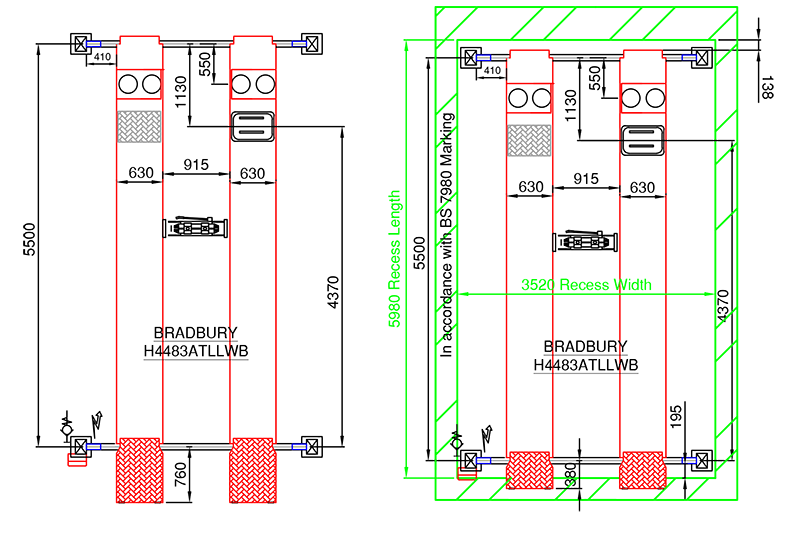

Drawing
Call us now on 01823 328530 for more details
