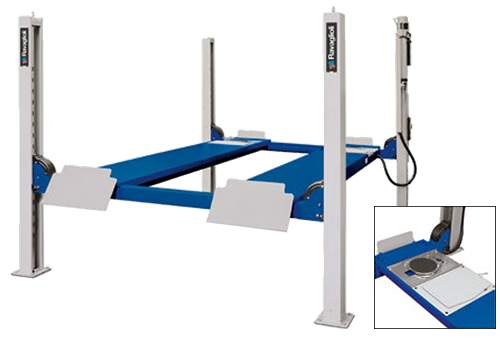

Ravaglioli 4401.3IMOT4 4 Post ATL MOT Lift
Ravaglioli 4401.3IMOT4 4 Post ATL MOT Lift
Main Features
- The hydraulic cylinder is located within the platform to protect it from the harsh environment of a workshop
- Lift cables are pre-stretched to avoid the need for an early life adjustment
- Lift cables are made from a galvanised, hard wearing metal enabling a long working life
- Large radius pulleys provide strong mechanical lift and reduce workload on motor
- Pulleys are self-lubricating and bushes are maintenance free
- Pneumatically released safety locks that trigger in the unlikely event a cable slackens or fails
- Safety locks allow work to be carried out without a strain on the lift cables
P/No. : rav44013imot4
Technical Specification
| Lifting capacity | 4000kg |
| Lowered Height | 160mm |
| Platform length | 4460mm |
| Platform width | 630mm |
| Power Requirements | 3 phase |
| Turnplates | Included |
| Hydraulic Shaker Plates | Included |

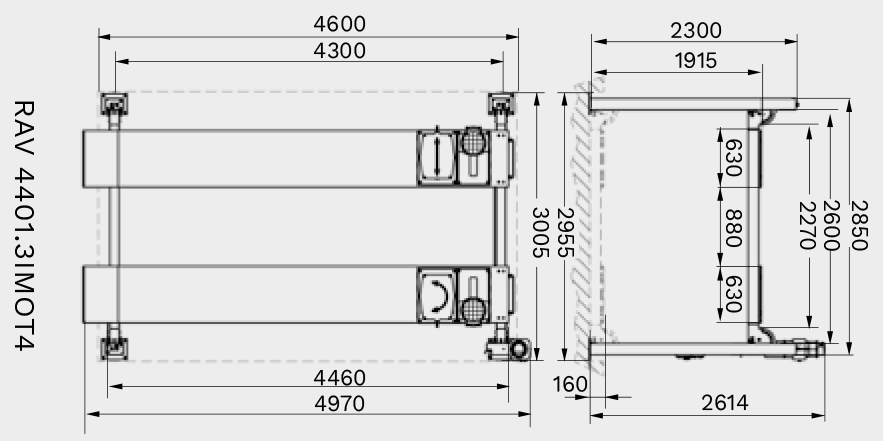

Drawings
Call us now on 01823 328530 for more details
