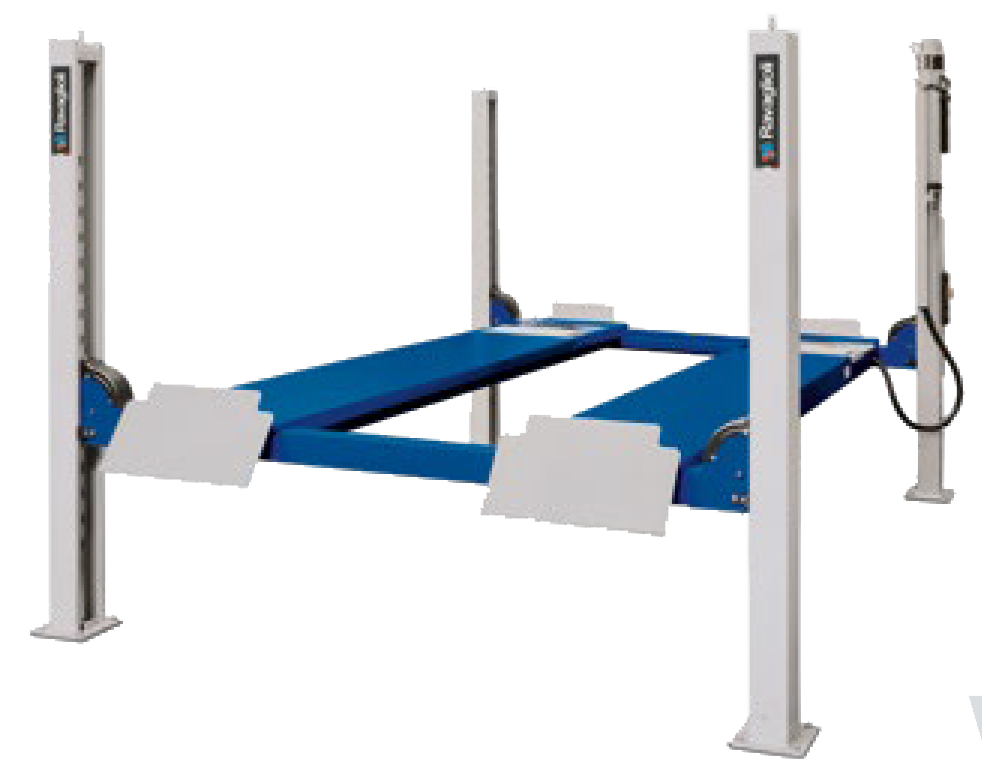

Ravaglioli 4502.3IMOT7 ATL 4 Post Lift
Ravaglioli 4502.3IMOT7 ATL 4 Post Lift
5 tonne four post electro-hydraulic lift, class 7 ATL.
MOT alignment lift with built-in rear slip plates.
Technical Specification
| Lifting capacity | 5000kg |
| Lowered Height | 210mm |
| Platform length | 5700mm |
| Platform width | 650mm |
| Power Requirements | 3 phase |
| Turnplates | Included |
| Hydraulic Shaker Plate | Included |
| Built in rear slip plates W/A | Included |

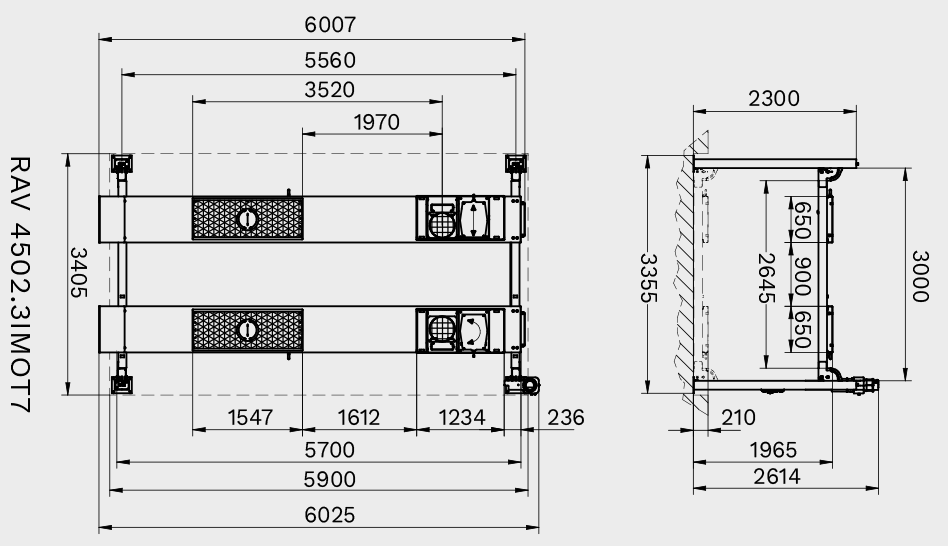

Drawings
