Bradbury H4403MOT 4 Post MOT Lift
Bradbury H4403MOT 4 Post MOT Lift
The H4403MOT DVSA Approved 4.0 Tonne Four Post MOT Lift is suitable for two man MOT testing of class IV vehicles.
This lift benefits from a low profile platform, automatic parking system, eccentric brake system, emergency stop button and an anti-tilt system.
Features
- 4 tonne lifting capacity
- 140mm minimum height
- 1810mm maximum height
- 4280mm platform length
- Electro-hydraulic operation
- 2600mm drive through width
- 24/26 seconds lifting / lowering time
- 3 kW motor size
- 3 phase
Technical Specification
| Maximum Lifting Weight | 4000Kg |
| Lifting/Lowering Time | 24-26 secs |
| Platform Length | 4280mm |
| Overall Length | 4425mm |
| Overall Width | 3022mm |
| Drive Through Width | 2600mm |
| Each Platform Width | 550mm |
| Distance Between Platforms | 840mm |
| Minimum/Maximum Lifting Height | 140/1810mm |
| Electrical Supply – 3 Phase | Motor 380 – 415V, 3kW |
| Operation | Electro-Hydraulic |
| Air Supply | 8 Bar |
| Warranty | 24 Months |

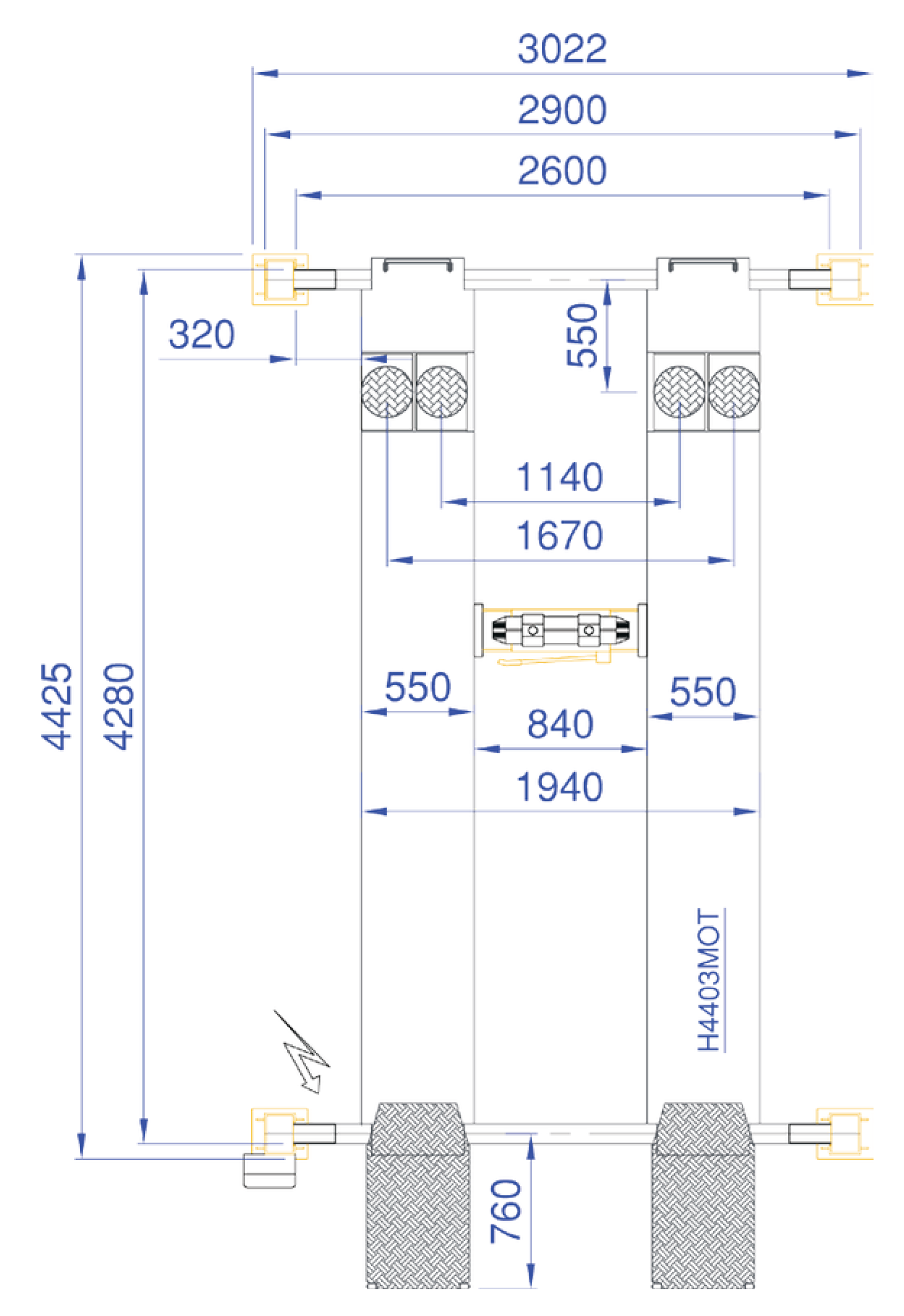

Drawing
Optional Extras
- 500 platform extension
- Run on ramps for other applications
- Jacking Beams & Air Kits
- Gemlight 320 LED Lighting Kit
