Miracle A9 Edge Auto Key Cutting Machine

£3850.00 + VAT

P/No. : miraclea9edgeauto

Lease From £20.88 Per Week
Click Here for Details

Miracle A9 Edge Auto Key Cutting Machine

Miracle A9E Auto can cut single-sided keys, laser keys, automobile keys and also other sophisticated keys like tibbe keys, tubular keys, dimple keys and domestic keys ( with the additional Optional purchase jaws), with CNC technology applied for more accurate and fast production of keys.

Now with a Microsoft Surface Go Tablet and much quieter operation!

This is the newest version in the A9 line, replacing the A9 Special and A9 Premium.

Miracle A9 EDGE Features

Supplied as standard with a 10" touch screen tablet. Also availale without (see price below)
LED lights support night work.- Equipped tool tray stores tools easily.
Key production log and customer management function are added.
Supports powerful and stable key production with 27W, 24DC motor.
Using both decoder and cutter simultaneously makes key measurement and duplication faster without replacing tools.
Noise reduction with low-vibration design.
Supports key data upgrade via Wi-Fi wireless network.
Provided manually operating function allows producing remote control keys possible.
Using Ball-screw and LM guide applied to Z-axis provides more accurate and powerful cutting force.
Touch screen with faster CPU enables quick response.
Embedded Bluetooth allows wireless operation with the exclusive tablet.
10” Touch screen eases operating the device.
LED lights support night work.
Automatic Key Measurement - Automatically measures the thickness, position of tip and center of a key. (Automatically corrects error in measurements)

Includes

AC Adapter
Power Code
USB Cable
Cutter 2mm - 2 pcs
Probe - 2 pcs
T-wrench 2.5mm
Bolt M4 - 2 pcs
Stopper
Stopper Right-to-Left
Auxiliary Clamp - 3 pcs
Calibration Bar
Tool Holder
Spindle Belt - 6 pcs
HU66 Clamp
Space Bar
Instruction manual
Brush
Mounting Bracket
Back Bracket
Ground wiring
*Tablet not included. The machine can be purchased with a tablet below.

Technical Specifications

Size: 276mm(W) x 353mm(H) x 341mm(D)
Resolution: (XY) 0.005mm / (Z)0.00125mm
Spindle motor power: 27W
Power consumption: Stand-by 16W / Cutting 80W
Weight: 19.5Kg
Power: AC 100~240V 50/60Hz

Replaceable Clamps

Automobile key clamp- included with the machine
Single sided key clamp- included with the machine
Dimple key clamp- sold separately
Tubular key clamp- sold separately
Tibbe key clamp- sold separately
SX9 Adaptor- sold separately
Magnum Jaw- sold separately
HU162T Adaptor- sold separately

Cutters and Decoders : Optional Purchase

Miracle Cutter - 2mm
Miracle Cutter - 1.5mm
End Mill Cutter - 1mm
Decoder Probe - 1mm
Decoder MT5+ and Cadnam - 0.5mm
Decoder Dimple for Mul-T-Lock
Cutter Dimple for Mul-T-Lock
Engraving Cutter

Other Clamps and Adapters: Optional purchase

Tibbe Adaptor CP-61
Key Marking Clamp CP-107
Auto Jaw CP-86 1x included in machine
HU66 Adaptor Jaw 1x included in machine
Miracle Stop Guide CP-91 1x included in machine
VA2 Adapter CP-109
CP-110 MIRACLE ADAPTOR CLAMP HU162T

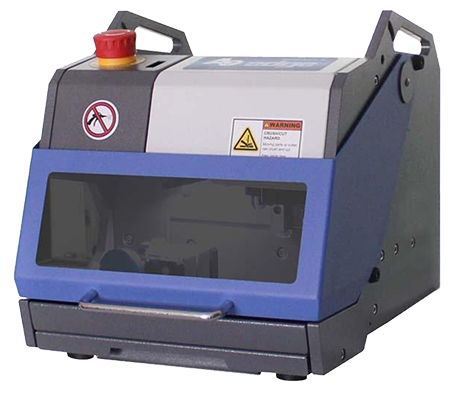

Purchase without a tablet

Can be purchased as a 'lite' version without tablet for use with your own exsisting device.

£3450.00 + VAT

P/No. : miraclea9edgelite

Lease From £18.71 Per Week
Click Here for Details

Ball Screw and LM-Guide Equipped

Supports more accurate and powerful cutting force by equipping ball screw and LM-guide.

Ball Screw and LM-Guide Equipped

Wireless Upgrade via Wi-Fi

Easy to upgrade data using Wi-Fi wireless network.

Wireless Upgrade via Wi-Fi

Manual Operation

Provides manual operation to mill key for special purpose.

Manual Operation

Bluetooth Operation System with Detachable Tablet

It is possible to separate the machine and exclusive tablet and Bluetooth allows wireless key manufacturing system.

Bluetooth Operation System with Detachable Tablet

Replaceable Clamp

Replaceable clamps to support various key production.

Replaceable Clamp

Decoder and Cutter

Easy-to-use “key measurement and duplication” by using both decoder and cutter simultaneously.
Key tip position
Key center position
Key thickness

Automatic Key Measurement

Automatically measures the thickness, position of tip and center of a key. (Automatically corrects error in measurements)

Automatic Key Measurement

Dual Spindle Belt

Guarantees stable spin performance with dual spindle belts.

Dual Spindle Belt

Adjustable Touch Screen Tilt Angle

Adjustable touch screen tilt angle to adapt user’s various working environment such as light reflection and touch angle.

Adjustable Touch Screen Tilt Angle

LED Lights

The bright LED lights support night work and other poor lighting environments.

LED Lights

Optional Household Jaws

Decoder and Cutter

Dimple Key Clamp

Add-on jaw designed for dimple keyway applications.

£260.95 + VAT

P/No. : cp88

Tubular Key Clamp

Add-on jaw designed for tubular key applications.

£129.97 + VAT

P/No. : cp87

Magnum Jaw

Jaw turns 14 degrees left and right for Dimple cutting. This adjustable clamping system permits the 14 degree tilt needed for the cutting of Yale Superior.

£247.35 + VAT

P/No. : cp104

Magnum Kit

Jaw turns 14 Degrees Left and Right for Dimple cuts. This adjustable clamping system permits the 14 degree tilt needed for the cutting of Yale Superior.

Includes Adaptor, 1.5mm cutter, Dimple cutter and Dimple decoder

£380.00 + VAT

P/No. : cp104a
