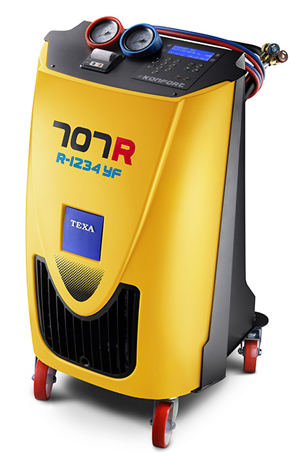

Texa Konfort 707R Air Conditioning Station
Texa Konfort 707R (R1234yf) Air Conditioning Station
Click Here for Details
Simple but effective for all operations involving R1234yf refigerant
The Konfort 707R is TEXA’s latest recharge and maintenance station for vehicle air conditioning systems. It is designed and made for maximum simplicity and effectiveness in servicing systems filled with the new R1234yf refrigerant, mandatory within the European Community since January 2011 and now increasingly common.
Though basic and easy to use, the Konfort 707R recharge station boasts extremely advanced design solutions. It is fully automatic in functioning and guarantees excellent efficiency and safety. This innovative recharge station stands out from the competition for its exceptional characteristics.
It incorporates a Dehydrator Filter that lets you perform up to 300 recharges, a scales locking system to avoid loss of calibration between operations, and an intuitive alphanumeric keyboard that is far easier to use than the classic cursor type interface.
Other important features of the Konfort 707R are its convenient height and its 4 castoring wheels, designed to let you perform all tasks with ease. The Konfort 707R also records the services it performs and can provide details of all past maintenance operations.
- Compatible with R1234yf
- High visibility, 4x20 character, blue backlit LCD screen
- DATABASE and service management by SD card
- 10 kg tank
- Single stage vacuum pump
- Charging accuracy +/- 15gr
- High efficiency refrigerant recovery (over 95%)
- Scales locking system
- Automatic oil injection (timed function)
- Automatic maintenance service management
- Multi-language software
- Automatic compensation for length of recharging lines
- Automatic maintenance alarm
- Integrated thermal printer
- Customised Service
- My Database
2 x Automatic Air Conditioning Machines R134a and R1234yf.
Buy both machines to offer a comprehensive service covering both refrigerants.
Texa 705R & Texa 707R
Click Here for Details
Hydraulic System Flushing
In order to guarantee safety and efficiency, it is important that each type of oil and refrigerant are not cross contaminated. TEXA have therefore developed a special automatic flushing function to clean the internal circuits of the service station.
Automatic Leak Detection Management
The KONFORT 700 series units automatically carry out a dual leak detection check. All safety related operations take place automatically in order to eliminate errors.
TEXA operating software conforms to the strictest requirements of accuracy and precision.
Any possible faults or messages are displayed via detailed error messages. TEXA software manages the recovery and service processes, in order to guarantee precession that was previously unknown.
In particular, the automatic procedures assist the operator with repairs on highly sophisticated systems, such as those fitted on the new hybrid vehicles. All models have a removable SD card which allows communication with a Windows PC to update vehicle make and model database, check and certify all services and potential software updates.
|705R||705R OR||707R||710R||712R||720R||760R||760R BUS||770S||780R||744|
|CAR and TRUCK compatible|
|Rotating pressure gauge and display assembly|
|CL1 pressure gauges|
|Fully automatic maintenance management|
|Automatic leak detection|
|Electronic scales for refrigerant weight measurement|
|ATB (Air Tight Bottle) oil anti-contamination system (registered patent)|
|Automatic oil management with electronic scales|
|Timed oil injection|
|Timed UV tracer injection|
|Electronic scales for weighing recovered refrigerant|
|Hybrid vehicle compatible|
|Automatic service management (database)|
|Personal service management (database)|
|FPS (Fan Protection System)|
|Flushing system for refrigerant changes|
|Flushing system for oil changes|
|Refrigerant identifier kit||O||O||O||O|
|KONFORT service reports on SD|
|Print-out of completed services||O||O||O||O||O||O||O||O|
|High visibility TFT colour display|
|High visibility graphic display|
|DATABASE and service management by SD card|
|2 x 12 kg tanks|
|10 kg tank|
|12 kg tank|
|20 kg tank|
|30 kg tank|
|Charging accuracy +/- 10 g|
|Charging accuracy +/- 15 g|
|High efficiency refrigerant recovery (over 95%)|
|Double stage vacuum pump|
|100 l/min single stage vacuum pump|
|Automatic oil tank recognition (registered patent)|
|Scales locking system|
|Functioning modes: DATABASE|
|Functioning modes: PERSONALISED SERVICE|
|Functioning modes: MY DATABASE|
|Automatic compensation for length of recharging lines|
|Automatic maintenance alarm|
|Automatic management of uncondensable product|
|A/C system efficiency testing kit||O||O||O||O|
|Automatic, high precision oil injection|
|Air conditioning system autodiagnosis||O||O||O||O|
|2 manual line control valves|
|Leakage detection kit with forming gas||O||O||O||O||O||O||O||O||O||O|
|Leakage detection kit with forming gas (based on Mercedes specifications)|
|Automatic metering of refrigerant release|
|Automatic monitoring of C02 concentration in atmosphere|
Refrigerant Identifier Kit
A solution which automatically identifies the refrigerant on behalf of the operator when using R134a and R1234yf refrigerants. This kit ensures that incorrect or contaminated refrigerant is not recovered into the KONFORT service station.
