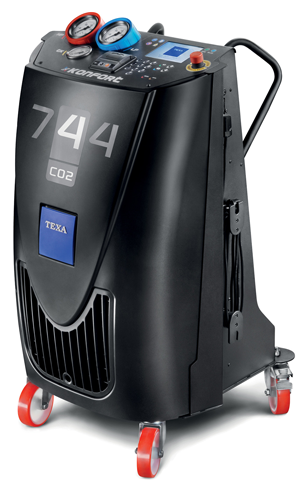

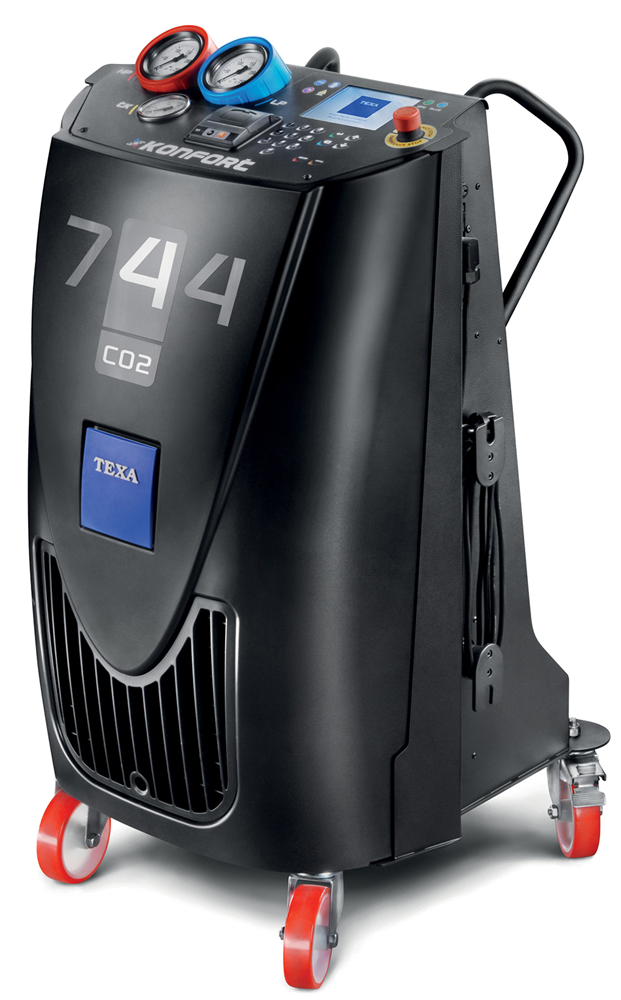

Texa Konfort 744 Air Conditioning Station
Texa Konfort 744 Air Conditioning Station
Click Here for Details
The KONFORT 744 is the perfect solution for servicing and recharging the new CO2 air conditioning systems.
These new systems are intended to minimise pollution and to reduce the risk of fire in the event of leaks, and are radically different in design from previous generations of recharge station that used R134a and R1234yf refrigerants. In particular, because the new systems are designed to function at high pressures, dedicated recharge stations are needed to work with them.
The KONFORT 744 implements a range of innovative solutions and differs from the other models in the KONFORT Series for the fact that it is designed and made specifically for use with the latest A/C systems that use R744 (CO2) as refrigerant.
Despite its advanced design, however, the KONFORT 744 is just as easy to operate as its more conventional counterparts dedicated to R134a and R1234yf refrigerants. The station is fully automatic and able to complete the recharge cycle without any assistance from the operator.
It also achieves the highest possible levels of precision. In fact, the quality of its components and the accuracy of its design permit recharging to be completed to a maximum tolerance of only 10 grams (2 grams for oil).
Special attention has also been paid to the system for releasing CO2 into the atmosphere. Release takes place in a controlled manner to ensure the safety of the operator and of the system itself. The KONFORT 744 also incorporates an accurate system for measuring the concentration of CO2 in the surrounding air, and suspends charging if this approaches a dangerous level.
- Compatible with R744 refrigerant (CO2)
- High visibility TFT colour display
- CL1 pressure gauges
- Double stage vacuum pump
- Hoses 2.5 m
- Charging accuracy +/- 10 g
- Hermetically sealed, anti-contamination oil tanks (patent pending)
- Automatic, high precision oil injection
- Automatic oil tank recognition (patent pending)
- Automatic metering of refrigerant release
- Automatic monitoring of atmospheric CO2 concentration
- Scales locking system
- Thermal printer
- Automatic maintenance service management
- Multi-language software
- Automatic compensation for length of recharging lines
- Automatic maintenance alarm
- Personalised Service
- My Database
The operating software conforms to the strictest standards for precision and accuracy. Thanks to an extensive network of sensors, TEXA software can identify refrigerant types and perform recharging operations with unprecedented precision.
Automatic procedures help operators to service the most sophisticated systems, like those found on the latest hybrid vehicles, for example.
Removable memory (SD cards) can be used with all models to communicate with a Windows PC, to check and certify maintenance operations, and to upgrade software when necessary.
Exclusive Standard Solutions
Hermetically Sealed. Rechargeable Oil Tanks
Standard tanks are not sealed and therefore inevitably contain a certain amount of air. The water molecules contained in this air bond with the oil and contaminate it. TEXA’s solution to this problem is to use special, patented tanks that are sealed to prevent contamination of the oil by air and humidity. TEXA’s special tanks can be recharged again and again, thanks to a special device that eliminates all the remaining air before refilling.
Special Automatic Leakage Detection for CO2
The 744 automatically checks for leaks in the vehicle’s air conditioning circuit before it starts the recharge cycle. Leaks can also be traced using a special leakage detection system based on forming gas, a mix of 95% nitrogen and 5% hydrogen. An external sniffer can be used to locate leaks easily.
The recharge station incorporates a thermal printer to provide detailed reports on all the operations performed.
|705R||705R OR||707R||710R||712R||720R||760R||760R BUS||770S||780R||744|
|CAR and TRUCK compatible|
|Rotating pressure gauge and display assembly|
|CL1 pressure gauges|
|Fully automatic maintenance management|
|Automatic leak detection|
|Electronic scales for refrigerant weight measurement|
|ATB (Air Tight Bottle) oil anti-contamination system (registered patent)|
|Automatic oil management with electronic scales|
|Timed oil injection|
|Timed UV tracer injection|
|Electronic scales for weighing recovered refrigerant|
|Hybrid vehicle compatible|
|Automatic service management (database)|
|Personal service management (database)|
|FPS (Fan Protection System)|
|Flushing system for refrigerant changes|
|Flushing system for oil changes|
|Refrigerant identifier kit||O||O||O||O|
|KONFORT service reports on SD|
|Print-out of completed services||O||O||O||O||O||O||O||O|
|High visibility TFT colour display|
|High visibility graphic display|
|DATABASE and service management by SD card|
|2 x 12 kg tanks|
|10 kg tank|
|12 kg tank|
|20 kg tank|
|30 kg tank|
|Charging accuracy +/- 10 g|
|Charging accuracy +/- 15 g|
|High efficiency refrigerant recovery (over 95%)|
|Double stage vacuum pump|
|100 l/min single stage vacuum pump|
|Automatic oil tank recognition (registered patent)|
|Scales locking system|
|Functioning modes: DATABASE|
|Functioning modes: PERSONALISED SERVICE|
|Functioning modes: MY DATABASE|
|Automatic compensation for length of recharging lines|
|Automatic maintenance alarm|
|Automatic management of uncondensable product|
|A/C system efficiency testing kit||O||O||O||O|
|Automatic, high precision oil injection|
|Air conditioning system autodiagnosis||O||O||O||O|
|2 manual line control valves|
|Leakage detection kit with forming gas||O||O||O||O||O||O||O||O||O||O|
|Leakage detection kit with forming gas (based on Mercedes specifications)|
|Automatic metering of refrigerant release|
|Automatic monitoring of C02 concentration in atmosphere|
