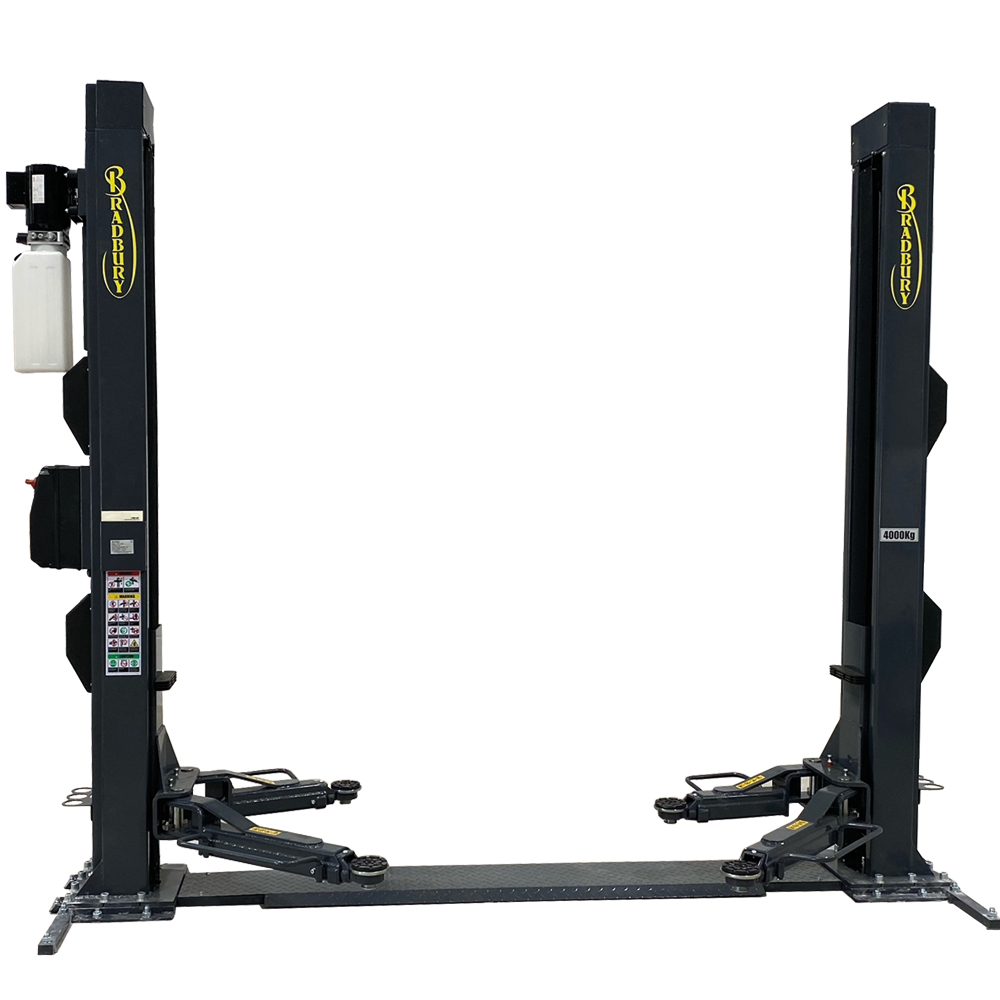

Bradbury H2403B 2 Post Vehicle Lift
Bradbury H2403B 2 Post Vehicle Lift
The Bradbury H24B series of two post lifts are electro-hydraulically operated and are suitable for lifting most cars and small vans. With a low pad height of just 95mm and screw adjustable lifting pads, this lift is very versatile.
Available in both single and three phase.
£4295.00 + VAT
P/No. : brah2403b
Technical Specification
| Lifting Capacity | 4000kg |
| Lifting/Lowering Time | 50 seconds / 50 Seconds |
| Minimum Height (pad) | 95mm - 140mm |
| Maximum Height | 1805mm - 1850mm |
| Front Minimum/Maximum Arm Lengths | 635mm / 1072mm |
| Rear Minimum/Maximum Arm Lengths | 850mm / 1462mm |
| Motor size 3 Phase | 1.8kW |
| Motor size 1 Phase | 1.5kW |
| Power Requirements | 1 phase – 20a Isolator Required / 3 phase – 16a Isolator Required |
| Operation | Electro-hydraulic |
