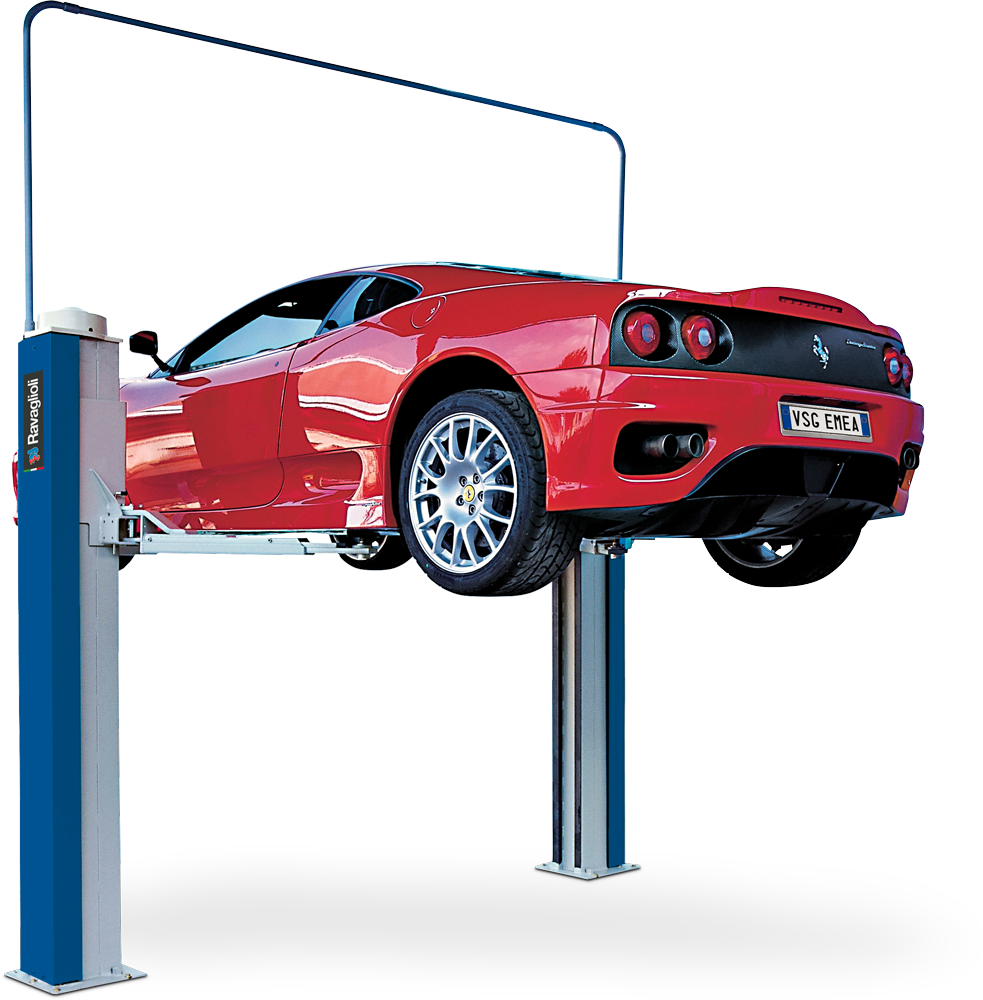

Ravaglioli KPX337 Baseless 2 Post Lifts

Ravaglioli KPX337 Baseless 2 Post Lifts

Ravaglioli KPX337 Baseless 2 Post Lifts

A high quality European designed and built electro mechanical baseless 2 post lift with superior features.

The twin motor baseless design gives a clear floor ideal for access with mobile equipment, a small cable tube above ideal for smaller height buildings.

The long life nut and screw design has automatic lubrication and gives years of cost free operation.

The lift has 3200kg lifting capacity, triple arm extension, asymmetric design with a low 95mm pick up.

  • 3200KG Lifting Capacity
  • Automatic and permanent nut lubrication system to guarantee efficient lubrication during lifting and descent.
  • CE approved lift with low voltage controls.
  • Specially manufactured high efficiency motors.
  • Main nut made of bronze (no plastic) with high resistance to wear, for greater safety.
  • Steel high resistance rolled screw to provide long life.
  • Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor with selflocking conical design.
  • The electromechanical synchronisation keeps the carriages within an alignment of 20 mm.
  • Tubular structure made of 5 robot welded sections, nothing sturdier in the world.
  • Three - stage short arms for asymmetric lifting of large vehicles. Min. pad height 95 mm. (not 337LWR)
  • Extra low profile arms, parallel to the floor. Double thread pads with a min. height of 80 mm only. (337LWR only)


£3865.00 + VAT
P/No. : ravkpx337wk
£3895.00 + VAT
P/No. : ravkpx337lwk
£4513.00 + VAT
P/No. : ravkpx337lwr

Call us now on 01823 328530 for more details
