Isotech by Dama HIEQ1350 5T 2 Post Lift

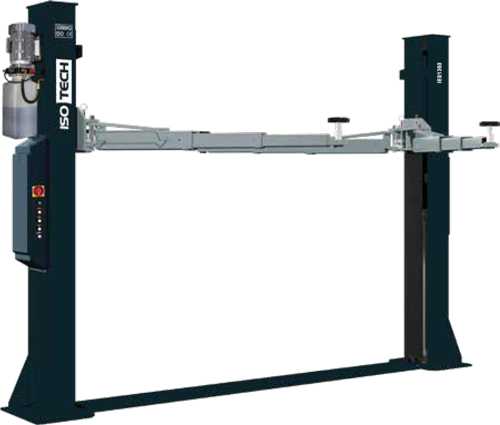

Dama HIEQ1350 5T 2 Post Lift
Building on the success of the HDM5.0t/1 and the /2, this 5T lift has been developed and honed to offer a superb lift for garages that need to carry out repairs on 4x4s, larger vans & motorhomes. The semi base design offers a small cover between posts. Needing no overhead bars the lift is completely clear above which is ideal for working on varying sizes of vehicle and also perfect for garages with restricted height. All backed by our 2 year parts and warranty. The HIEQ1350 has triple extending arm that have an impressive reach from 900mm to 1800mm on each arm and pick up pads that start at 100mm and adjust to 160mm.
Available in single and 3 phase
Price includes delivery and installation.
Features
- 5t lifting capacity
- Electro hydraulic operation
- Semi base design
- Triple extended arms 900mm to 1800mm
- 4028mm overall width
- Lifting time 60 seconds
- Lifting range 110mm-1900mm
Technical Specification
| Maximum Lifting Weight | 5000Kg |
| Power Source | 400V / 3ph 3.0Kw 200V / 1ph 2.2kw |
| Warranty | 24 Months |

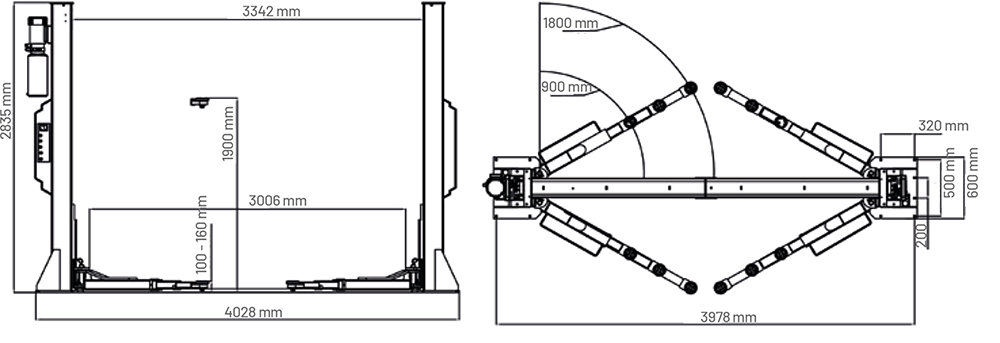

Drawings
Downloads
Call us now on 01823 328530 for more details
