Dama HDM4.2TN Narrow 2 Post Lift
Dama HDM4.2TN Narrow 2 Post Lift
Based on the successful HDM4.2T 4.2tonne 2 post lift, this new HDM4.2TN narrow version is ideal to fit into small bays, narrow spaces or to replace older smaller lifts.
With an outside of post measurement of only 3000mm it is one of the narrowest on the market but retains the 4t lifting capacity. The flexibility of having four triple extending arms means the lift achieves jacking points on the maximum range of vehicles.
Price includes delivery and installation.
To Order - Call NOW on 01823 328530
Features
- 4.2T capacity
- Small drive over floor frame
- Electro-hydraulic operation
- Electronic locking system
- Twin cylinder & chain system
- 4 x triple stage arms for greatest flexability
- Single & 3 phase
- 24 months warranty
- Includes 4 x 70mm extensions
Technical Specification
| Maximum Lifting Weight | 4200Kg |
| Lifting Time | 45 secs |
| Lowering Time | 45 secs |
| Power Source | 230V / 1ph / 50Hz / 2.2KW 400V / 3ph / 50Hz / 2.2KW |
| Warranty | 24 Months |

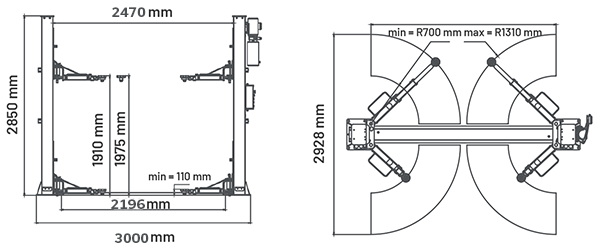

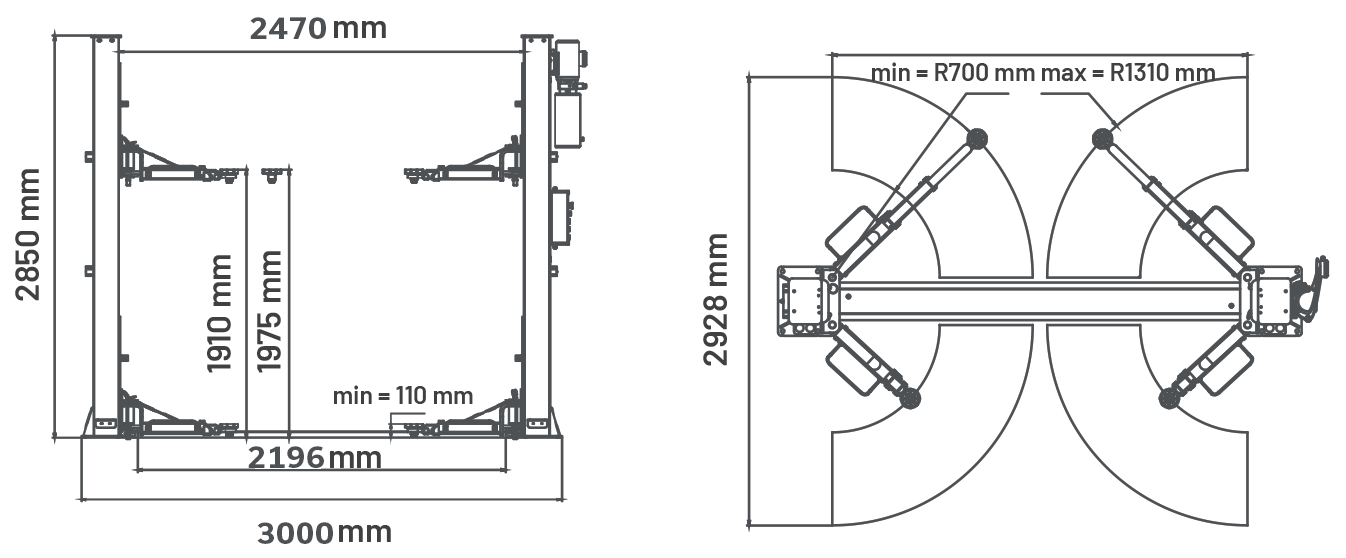

Drawings
Downloads
Call us now on 01823 328530 for more details
