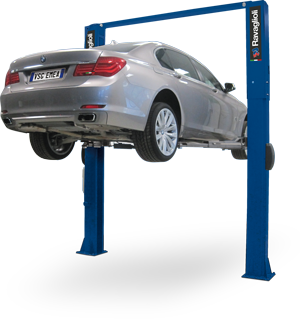

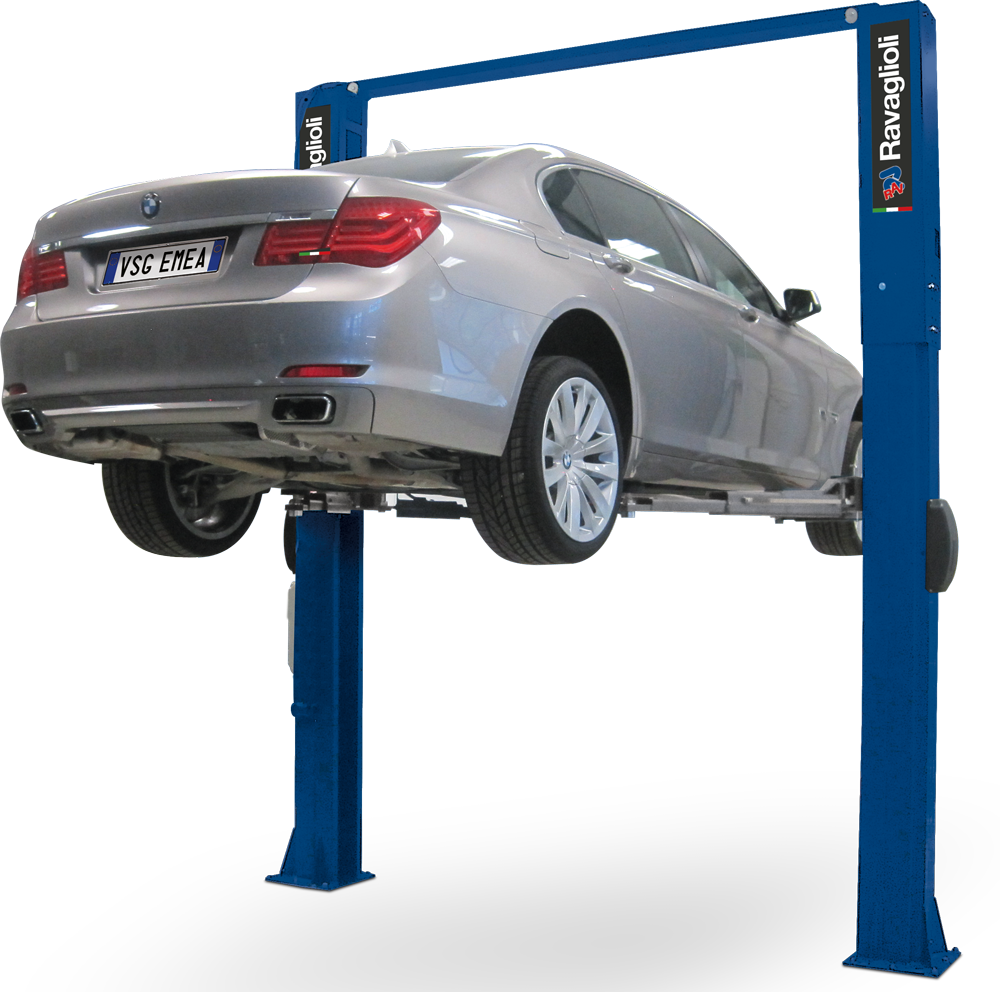

Ravaglioli KPH370 2 Post Lifts

A high quality European designed and built electro hydraulic baseless 2 post lift with excellent features.

The Gantry baseless design gives a clear floor ideal for access with mobile equipment with a high cross beam at 4065mm.

KPH370.45LIK 4.5T
KPH370.50LIK 5T
KPH370.55LIKTA 5.5T
KPH370.70LIKTA 7T
Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
Automatic arm locking during lifting and automatic unlocking when the arms reache the floor.
Synchronization cables grant the levelling of the two carriages.
Each column features a maintenance-free lifting cylinder.
Adjustable height.
When vehicle is lifted, piston shaft is exposed to damage. The piston is hidden for long life and low operation costs.
Very low pad, adjustable height.
Pulley protected inside the column.
Specially manufactured high efficiency motors.
Laser cut carriages and arms - robot welding.
Easy to adjust cables.
Exclusive 10+8 bending design to ensure max resistance to load.

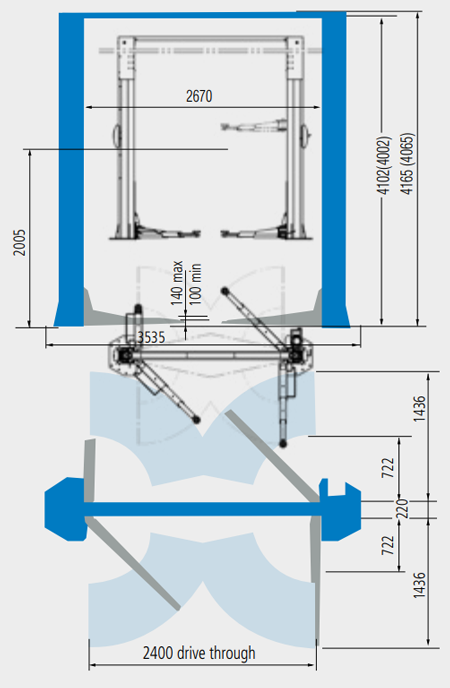

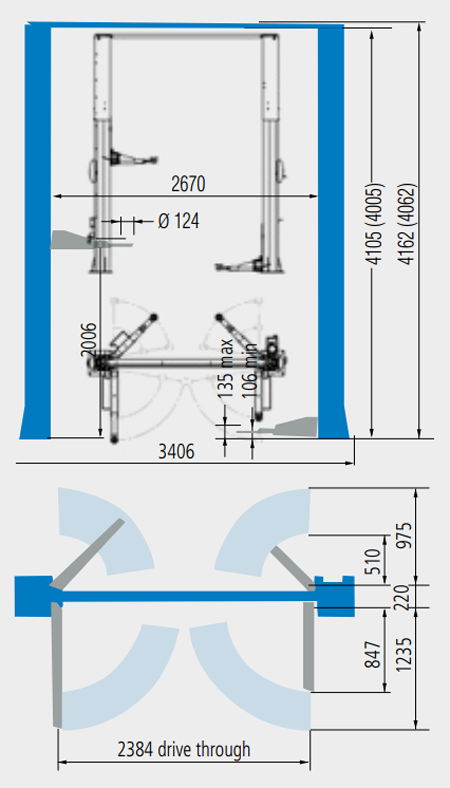

Models KPH370.45LIK and KPH370.50LIK equipped with four long three-stage arms: ideal to lift long wheel base vans and easy loading of cars.

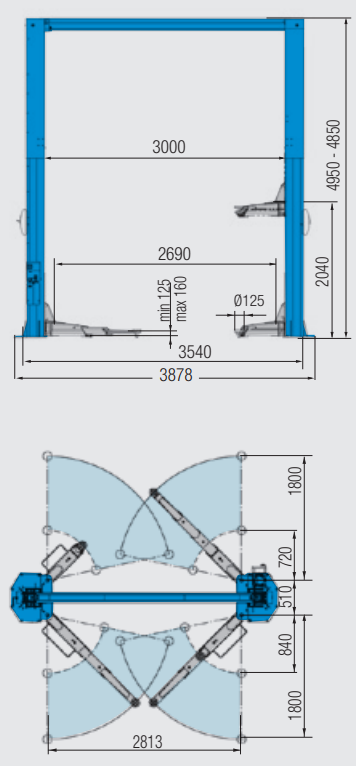

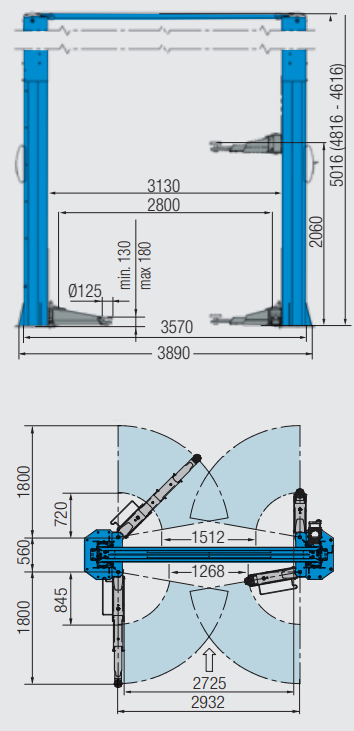

Models KPH370.55LIKTA and KPH370.70LIKTA ideal to lift long wheel-base vans like Mercedes Sprinter and VW Crafter. Models equipped with two long 3-stage arms and two long 4-stage arms, to allow easy lifing of large cars.
